4 Flute 45°Helix Carbide End Mill

4 Flute 45°Helix Carbide End Mill
4 Flute 45°Helix Carbide End Mill
Request a Quote
Application

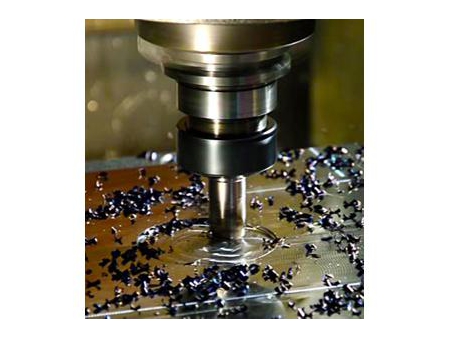

The 45°carbide 4 flute milling cutter mainly used in milling machines for flat surfaces, side surfaces, groove shaping, and workpiece cutting.

Function

milling and cutting

Material

carbide (hard metal)

Parameters
Shank Diameter mm (D1) Tolerance(mm)
Less than 10 0-0.002
More than 10 0-0.0025
Length Cutter Diameter mm (D) Shank Diameter mm (D1) Flute Length mm (L1) Overall Length mm (L)
Standard 1 4 3 50
1.5 4 4 50
2 4 5 50
2.5 4 6 50
3 4 8 50
3.5 4 10 50
4 4 11 50
1 6 3 50
1.5 6 4 50
2 6 5 50
2.5 6 6 50
3 6 8 50
3.5 6 10 50
4 6 11 50
5 6 13 50
6 6 15 50
7 8 17 60
8 8 20 60
10 10 25 75
12 12 30 75
14 14 35 100
16 16 40 100
18 18 40 100
20 20 40 100
Stretched 4 4 20 75
6 6 25 72
7 8 25 75
8 8 30 75
4 4 25 100
6 6 30 100
8 8 35 100
10 10 40 100
12 12 45 100
8 8 40 150
10 10 50 150
12 12 50 150
16 16 70 150
18 18 80 150
20 20 80 150
