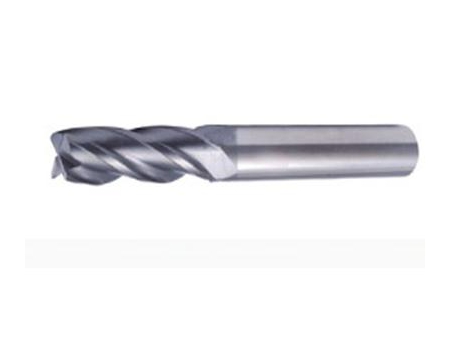

3 Flute 55°Helix Carbide End Mill
Request a Quote
Application

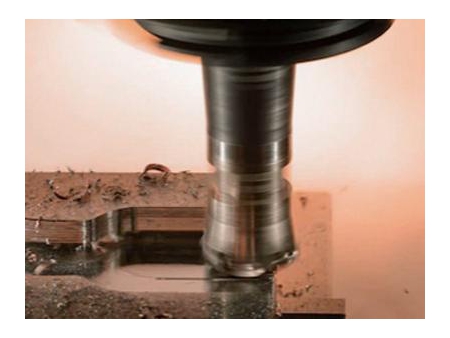

The 55°carbide 3 flute end mill mainly used in milling machines for flat surfaces, side surfaces, groove shaping, and workpiece cutting.
Function
milling and cutting
Material
carbide (hard metal)
Parameters
Shank Diameter mm (D1) | Tolerance(mm) |
Less than 10 | 0-0.003 |
More than 10 | 0-0.004 |
Length | Cutter Diameter mm (D) | Shank Diameter mm (D1) | Flute Length mm (L1) | Overall Length mm (L) |
Standard | 1 | 4 | 3 | 50 |
1.5 | 4 | 4.5 | 50 | |
2 | 4 | 6 | 50 | |
2.5 | 4 | 7 | 50 | |
3 | 4 | 8 | 50 | |
4 | 4 | 11 | 50 | |
5 | 6 | 13 | 50 | |
6 | 6 | 15 | 50 | |
7 | 8 | 18 | 60 | |
8 | 8 | 20 | 60 | |
9 | 10 | 23 | 75 | |
10 | 10 | 25 | 75 | |
11 | 12 | 18 | 75 | |
12 | 12 | 30 | 75 | |
16 | 16 | 40 | 100 | |
20 | 20 | 40 | 100 | |
Stretched | 4 | 4 | 16 | 75 |
5 | 6 | 20 | 75 | |
6 | 6 | 25 | 75 | |
8 | 8 | 30 | 75 | |
4 | 4 | 20 | 100 | |
5 | 6 | 25 | 100 | |
6 | 6 | 30 | 100 | |
8 | 8 | 35 | 100 | |
10 | 10 | 40 | 100 | |
12 | 12 | 45 | 100 | |
8 | 8 | 40 | 150 | |
10 | 10 | 50 | 150 | |
12 | 12 | 50 | 150 | |
16 | 16 | 70 | 150 |
