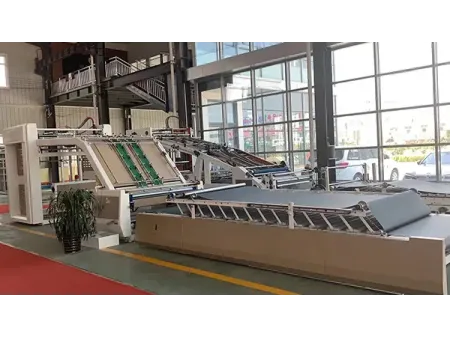

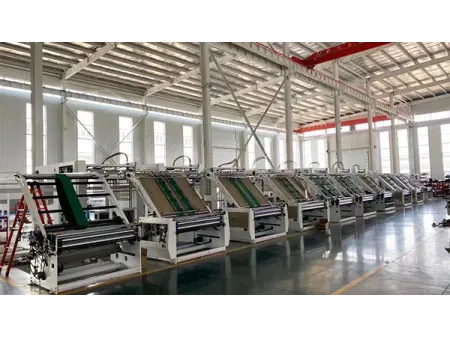

Automatic Cardboard Laminating Machine, CZYL-ALM

Request a Quote

Website: http://corrugatedline-en.com/4-1-automatic-cardboard-laminating-machine.html

Carton Box Machinery

Designed for high-speed production, the automatic cardboard laminating machine combines full computer control with precision handling of boards up to 12 mm thick. Its intelligent system reduces manual work, ensures accurate lamination, and delivers performance up to 3 times faster than conventional laminators.

Features

Fully Automated Control
Computerized system adjusts settings automatically once paper length and width are entered via the user-friendly interface.

Advanced Positioning
Replaces traditional front-and-rear positioning with servo compensation, ensuring real-time tracking and accurate alignment.

High-Speed Productivity
Fixed spacing between front and rear plates maximizes machine space utilization, achieving 2–3 times the output of standard laminators.

Time-Saving Operation
Eliminates complex manual adjustments, significantly reducing setup time.

Accurate Paper Correction
Equipped with photoelectric sensors and servo motor for automatic front-and-rear paper correction.

Quiet Transmission
Imported synchronous belt drive system with low-noise design ensures stable and smooth running.

Automatic Glue Replenishment
Integrated glue module prevents glue shortage or waste.

Reliable Base Paper Handling
Servo motor with suction belt transmission and pneumatic pressure adjustment maintains lamination quality even when paper is warped.

Specifications

Model	YL-1300A-Ⅲ	YL-1450A-Ⅲ	YL-1550A-Ⅲ	YL-1600A-Ⅲ
Max. laminating size (mm)	1300×1250	1400×1250	1500×1250	1600×1250
Min. laminating size (mm)	400×400	400×400	400×400	400×400
Laminating speed (sheets/min)	0-100	0-100	0-100	0-100
Laminating accuracy (mm)	±1.5	±1.5	±1.5	±1.5
Power (kW)	10	12	12	12
Machine dimensions (L×W×H) (m)	13.5×2×2.4	13.5×2.05×2.4	13.5×2.15×2.4	13.5×2.25×2.4
Machine weight (ton)	Approx. 4.8	Approx. 5	Approx. 5.2	Approx. 5.4
Base cardboard thickness (mm)	< 12 (A/B/C/E flute, 3/4/5 layer)
Surface paper thickness (g/m²)	150-600

Machine Composition

Feeder System

High-precision high-speed feeder ensures smooth and stable paper feeding.
Reinforced feeder device with adjustable suction nozzle angle, adaptable to different types of surface paper.

Electrical System

Main electrical components use imported brands.
PLC tracking technology with automatic fault detection.

Pressure Regulation System

Single-side pressure adjustment ensures equal pressure on both sides.
Equipped with a pressure gauge display for easy adjustment when changing paper sizes.

Pressure Conveying System

Floating-type pressure design eliminates the need to adjust the flatbed pressure.
Heightened design ensures smooth operation with thick corrugated cardboard.
