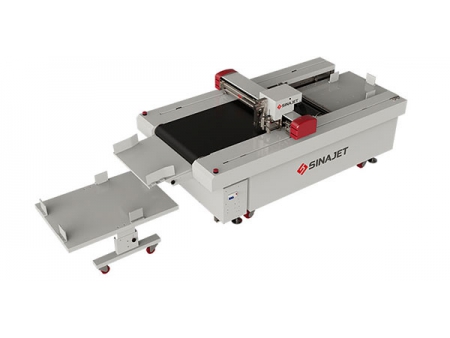

Digital Cutting Table

Digital Cutting Table
Digital Cutting Table
Digital Cutting Table
Request a Quote
  • Acrylic
  • Aluminum Composite
  • POP Display Recycle Board
  • PVC Sheet Forex
  • Gasket Materials

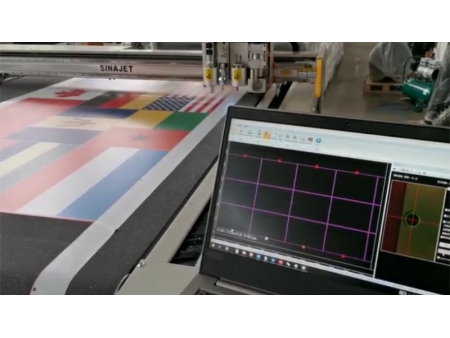

  • Textiles Banners Fabric

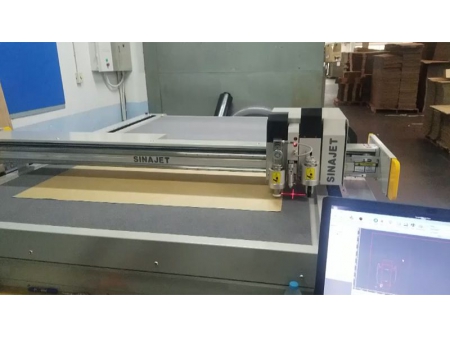

  • 3-Layer Corrugated Sheet Cutting

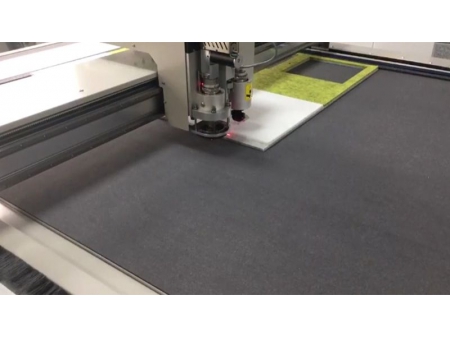

  • Felt Panel Cutting

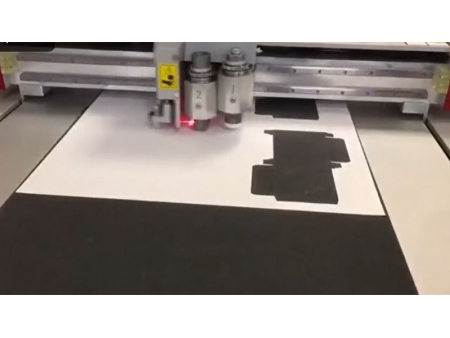

  • Paper Box Cutting

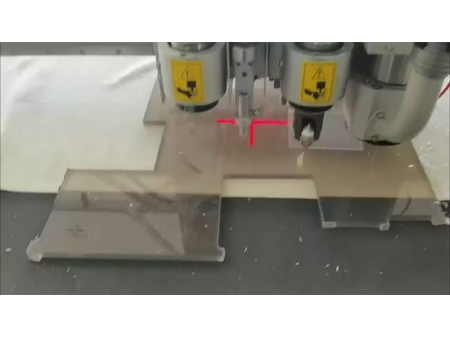

  • 1cm Acrylic Cutting

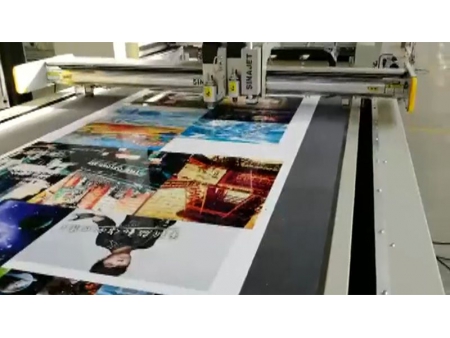

  • Banner Material Cutting
  • PP Paper Cutting
  • Card Paper Cutting

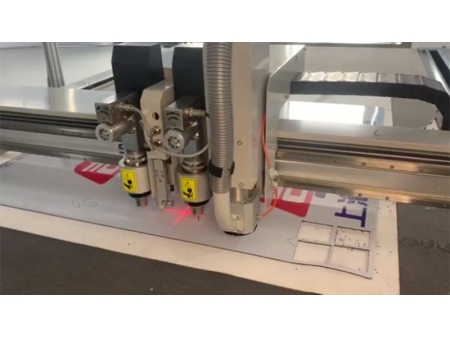

  • Aluminum Composite Panel Cutting
  • KT Board Cutting
Options

There are two models available to meet different needs. Those models vary from the cutting area (L*W). Customized machine model can be offered upon request.

DF0604 : 600*400mm
  • Tools: cutting knife, CCD, plotting pen, creasing wheel
  • Cutting thickness: ≤2mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker

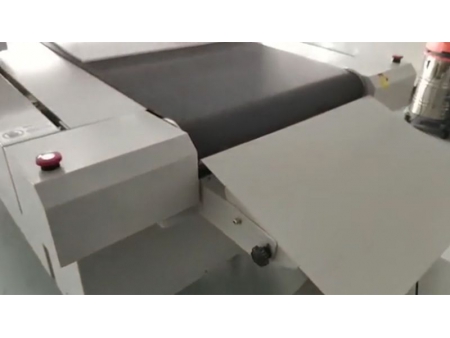

  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DF0906 : 900*600mm
  • Tools: cutting knife, CCD, plotting pen, creasing wheel
  • Cutting thickness: ≤2mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker
  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
Options (MT Series)
DF0604-MT : 600*400mm
  • Tools: drag knife, CCD, kiss cutting tool, creasing wheel, cutting knife, plotting pen (oscillating knife and rotary knife are optional)
  • Cutting thickness: ≤10mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker, expanded PVC, foam board, ABS board, grey paper board, corrugated cardboard, and various reflective materials
  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DF0906-MT : 900*600mm
  • Tools: drag knife, CCD, kiss cutting tool, creasing wheel, cutting knife, plotting pen (oscillating knife and rotary knife are optional)
  • Cutting thickness: ≤10mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker, expanded PVC, foam board, ABS board, grey paper board, corrugated cardboard, and various reflective materials
  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
DF1007-MT : 1000*700mm
  • Tools: drag knife, CCD, kiss cutting tool, creasing wheel, cutting knife, plotting pen (oscillating knife and rotary knife are optional)
  • Cutting thickness: ≤10mm (depending on material to be cut)
  • Applicable material: PP paper, cardstock paper, self-adhesive sticker, expanded PVC, foam board, ABS board, grey paper board, corrugated cardboard, and various reflective materials
  • Material feeding: conveyor table
  • Material hold-down: vacuum clamping
  • Data reading: barcode or QR code reading
  • Cutting speed: 1000mm/s
  • Repeatability: ≤0.1mm
  • File format: DXF/ HPGL/ CUT/ ISO/ PLT/ PDF/XML
  • Interface: LAN
  • Voltage: 220V
  • Pump power: 1.5KW/2.2KW
  • Working environment: temperature 0-40℃; humidity 20%-80%RH (non-condensing)
