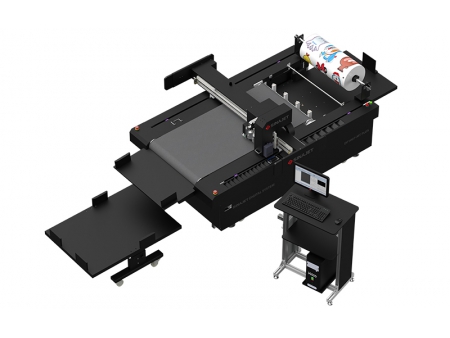

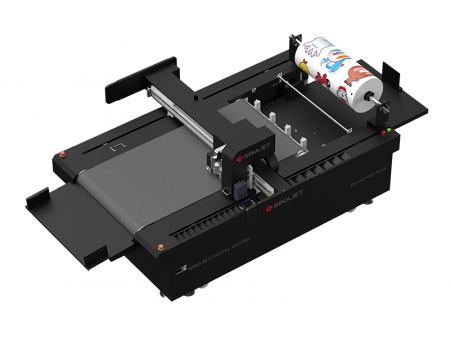

Digital Cutter with UV Spot Varnishing
Request a Quote
- Aluminum Composite
- POP Display Recycle Board
- PVC Sheet Forex
- Gasket Materials
- Textiles Banners Fabric
Digital cutter with UV spot varnishing is designed to meet the small-batch, multi-layout production needs of the printing and packaging industry. It enables fully automated handling of both roll and sheet materials - including feeding, UV spot varnishing, cutting, and collecting - without any operator intervention. With a single operation, the printing and cutting system significantly enhances the customization and added value of standard products, delivering higher efficiency and improved production output.
Technical Parameters
| Model | DF1007-MT plus (integrated with UV spot varnishing function) |
| Active cutting and printing size (L*W) | 1000*700mm |
| Machine size (L*W*H) | 4000*1745mm*1260mm |
| Mechanical transmission system | Rack and pinion |
| Cutting tools | Drag knife, crease wheel, RCT, PRCT, TCC |
| Optional cutting tools | Oscillating knife, active circular knife, V cut, kiss-cut |
| Positioning method | CCD imaging |
| Printing heads | Industrial print head (Ricoh G5) |
| Max. Cutting thickness | ≦10mm (varies by material) |
| Varnishing thickness | 0.1-0.8mm |
| DPI resolution | 600dpi x 600dpi |
| Ink supply system | Automatic ink supply system |
| Negative pressure system | Automatic negative pressure regulation |
| Print head maintenance method | Automatic cleaning |
| Ink type | Flexible UV Ink |
| Curing method | LED UV light curing |
| Material feeding method | Conveyor |
| Material adsorption method | Vacuum adsorption |
| Max. printing speed | 1000mm/s |
| Max. cutting speed | 1400mm/s |
| Cutting/printing repeated accuracy | ±0.1mm |
| Cutting file format | DXF, HPGL, CUT, ISO, PLT, PDF, XML, AI |
| Printing file format | BMP |
| Data transmission method | LAN |
| Cutter voltage | AC 220V, 50-60Hz |
| Cutter power | 2.45kW |
| Printing system power | 650W |
| Vacuum power | 2.2kW |
| Air compressor power | 1.0kW |
