Black Double Layer Self-closing Wrap
Request a Quote
IS2445
- Material: Polyester (PET)
- Color: Black (outer) / Orange (inner)
- Operating Temperature: −40°C to 150°C
- Melting Point: 240 ±10°C
- Flame Retardancy: <100 mm/min (FMVSS 302)
- Abrasion Resistance: Grade 8, >200,000 cycles
- Impact Resistance: ≥50 J (based on LV 312)
- Cutting Method: Hot cutting
Now

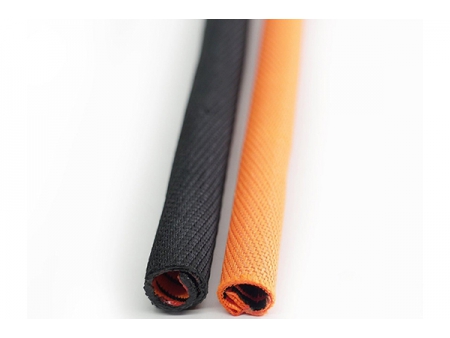

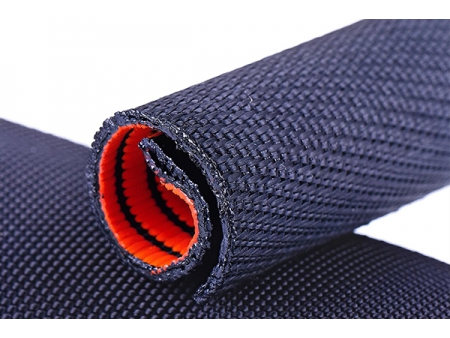

IS2445 series is a high-performance dual-layer self-closing wrap designed for superior protection. Its unique PET dual-layer construction provides excellent abrasion and impact resistance, while the bright orange inner layer allows for quick wear identification.
Applications
This self-closing wrap is commonly used in low-voltage automotive applications, particularly for fuel pipeline protection.
Certifications
Parameters
| Model | Diameter (mm) | Application Range (mm) | Thickness (mm) | Packaging Length (m/reel) | Item Code |
|---|---|---|---|---|---|
| 8 | 6~8 | 1.8±0.2 | 100 | GPC-008 | |
| 10 | 9~11 | 1.8±0.2 | 50 | GPC-010 | |
| 13 | 12~14 | 1.8±0.2 | 50 | GPC-013 | |
| 16 | 15~17 | 1.8±0.2 | 50 | GPC-016 | |
| 19 | 18~21 | 1.8±0.2 | 50 | GPC-019 | |
| 25 | 22~28 | 1.8±0.2 | 25 | GPC-025 |
Available in custom cut lengths.
Custom sizes available upon request.
Custom sizes available upon request.
For detailed information, please download the product datasheet.
