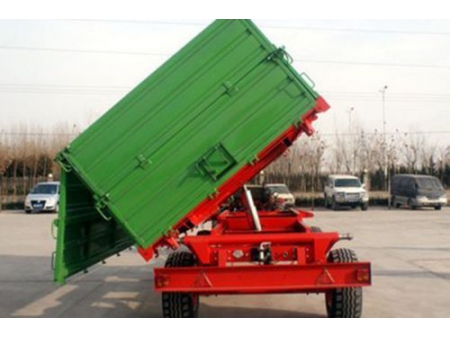

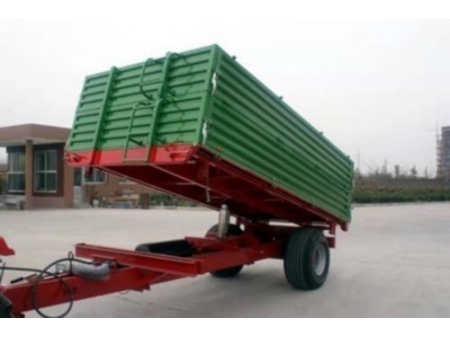

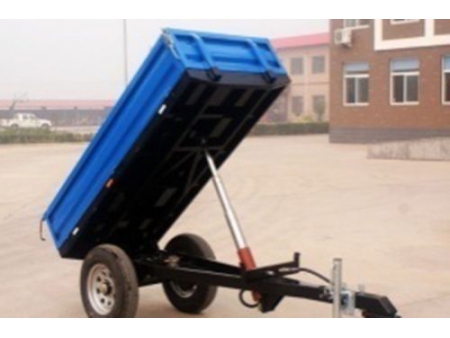

Dump Trailer / Agricultural Trailer
Request a Quote
View All: http://ytocorp.com/7-5-dump-trailer.html
7CX-1/7CX-2/7CX-3.5/7CX-5/7CX-8
Features
The dump trailer with high load capacity is easy to use and maintain. It is particularly designed for heavy-duty transportation work.
Specifications
| Model | 7CX-1 | 7CX-2 | 7CX-3.5 | 7CX-5 | 7CX-8 |
| Load weight (kg) | 1000 | 2000 | 3500 | 5000 | 8000 |
| Load capacity (m³) | 0.66 | 1.73 | 2.7 | 8.6 | 8.8 |
| Dimensions (L*W*H) (mm) | 2900*1050*970 | 3700*1660*1400 | 4800*1790*1810 | 5020*1990*1855 | 5830*2200*2260 |
| Cargo dimensions (L*W*H) (mm) | 2000*1000*330 | 2500*1500*460 | 3400*1700*460 | 3610*1810*（460 460） | 4010*2060*（550 550） |
| Brake type | Air brake | Air brake Parking brake | |||
| Linkage | Fixed | ||||
| Dumping form | Rear dump | 3-side dump | 2- or 3-side dump | ||
| Number of telescopic cylinders | 3 | 4 | |||
| Dumping angle (˚) | 45 | ||||
