Multifunctional Autonomous Vehicle Manufacturer

Multifunctional Autonomous Vehicle

Request a Quote

View All: http://electrical-vehicles.com/4-2-multifunctional-autonomous-vehicle.html

Our Hercules series of multifunctional autonomous vehicles are a game-changing innovation in intelligent transportation for professional industrial logistics and beyond. Equipped with L4 level unmanned driving capability, it revolutionizes the transportation process, visualizing and intelligently solving the high-frequency transportation challenges faced in industrial parks, and creating new opportunities for unmanned transportation. Functionally customizable as express vehicles, logistics vehicles, retail vehicles, security vehicles, and more. The Hercules series is widely used in smart logistics, smart cities, smart ports, smart parks, and various other fields.

General Information

Maximum carrying capacity
1000kg
Driving range per charge
100km
Gradeability (no load)
20%
Battery
lithium iron phosphate battery

Specifications

Dimensions (L×W×H)	3650×1560×1950mm
Vehicle weight	770kg
Maximum carrying capacity	1000kg
Gradeability (no load)	20%
Maximum speed	30km/h
Driving range per charge	100km
Minimum operating temperature	-10℃
Maximum operating temperature	50℃
Working environment	Suitable for standard operating weather such as sunny, rainy, light fog, light haze, etc.
Carriage (L×W×H)	24501100950mm
Maximum carriage height	1140mm
Battery type	Lithium iron phosphate battery
Battery capacity	106Ah×78.6V
Charging method	Battery replacement/manual charging (220V AC)
Charging time	4 hours

Features

Accurate Localization

The Hercules series has all-weather high-precision mapping and localization capabilities that do not rely on GPS, and boasts strong self-correction capabilities.
Stable Output

With the fusion capability of multi-sensing solutions, the Hercules series ensures high stability for pedestrian and vehicle recognition results.
Intelligent Planning

Based on intelligent vehicle scene recognition through multi-sensor fusion, the Hercules series has the planning ability to respond to different scenes.
Multiple Operating Modes

Supporting multiple driving modes like unmanned driving and remote driving, the Hercules series covers all real-world working conditions.

Gallery

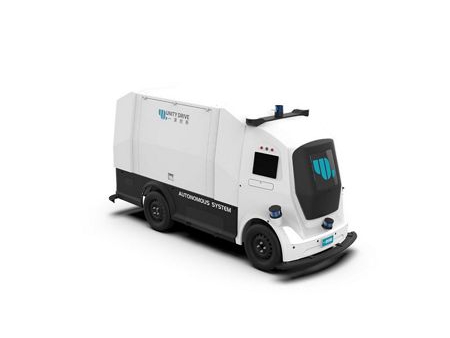

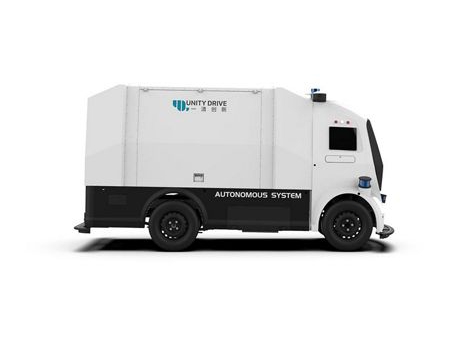

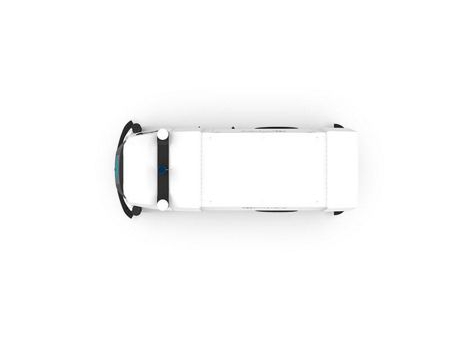

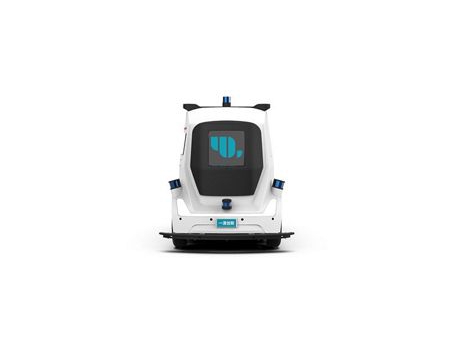

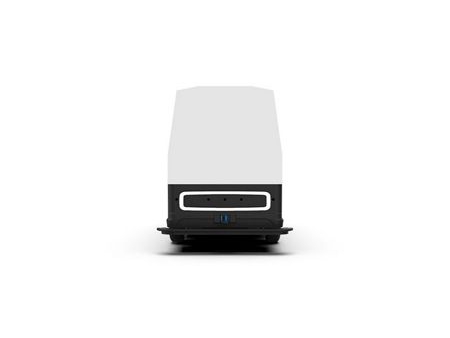

UDI Hercules Autonomous vehicle
Autonomous patrol car
Used as autonomous delivery vehicle
Used as autonomous cargo vehicle

Practical Uses Across Industries

Foxconn

Our Hercules autonomous vehicles successfully tackled the complex logistics challenge posed by Foxconn's 5-square-kilometer facility. After passing over 700 tests in 17 months, we were selected for an exclusive commercial cooperation qualification. Our vehicles can seamlessly connect to the factory's internal intelligent system, enabling unmanned transportation of finished products. Additionally, our solution is compatible with the factory's existing pallets, resulting in lower operating costs.
Shennan Circuits Company

We helped Shennan Circuits Company establish an information platform for the digital industrial park, facilitating the integration of industrialization and digitalization. Our Hercules autonomous vehicles and AGVs were seamlessly integrated into the park's intelligent system, resulting in fully unmanned delivery in outdoor areas. This successful implementation of a 5G smart park benchmark project and unmanned industrial park transformation has set the bar high for industrial digitalization. By replacing manual tow trucks with unmanned vehicles and diesel tow trucks with new energy vehicles, we helped Shennan Circuits Company reduce its carbon footprint.
Quarantine Hotels

In response to the COVID-19 pandemic, we tackled the challenges of transportation and delivery within quarantine hotels. Our autonomous vehicles offered a fully unmanned delivery process, ensuring there was no transmission route for the virus during transportation. We connected our vehicles to the hotel system and were able to deliver up to 250 meals per trip, without any human contact. This allowed us to take on the workload of at least 3-4 workers and keep people safe while ensuring the delivery of essential services during the pandemic.
