Pneumatic Tyred Roller (Full Hydraulic Roller, Model KP266)
Features
1. As a full hydraulic roller, our KP266 pneumatic tyred roller adopts SAUER hydraulic driving system, which can achieve stepless speed regulation and enhance the compaction effects to better meet the road construction requirements.
2. This pneumatic road roller is configured with a powerful DEUTZ engine and a maintenance-free battery cell.
3. Our pneumatic tyred roller looks elegant with a streamlined appearance and an upturning engine hood.
4. The road compaction machine' counter weight and ground pressure can be adjusted by increasing or reducing the weight of ballast or by changing the tyre pressure.
5. Pneumatic hydraulic braking, full hydraulic braking and dry braking are available to this heavy engineering vehicle.
6. Our pneumatic tyred roller has a safe and reliable pressure water sprinkling system with multi-level water filters.
7. The cab with air conditioner, double operation devices and comfortable seat creates a comfortable working environment for the operator.
| Item | Unit | Parameter |
| Operating mass (Min. / Max.) | kg | 26000 |
| Ground pressure | kPa | 250-420 |
| Compaction width | mm | 2750 |
| Speed I | km/h | 0-7 |
| Speed II | km/h | 0-14 |
| Gradeability | % | 20 |
| Turning radius | mm | 9000 |
| Swing distance of front tyre | mm | ±45 |
| Overlap between front & rear tyre | mm | 50 |
| Min. ground clearance | mm | 290 |
| Engine model | - | DEUTZ |
| Rated power | kW | 129 |
| Tyre size (smooth) | - | 11.00-20 |
| Tyre number (front/rear) | - | 5/6 |
| Overall dimensions (L×W×H) | mm | 5200×2845×3380 |
Remark: Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.

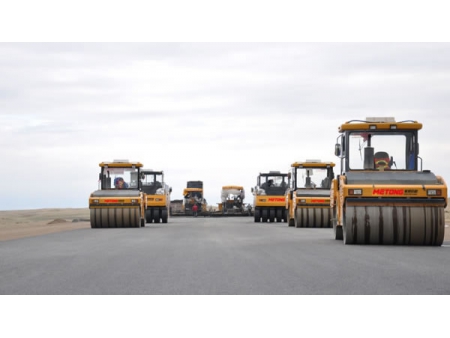

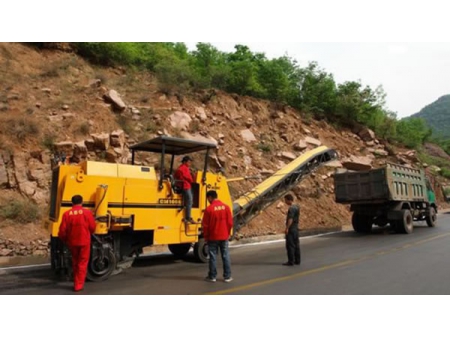

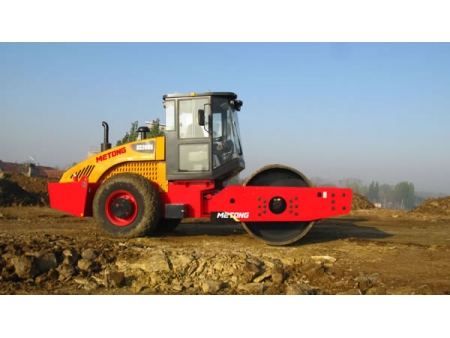

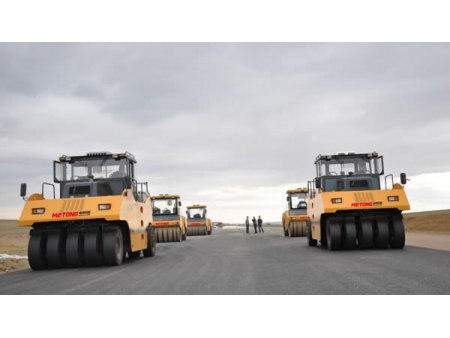

Pictures of Construction Cases

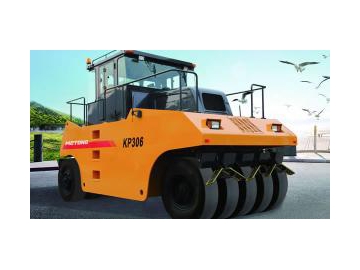

- You can adjust the road compactor's counter weight and ground pressure by increasing or reducing the weight of ballast or by changing the tyre pressure.
- Hydraulic vibration with large centrifugal force makes for high-density compaction and the partition design of the steering wheel results in better compaction effects.

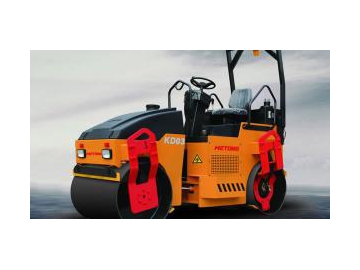

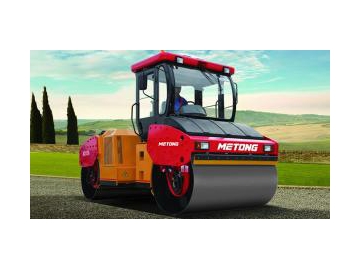

- Both drums of the road compacting equipment are driven to work by hydraulic motor and the CVT system makes the entire double drum vibratory roller easy to control.
-
-

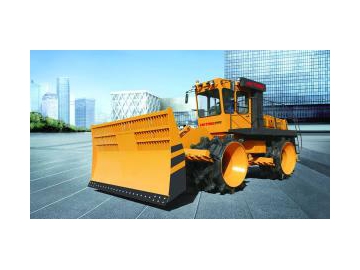

- Our landfill compactor is a four-wheel-drive engineering vehicle with hydraulic torque converter and power shift transmission gearbox. With three forwards gears and three backwards gears, this trash disposal equipment works well in landfills.
