Pneumatic Tyred Roller (Full Hydraulic Roller, Model KP306)
Features
1. The KP306 pneumatic tyred roller is a full hydraulic roller equipped with powerful DEUTZ engine and maintenance-free battery cell.
2. Streamlined styling and upturning engine hood makes the road roller look beautiful.
3. The SAUER hydraulic driving system with stepless speed regulation function helps improve the compaction effects and enable our pneumatic tyred roller to better meet the road construction requirements.
4. You can adjust the road compactor's counter weight and ground pressure by increasing or reducing the weight of ballast or by changing the tyre pressure.
5. A reliable water sprinkling system with multi-level water filters is configured to our pneumatic tyred roller.
6. This heavy engineering machinery supports pneumatic hydraulic braking, full hydraulic braking and dry braking.
7. The operator will enjoy a good working environment using our road compaction equipment since its cab comes with comfortable seat, double operation devices and air conditioner.
| Item | Unit | Parameter |
| Operating mass (Min. / Max.) | kg | 30000 |
| Ground pressure | kPa | 250-420 |
| Compaction width | mm | 2750 |
| Speed I | km/h | 0-7 |
| Speed II | km/h | 0-14 |
| Gradeability | % | 20 |
| Turning radius | mm | 9000 |
| Swing distance of front tyre | mm | ±45 |
| Overlap between front & rear tyre | mm | 50 |
| Min. ground clearance | mm | 290 |
| Engine model | - | DEUTZ |
| Rated power | kW | 129 |
| Tyre size (smooth) | - | 11.00-20 |
| Tyre number (front/rear) | - | 5/6 |
| Overall dimension (L×W×H) | mm | 5200×2845×3380 |
Remark: Due to continual improvement of technologies, the technical parameters are subject to change without prior notice.

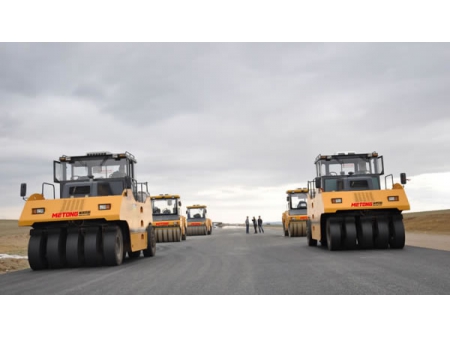

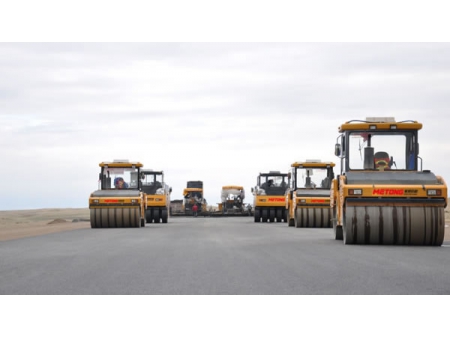

Pictures of Construction Cases

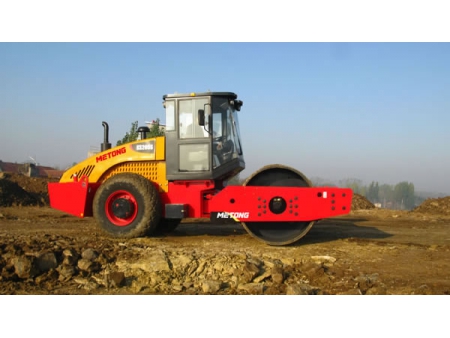

- Hydraulic vibration with large centrifugal force makes for high-density compaction and the partition design of the steering wheel results in better compaction effects.

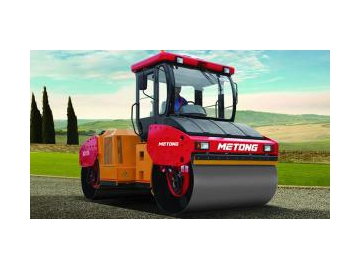

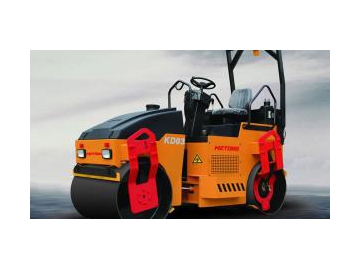

- Both drums of the road compacting equipment are driven to work by hydraulic motor and the CVT system makes the entire double drum vibratory roller easy to control.

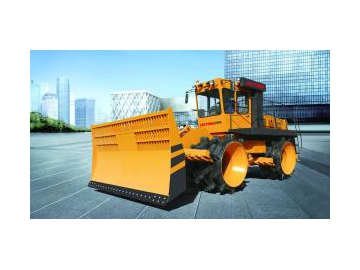

- Our landfill compactor is a four-wheel-drive engineering vehicle with hydraulic torque converter and power shift transmission gearbox. With three forwards gears and three backwards gears, this trash disposal equipment works well in landfills.
-
-

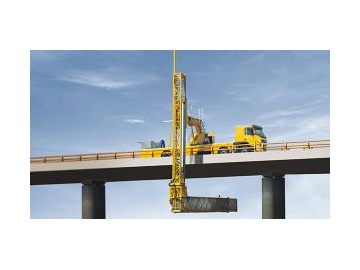

- Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features.
