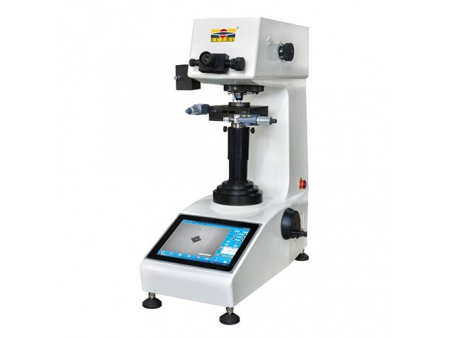

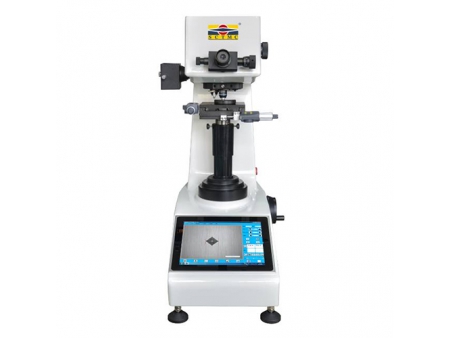

XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera

XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
XHVT-1000Z Micro Vickers Hardness Tester with CCD Camera
Request a Quote

Hardness Testing Machine

Request a quote
  • Test force range: 10gf (0.098N) ~ 1000gf (9.80N)
  • With integrated design of hardness tester and computer, with Windows 7 system, this hardness tester can be connected to external displayer and printer.
  • Automatic regonization and shafting between objective and indenter.

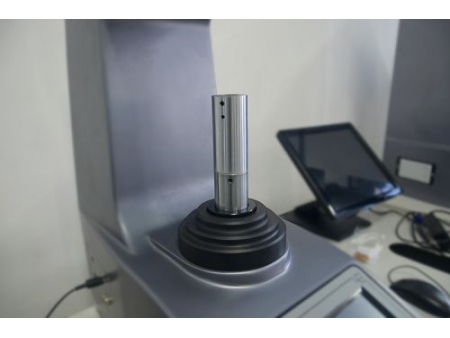

  • The lifting screw adopts worm and gear structure for smooth transmission.

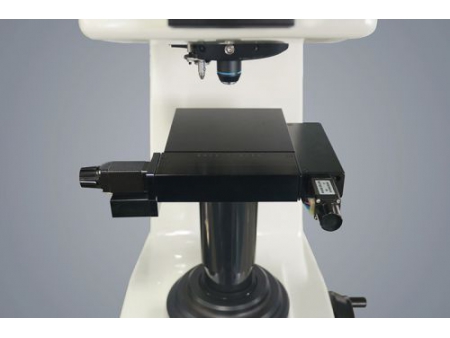

  • Digital test table offers accurate positioning and measuring.
  • This hardness tester comes with manual setting of test force and automatic loading/dwell/unloading of test force.
Request a quote

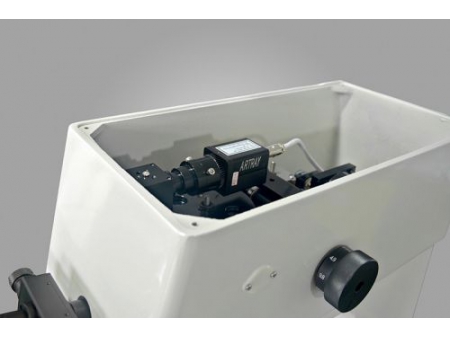

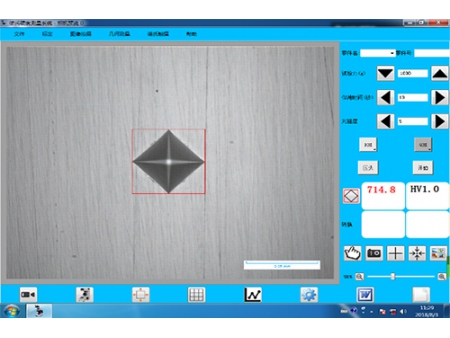

  • Built-in CCD camera offers clear indentation image and automatic hardness measuring.
  • Supports scale conversion.
  • The data is automatically recorded for generating hardness-depth curve.
  • The main body is constructed from cast aluminum, significantly minimizing deformation and ensuring long-term stability.
  • Made from special materials and heat-treated to achieve a hardness of 35-40HRC, the lifting screw is highly wear-resistant. The worm gear and worm structure provide smoother and more stable lifting.

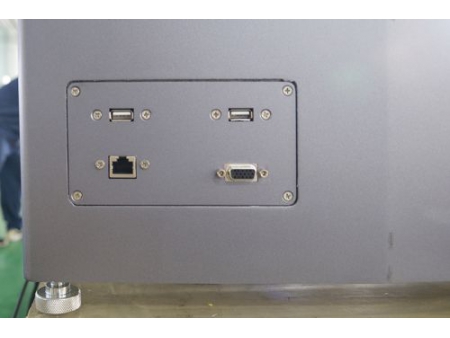

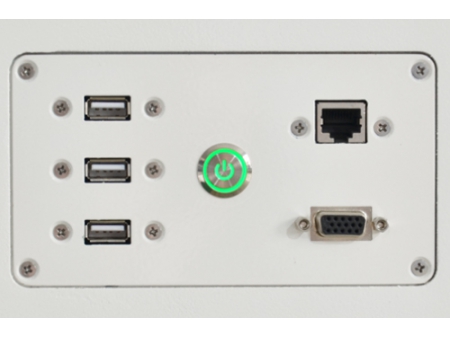

  • Equipped with USB, VGA, and LAN ports, this device can connect to external networks and other devices, offering users a wide range of additional functionalities.
Applications

XHVT-1000Z Micro Vickers hardness tester is suitable for the hardness testing of ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals, and glass, ceramics, agate, precious stones, thin plastics, as well as the depth and trapezium of the carbonized layers and quench hardened layers.

Technical Data
  • Test force: 10gf, 25gf, 50gf, 100gf, 200gf, 300gf, 500gf, 1000gf
    0.098N, 0.246N, 0.49N, 0.98N, 1.96N, 2.94N, 4.90N, 9.80N
  • Test range: 1HV~2967HV
  • Test mode: HV/HK
  • Loading method: automatic (loading/dwell/unloading)

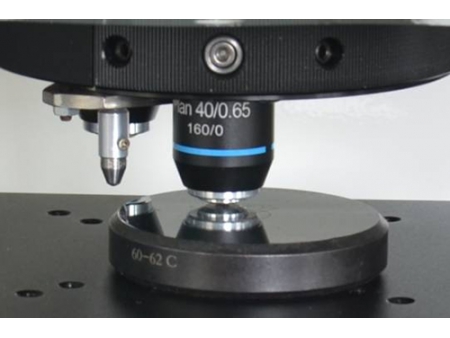

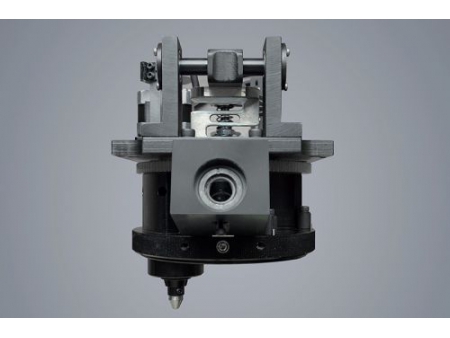

  • Turret: automatic shafting of indenter and objective
  • Micro computer: CPU: Intel I5, memory: 4G, SSD: 240G
  • CCD pixel: 1.3 million
  • Conversion scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
  • Hardness reading: automatic measuring and touch screen displays the indentation
  • Data output: Word or Excel report with curve chart
  • Objective: 10×, 40×
  • Effective field of view: 10×: 680μm, 40×: 170μm
  • Min. measuring unit: 10×: 0.1μm, 40×: 0.025μm
  • Dwell time: 0~60s
  • Light source: Halogen lamp

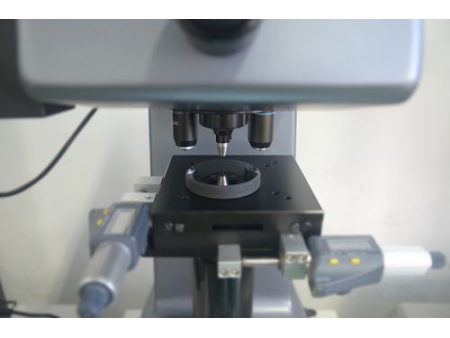

  • X-Y test table: 120×120mm; travel: 25×25mm, resolution: 0.001mm
  • Max. sample height: 170mm
  • Throat depth: 130mm
  • Execute standard: ISO 6507, ASTM E384, JIS Z2244, GB/T 4340.2
  • Dimension: 560×335×675mm
  • Net Weight: 48kg
Optional Accessories
  • Indenter
  • Hardness Test Blocks
  • Flat Anvils
  • V Anvils
  • XY Stages
  • Flat Clamping Shield
  • Thin Sheet Clamping Shield
  • Clamping Table
  • Sample Holders
  • Floor Stand
  • V3.0 Upgraded Version (Fully Automatic Rockwell Hardness Tester)
