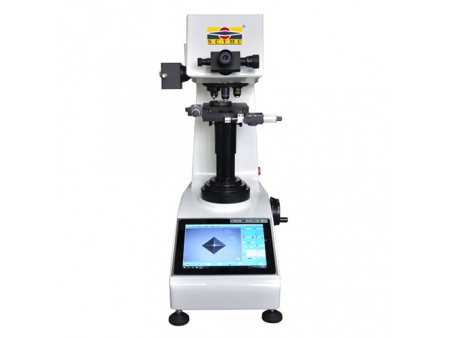

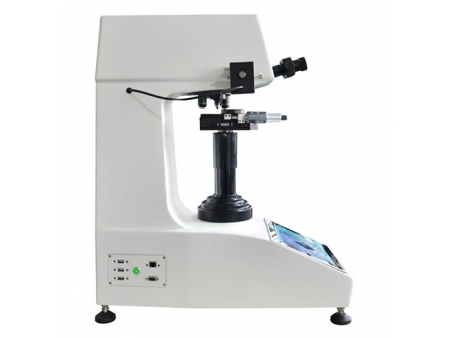

XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera

XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
XHVT-10Z30Z50Z Vickers Hardness Tester with CCD Camera
Request a Quote

Hardness Testing Machine

Request a quote
  • Test force range: 0.2kgf (1.96N) ~ 50kgf (490N)
  • Integrated design of hardness tester and computer, with Windows 7 system, this hardness tester can be connected to external displayer and printer.
  • Touch screen comes with convenient operation, clear and intitute display.
  • The lifting screw adopts worm and gear structure for smooth transmission.
  • XHVT-10Z30Z50Z Vickers hardness tester adopts 3 objectives for measuring, and features automatic regonization and shafting between objective and indenter.
  • Built-in CCD camera offers clear indentation image and automatic hardness measuring.
Request a quote
  • The hardness tester features high measuring precision and stable performance, elinimating manual error.
  • Digital test table offers accurate positioning and measuring.
  • Automatic loading/dwell/unloading of test force
  • Supports scale conversion.
  • The main body is constructed from cast aluminum, achieving 99% rigidity and minimizing deformation
  • Made from a special material and heat-treated to achieve a hardness of 35-40HRC, the screw rod is highly wear-resistant. The worm gear structure ensures smoother elevation
  • The tester automatically records measurement data and can generate hardness-depth curves, which can be saved as Word or Excel reports
  • Equipped with USB, VGA, and network interfaces, allowing users to connect to networks and other devices, providing more functionality and options
Applications

XHVT-10Z30Z50Z Vickers hardness tester is suitable for the hardness testing of ferrous metals, non-ferrous metals, IC thin sections, coatings, ply-metals, and glass, ceramics, agate, precious stones, thin plastics, as well as the depth and trapezium of the carbonized layers and quench hardened layers.

Technical Data
  • Test force: XHVT-10Z:0.2kgf (1.96N), 0.3kgf (2.94N), 0.5kgf (4.90N), 1kgf (9.80N), 2kgf (19.6N), 2.5kgf (24.5N), 3kgf (29.4N), 5kgf (49N), 10kgf (98N)
  • XHVT-30Z:0.3kgf (2.94N), 0.5kgf (4.90N), 1kgf (9.80N), 2kgf (19.6N), 2.5kgf (24.5N), 3kgf (29.4N), 5kgf (49N), 10kgf (98N), 20kgf (196N), 30kgf (294N)
  • XHVT-50Z:0.5kgf (), 1kgf (9.80N), 2kgf (19.6N), 2.5kgf (24.5N), 3kgf (29.4N), 5kgf (49N), 10kgf (98N), 20kgf (196N), 30kgf (294N), 50kgf (490N)
  • Max. sample height: 170mm
  • Test mode: HV/HK
  • Test range: 1HV~2967HV
  • Loading method: automatic (loading/dwell/unloading)
  • Turret: automatic shafting of indenter and objective
  • Micro computer: CPU: Intel I5, memory: 4G, SSD: 240G
  • CCD pixel: 1.3 million
  • Conversion scale: HV, HK, HRA, HRBW, HRC, HRD, HREW, HRFW, HRGW, HRKW, HR15N, HR30N, HR45N, HR15TW, HR30TW, HR45TW, HS, HBW
  • Hardness reading: automatic reading, touch screen displays the indentation
  • Data output: Word or Excel report for curve graph
  • Objective: 10×, 20×, 40×
  • Effective field of view: 10×: 680μm, 20×: 340μm, 40×: 170μm
  • Min. measuring unit: 10×: 0.1μm, 20×: 0.05μm, 40×: 0.025μm
  • Dwell time: 0~60s
  • Light source: Halogen lamp
  • X-Y table: Size: 120×120mm, travel: 25×25mm, resolution: 0.001mm
  • Throat depth: 130mm
  • Execute standard: ISO 6507,ASTM E92,JIS Z2244,GB/T 4340.2
  • Dimension: 560×335×675mm
  • Net Weight: 48kg
Optional Accessories

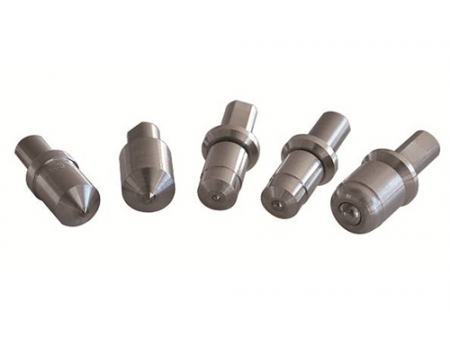

  • Indenter

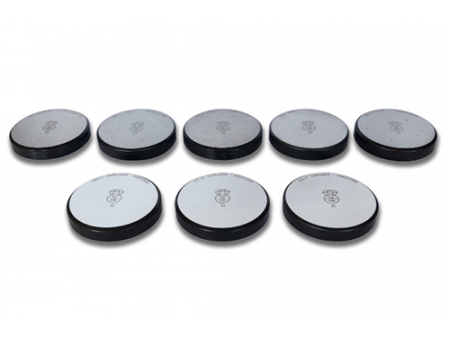

  • Hardness Test Blocks

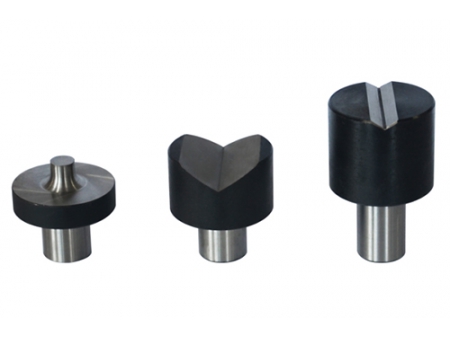

  • Spot Anvils / V Anvils

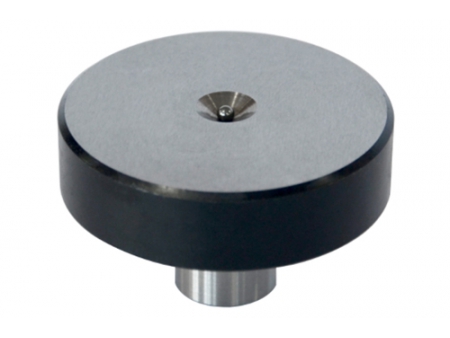

  • Hardness Anvils
  • Floor Stand
  • V3.0 Upgraded Version (Fully Automatic Rockwell Hardness Tester)
