HTC Quick Change Diamond Tools
The HTC quick change diamond tools are widely used for the maintenance, renovation and production of concrete floors.
The diamond blocks on the grinding tools are sintered of different concentrations and ratios of artificial diamond and multi-metal powders under high temperature and high pressure. according to the different hardness of concrete, blocks with different hardness are made that can be used for both rough grinding and fine grinding. The blocks are not easy to drop during use, which possesses high grinding efficiency and long service life.

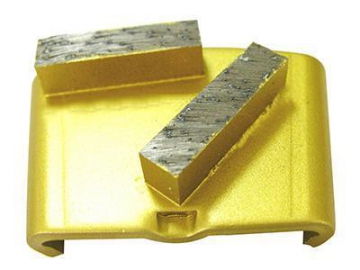

EZ HTC-2, EZ HTC two bar segment in 40x10x10mm height
| Item No. | Bond | Grit |
| EZHTC2S16 | Soft bond | 16/18 grit |
| EZHTC2S30 | Soft bond | 30/40 grit |
| EZHTC2S60 | Soft bond | 60/80 grit |
| EZHTC2S120 | Soft bond | 120/150 grit |
| EZHTC2M16 | Medium bond | 16/18 grit |
| EZHTC2M30 | Medium bond | 30/40 grit |
| EZHTC2M60 | Medium bond | 60/80 grit |
| EZHTC2M120 | Medium bond | 120/150 grit |
| EZHTC2H16 | Hard bond | 16/18 grit |
| EZHTC2H30 | Hard bond | 30/40 grit |
| EZHTC2H60 | Hard bond | 60/80 grit |
| EZHTC2H120 | Hard bond | 120/150 grit |
| EZHTC2EH16 | Extra hard bond | 16/18 grit |
| EZHTC2EH30 | Extra hard bond | 30/40 grit |
| EZHTC2EH60 | Extra hard bond | 60/80 grit |
| EZHTC2EH120 | Extra hard bond | 120/150 grit |

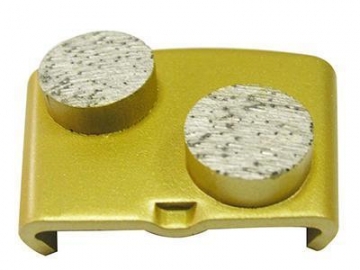

EZ HTC-3, EZ HTC two round segment in D26x10mm height
| Item No. | Bond | Grit |
| EZHTC3S16 | Soft bond | 16/18 grit |
| EZHTC3S30 | Soft bond | 30/40 grit |
| EZHTC3S60 | Soft bond | 60/80 grit |
| EZHTC3S120 | Soft bond | 120/150 grit |
| EZHTC3M16 | Medium bond | 16/18 grit |
| EZHTC3M30 | Medium bond | 30/40 grit |
| EZHTC3M60 | Medium bond | 60/80 grit |
| EZHTC3M120 | Medium bond | 120/150 grit |
| EZHTC3H16 | Hard bond | 16/18 grit |
| EZHTC3H30 | Hard bond | 30/40 grit |
| EZHTC3H60 | Hard bond | 60/80 grit |
| EZHTC3M120 | Hard bond | 120/150 grit |
| EZHTC3EH16 | Extra hard bond | 16/18 grit |
| EZHTC3EH30 | Extra hard bond | 30/40 grit |
| EZHTC3EH60 | Extra hard bond | 60/80 grit |
| EZHTC3EH120 | Extra hard bond | 120/150 grit |

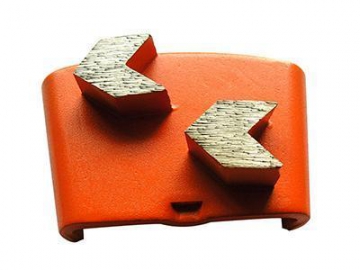

EZ HTC-1, EZ HTC two arrow segment in 10mm height
| Item No. | Bond | Grit |
| EZHTC1S16 | Soft bond | 16/18 grit |
| EZHTC1S30 | Soft bond | 30/40 grit |
| EZHTC1S60 | Soft bond | 60/80 grit |
| EZHTC1S120 | Soft bond | 120/150 grit |
| EZHTC1M16 | Medium bond | 16/18 grit |
| EZHTC1M30 | Medium bond | 30/40 grit |
| EZHTC1M60 | Medium bond | 60/80 grit |
| EZHTC3M120 | Medium bond | 120/150 grit |
| EZHTC3H16 | Hard bond | 16/18 grit |
| EZHTC3H30 | Hard bond | 30/40 grit |
| EZHTC3H60 | Hard bond | 60/80 grit |
| EZHTC3H120 | Hard bond | 120/150 grit |

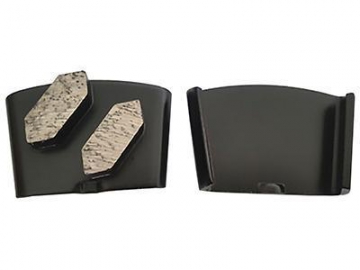

EZ HTC-0, EZ HTC two diamond shape segment 10mm height
| Item No. | Bond | Grit |
| EZHTC0S16 | Soft bond | 16/18 grit |
| EZHTC0S30 | Soft bond | 30/40 grit |
| EZHTC0S60 | Soft bond | 60/80 grit |
| EZHTC0S120 | Soft bond | 120/150 grit |
| EZHTC0M16 | Medium bond | 16/18 grit |
| EZHTC0M30 | Medium bond | 30/40 grit |
| EZHTC0M60 | Medium bond | 60/80 grit |
| EZHTC0M120 | Medium bond | 120/150 grit |
| EZHTC0H16 | Hard bond | 16/18 grit |
| EZHTC0H30 | Hard bond | 30/40 grit |
| EZHTC0H60 | Hard bond | 60/80 grit |
| EZHTC0H120 | Hard bond | 120/150 grit |
| EZHTC0EH16 | Extra hard bond | 16/18 grit |
| EZHTC0EH30 | Extra hard bond | 30/40 grit |
| EZHTC0EH60 | Extra hard bond | 60/80 grit |
| EZHTC0EH120 | Extra hard bond | 120/150 grit |

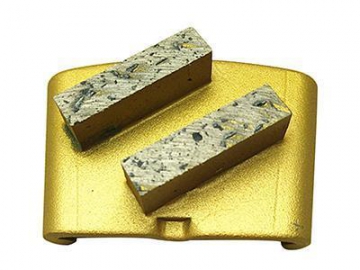

HTC-18 EZ change PCD tooling with PCD chunk
| Item No. | Size |
| HTC-18 | 2 bar segment with PCD split in 40x10x10mm |
HTC-4 EZ change 1/2 PCD +Tungsten point +segment
| Item No. | Size |
| HTC-4-L | EZ change 1/2 PCD+Tungsten point +Diamond segment, left direction |
| HTC-4-R | EZ change 1/2 PCD+Tungsten point +Diamond segment, right direction |

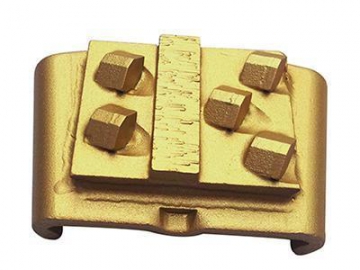

HTC-15 EZ change 5pcs big PCD +Diamond protection segment
| Item No. | Size |
| HTC-15-L | EZ change 5pcs big PCD +Diamond segment, left direction |
| HTC-15-R | EZ change 5pcs big PCD +Diamond segment, right direction |

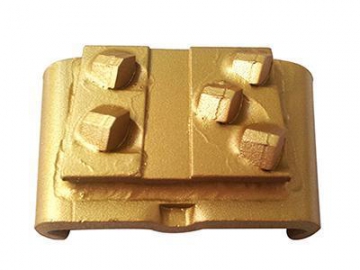

HTC-16 EZ change 5pcs big PCD + no protection segment
| Item No. | Size |
| HTC-16-L | EZ change 5pcs big PCD + no protection segment, left direction |
| HTC-16-R | EZ change 5pcs big PCD + no protection segment, right direction |
LIKN Tools offer a wide range of industrial cutting, drilling, grinding and polishing tools, specialize in manufacturing all kinds of diamond cutting and grinding tools for ceramic tiles, porcelain tiles, concrete floors, marble floor, reinforced plastic composite, etc. With over 20 years' experienced team in making industrial tools, we are offering durable diamond tools with competitive prices.
