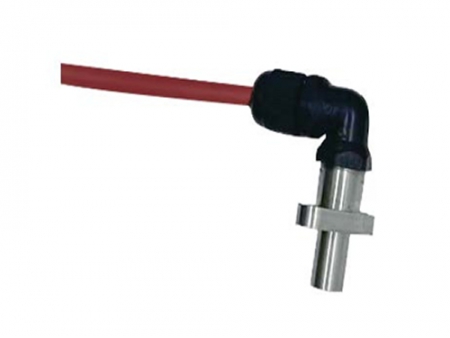

ECVS Series Dual-channel Speed Sensor for Electrically-Conductive Wheels
ECVS series dual-channel speed sensor is based on the principle of eddy current (non-magnetic), it is suitable in conjunction with an aluminum pole wheel (or other conducting, non-magnetic metal) for generating two nominally 90° phase shifted square wave signals indicating the rotary speeds and the direction of rotation.
This dual-channel speed sensor uses light-weight target wheels made of aluminum alloy for its weight-saving construction, and the free-maintenance is ensured since that the measuring surface does not attract magnetic particles such as ferric powder or swarf. The speed sensor is ideal for operation in presence of ferric particles due to non-magnetic measuring system.
Yuanben provide customized and standard speed sensors for automotive, railway, power and industrial applications.
- Maintenance and wear-free operation due to non-contact measurement of rotation
- Safe detection of slow rotation from 0 Hz without pulse loss and for high-speed rotation up to 25 kHz
- Suitable for electrically conducting target wheels
- Two channels shifted by 90° provide the direction of rotation
- Robust and compact stainless steel housing suitable for harsh application
- Simple flange mounting
- Customized cable fittings
- Rail vehicles: traction control, anti-slip, motor speed, anti-skid
- Automation: measurement of speed and positions at gears, motors and roller
| Model | | |
| Electrical Data | ||
| Supply voltage | 10-24VDC | Typical 15VDC (12-30VDC) |
| Power protected | Reverse polarity and over-voltage protected | |
| Current consumption per channel | ≤40 mA (no load) | ≤30 mA (no load) |
| Outputs | PNP or NPN | Push-pull |
| Output signal (short circuit-proof) | Square-wave signal | 2 phase shifted square wave signal |
| Output signal level high | ≥Vs-1.8V | ≥Vs-1.5V |
| Output signal level low | ≤1.5V | < 1.5V |
| Output frequency | 0 to 20 kHz | 0 to 20 kHz |
| Duty (depends on measuring scale and air gap) | 50% ±25% | 50% ±25% |
| Electromagnetic compatibility | Rail vehicles (EN 50121-3-2) Industrial applications (EN61000- 6-1 to 4) | Compliant with EN 50155 |
| Insulation | 500 VAC (EN 60439-1) | 500V/50Hz/1min |
| Mechanical Data | ||
| Module m of target wheel | 2.00/3.00 | Module 3 |
| Width of target wheel | ≥10 mm (smaller ones on request) | Tooth width ≥15 mm Valley deep ≥3 mm |
| Form of target wheel | Involute gear or rectangular gear 1:1 or slotted disk | |
| Material of target wheel | Steel, aluminum (others on request) | |
| Operating temperature | -40℃ to 120℃ | |
| Protection class | IP68 | |
| Housing material of sensor | Stainless steel, front side sealed hermetically | |
| Electrical Connection | ||
| Cable length | 1000 mm | 2000 mm |
