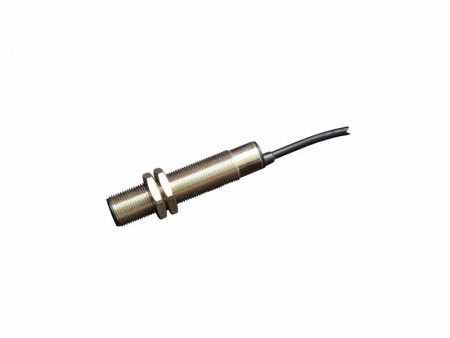

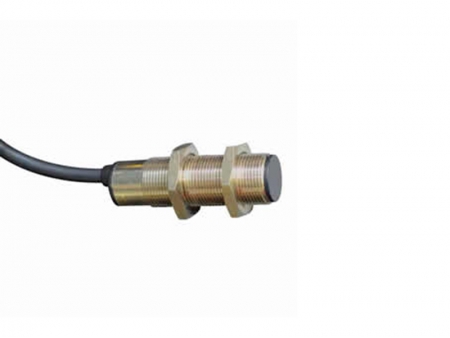

IPS Series Proximity Sensor
Request a Quote
Inductive proximity sensor allows contactless detection of objects, and can be used when the target is metal. It is the most widely used switches in industry sectors including manufacturing, robotics, semiconductor, etc.
Features
- Compact size saves space.
- Indicator lamp can be checked even from the rear.
- Sealed, protection class is IP67.
- Multiple options of dimensions and sensing distance.
- Enhanced circuit protection (surge absorption, load short circuit and reverse connection).
Applications
IPS series proximity sensors are widely used in a number of fields, such as machine, metallurgy, chemical industry, light textile, printing industry, automatic production line equipment.
Technical Parameters
| Model | | |
| DC or AC | AC | DC |
| Dimensions | M14×70 | M12×55 |
| Housing Code | M1470 | M1255 |
| Voltage | 90-250VAC | 5-24VDC |
| Max. Load Current | 200 mA | 300 mA |
| No Load Current | 12 mA | >10 mA |
| Work Air-gap | 2.0 mm | 2.0 mm |
| Sensing Distance FM/NFM(Flush Mount/ Non Flush Mount) | 2.5 mm/5 mm | 2.5 mm/5 mm |
| Voltage Drop at Full Load | >15 VDC | 2.5VDC |
| Working Temperature | -10 to 85℃ | -10 to 85℃ |
| Frequency | 100Hz | 500 Hz |
| Position Indication | LED | LED |
| Cable Length | 1000 mm | 1000 mm |
| Material of Housing | Brass | Brass |
