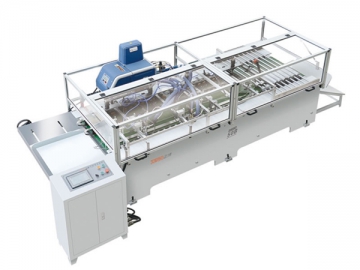

ZB50B Paper Bag Bottom Gluing Machine
The ZB50B paper bag bottom gluing machine is specially designed to glue and seal the bottom of paper bags. When it works, the printed paper bag machine can automatically transport the bottom-unsealed bags to gluing system for automatic bottom gluing and pasting. Then, the bottom glued paper bags will be subject to press processing and output afterwards.
Characteristics
1. This paper bag forming equipment features touch screen operation and precise optical fiber control function.

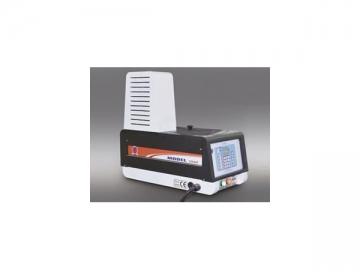

2. The paper packaging bag making machine comes with one gluer with four gluing hose and four spray guns. Due to our self-developed precise motion controller, the spray guns support both separate and simultaneous operation. Furthermore, gluing volume and length can be controlled.
3. This paper bag bottom gluing machine enjoys the advantages of uniform gluing, high precision, fast operation, and wide range of application.
Technical Parameters
| Bottom width | 60-180mm |
| Total power | 5.5kw |
| Machine size (L×W×H) | 4335×1440×1590mm |
| Production speed | 100bags/min |
| Total Weight | 1.5T |
| Glue type | Hot melt glue |

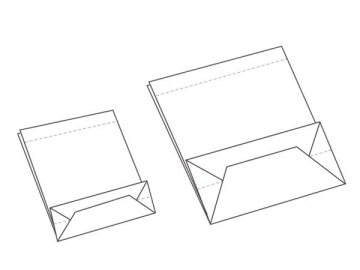

Technological Process

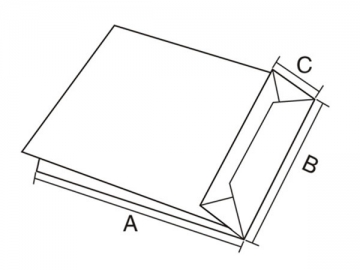

Production Sketch
| A | B | C | |
| Max. Size (mm) | 600 | 450 | 180 |
| Min. Size (mm) | 200 | 200 | 60 |

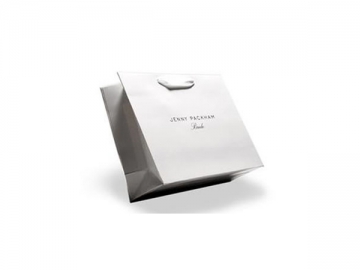

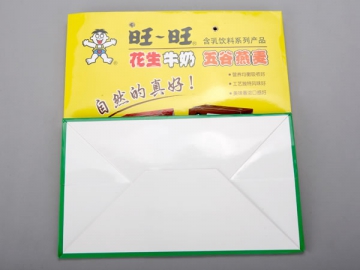

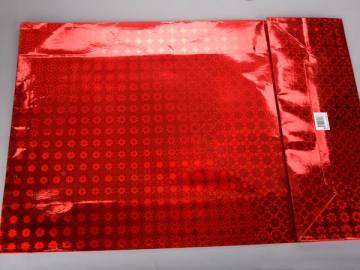

Finished Paper Bag
Suitable paper: Kraft paper, art paper, white board paper, white cardboard (including film adhesive paper)
