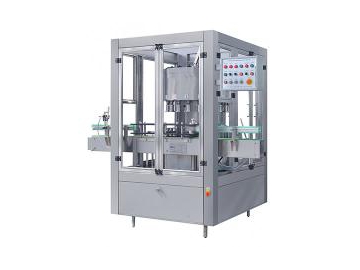

Computer Controlled Liquid Bottle Rinsing, Filling and Capping Line, CDP-24B
Bottle Rinsing Filling and Capping Machine, Bottle Filling Machine, Bottle Rinser, Bottle Capping Machine, Auto Bottle Filling Line, Automatic Bottle Packaging Line
This automatic bottle filling and capping line is especially designed for the washing, computer-controlled quantitative filling, and capping operations for all kinds of glass bottles, ceramic bottles and resin bottles. It is an ideal for packing liquor, rice wine, fruit juices, and non-carbonated drinks.
Features of the Auto Bottle Packaging Line
Production capacity: 5400 bottles (640ml) per hour
Allowable bottle volumes: 80ml-1000ml
| Power supply | AC 220V, 50Hz (others according to client's requirements) |
| Power | 2.2 kw |
| Filling volume | 50ml-500ml |
| Production capacity (taking water as an example) | 50ml (bottle volume): ≤8000 bottles /hour 500ml (bottle volume): ≤ 5500bottles /hour |
| Error range | ﹤1﹪ |
| Container size | Height: 120mm-250mm Diameter: 50mm-100mm |
| Weight | 1050kg |
| Dimension (L×W×H) | 2000mm×1400mm×2350mm |
Applications
Zhonghuan bottle rinsing, filling and capping line is mainly used for packaging liquor, rice wine, fruit juices, non-carbonated drinks, and other liquids.
