EMC05 X5070 Carbide Ball End Mills For High Hardened Steel

EMC05 X5070 Carbide Ball End Mills For High Hardened Steel
EMC05 X5070 Carbide Ball End Mills For High Hardened Steel
EMC05 X5070 Carbide Ball End Mills For High Hardened Steel
Request a Quote
View All: http://metalworking-tool.com/4-5-emc05-x5070-carbide-ball-end-mills-for-high-hardened-steel.html
  • Designed to machine tool steel, alloy steel, mold steel and other materials with hardness up to HRC70
  • Oerlikon Balzers coating offers superior hardness and heat resistance
  • Cutter Dia. down to 0.01mm
  • Chamfer design for easy installation
  • Used for profile milling and slotting
  • Suitable for use in copying machines

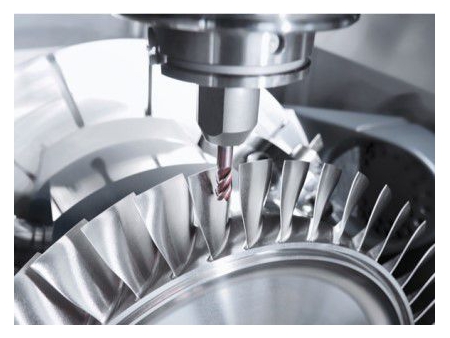

Application
Product Specifications
Coating AITISIN HRC HRC50/65/70
Helix Angle 45° Shank Cylindrical H6
Material IMC™ UMG Carbide Rod Tolerance on Cutting Diameter 0-0.030
X5070 Carbide Ball End Mills for High Hardened Steel（UNT-EMC05）
Unit: mm

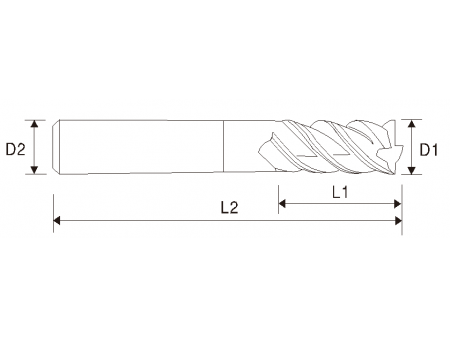

UNT EDP # Click to Order Radius
R 		Mill Dia.
D1 		Shank Dia.
D2 		Flute Length
L1 		Effective Length
L3 		O.A.L.
L2 		Flutes
EMC050034 R0.15 0.3 4 0.4 0.6 50 2
EMC050044 R0.2 0.4 4 0.5 0.8 50 2
EMC050054 R0.25 0.5 4 0.6 1 50 2
EMC050064 R0.3 0.6 4 0.7 1.2 50 2
EMC050074 R0.35 0.7 4 0.8 1.4 50 2
EMC050084 R0.4 0.8 4 1 1.6 50 2
EMC050094 R0.45 0.9 4 1.2 1.8 50 2
EMC050104 R0.5 1.0 4 1.5 2 50 2
EMC050153 R0.75 1.5 4 2 3 50 2
EMC050204 R1.0 2.0 4 2.5 4 50 2
EMC050304 R1.5 3.0 4 4 6 50 2
EMC050404 R2.0 4.0 4 5 8 50 2
EMC050106 R0.5 1.0 6 1.5 2 60 2
EMC050156 R0.75 1.5 6 2 3 60 2
EMC050206 R1.0 2.0 6 2.5 4 60 2
EMC050306 R1.5 3.0 6 4 6 60 2
EMC050406 R2.0 4.0 6 5 8 60 2
EMC050500 R2.5 5.0 6 6 10 60 2
EMC050600 R3.0 6.0 6 7 12 60 2
EMC050700 R3.5 7.0 8 8 14 60 2
EMC050800 R4.0 8.0 8 9 16 60 2
EMC051000 R5.0 10.0 10 11 20 75 2
EMC051200 R6.0 12.0 12 14 24 75 2
EMC051600 R8.0 16.0 16 18 32 100 2

• End mills with non-standard sizes or specifications not listed above can be customized according to customer needs.
