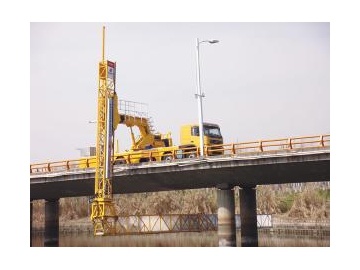

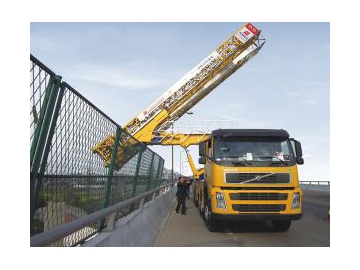

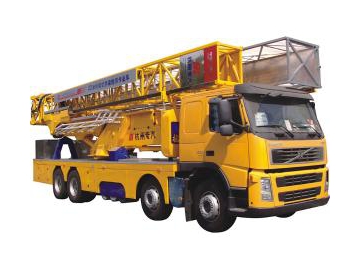

Bridge Inspection Vehicle is the latest operating vehicle which independently developed by our company, it has nice exterior, compact structure, easy operation, safe and reliable features. It can safely and efficiently send staff and testing equipment to any location which the bridge magnitude allowed, in the meanwhile complete the work in the shortest time. It also meet the testing requirements for most different bridges.

Main specification for bridge Inspection unit:
Type Platform type
Max. horizontal range 22M
Max. lowering depth 7850mm
Width of platform 1080mm
Space required on bridge 2800mm
Max. load on platform 800KG
Max. load on telescopic platform 400KG
Max. overbridging of sidewalk 3500mm Option:3800mm
Max. crossing of sound barrier 3500mm Option : 4200mm / 5100mm
Rotation of platform 180°
G.V.W 37500KG
Overall dimensions 12595(L)×2500(W)×4000 (H)mm
