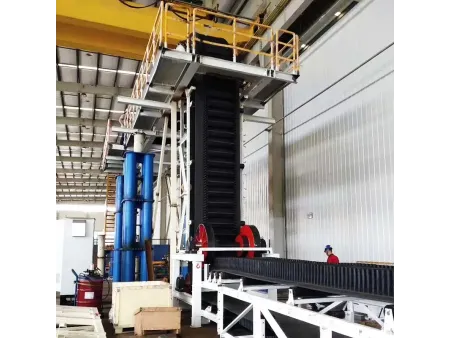

Corrugated Sidewall Belt Conveyor
Steep incline conveyor for conveying bulk materials at steep inclines up to 90 degree

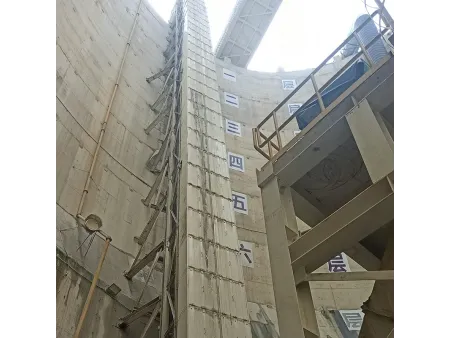

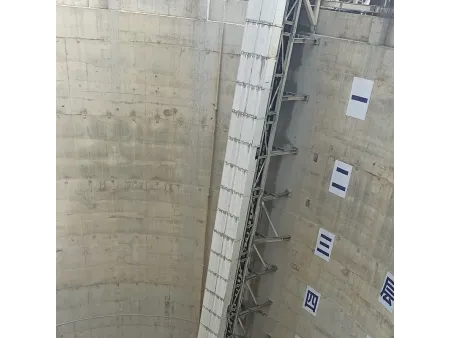

Featuring innovative corrugated sidewalls, this type of belt conveyor system stands out for its capacity to achieve steep angle material transportation, capable of handling inclines up to 90 degrees. This design not only minimizes the material conveying system's footprint but also offers easy angle adjustments., allowing for direct vertical paths that bypass obstacles and convey materials efficiently from point A to B.
Corrugated sidewall belt conveyors can be used in various settings, including ports, docks, the metallurgical sector, chemical industries, power plants, coal handling, and building materials.
Suitable for transporting a diverse range of materials such as crushed stone, limestone, coal, sand, clay, sintered sand powder, wood chips, and grains, demonstrating its versatility in handling different types of bulk materials.
| Belt Width (mm) | 300 | 400 | 500 | 650 | 800 | ||||||||
| Sidewall Height (mm) | 40 | 60 | 60 | 80 | 80 | 120 | 120 | 160 | 120 | 160 | 200 | 240 | |
| Conveying Capacity (m³/h) | 30° | 15 | 14 | 20 | 34 | 46 | 71 | 104 | 120 | 128 | 157 | 195 | 235 |
| 45° | 11 | 10 | 14 | 26 | 35 | 57 | 83 | 97 | 102 | 127 | 157 | 195 | |
| 60° | 8 | 7 | 10 | 18 | 25 | 40 | 58 | 69 | 72 | 90 | 112 | 142 | |
| 90° | 4 | 4 | 5 | 10 | 13 | 21 | 31 | 37 | 38 | 48 | 60 | 76 | |
| Dimensions | Head Pulley Center Height H²/h (mm) | 350-100 | 1100-200 0 | 1300-2000 | 1300-2000 | ||||||||
| Tail Pulley Center Height H²/h (mm) | 335 | 330-490 | 600 | 600 | 600-800 | ||||||||
| Middle Belt Height H²/h (mm) | 450 | 500-700 | 760-800 | 800-850 | 800-1115 | ||||||||
| Middle Anchor Width B²/h (mm) | 480 | 580 | 870 | 1020 | 1220 | ||||||||
| Belt Width (mm) | 1000 | 1200 | 1400 | |||||||||||
| Sidewall Height (mm) | 120 | 160 | 200 | 240 | 160 | 200 | 240 | 300 | 160 | 200 | 240 | 300 | 400 | |
| Conveying Capacity (m³/h) | 30° | 172 | 216 | 267 | 327 | 275 | 331 | 419 | 466 | 319 | 395 | 500 | 564 | 794 |
| 45° | 137 | 175 | 216 | 271 | 222 | 267 | 347 | 384 | 258 | 318 | 414 | 465 | 680 | |
| 60° | 96 | 124 | 153 | 197 | 158 | 190 | 253 | 178 | 184 | 226 | 302 | 337 | 524 | |
| 90° | 51 | 66 | 83 | 106 | 85 | 102 | 136 | 149 | 98 | 121 | 162 | 180 | 281 | |
| Dimensions | Head Pulley Center Height H²/h (mm) | 1400-2000 | 1600-2000 | |||||||||||
| Tail Pulley Center Height H²/h (mm) | 600-800 | 800-1000 | 800-1200 | |||||||||||
| Middle Belt Height H²/h (mm) | 800-1200 | 1050-1500 | 1050-1700 | |||||||||||
| Middle Anchor Width B²/h (mm) | 1440 | 1690 | 1890 | |||||||||||
