Request a Quote

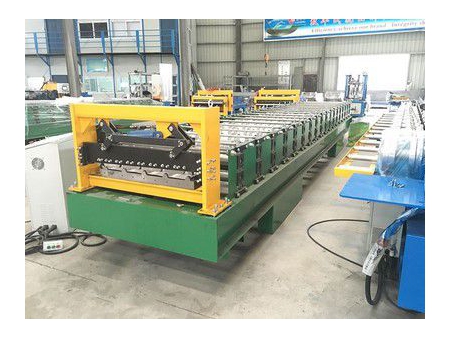

YX29-815 glazed tile roll forming machine is equipped with a hydraulic stamping unit for the production of 815mm wide and 0.4-0.8mm thick glazed tile roof panels. This machine comes with a production capacity of 3-8m/min.

Samples
Specifications
Model YX29-815
Dimension 6500*1500*1500mm
Motor Power 7.5kW
Hydraulic Power 3.7kW
Forming Steps 14steps
Forming Speed 3-8m/min
Voltage 380V/50HZ/3PH
Material Thickness 0.4-0.8mm
Rib Height of Roofing 29mm
Effective Cover Width 815mm
Tile Step Distance 100mm to 600mmVariable
Feeding Material Width 1000mm
Control System PLC Control
Details
  • Cutter is manufactured by Cr12 mold steel, with HRC58-60 heat treatment for high quality and long service life.

  • Roller is made of high quality 45# steel with CNC lathes.
    Hard chrome plating is available for long service life.
    Body frame is welded with 400# H bean.

  • PLC control system can be chosen from Schneider, Siemens, and Delta.

  • Hydraulic pre-cutter can be chosen for operation to save labor cost.

Main Accessories
  • Main Machine
  • 5 Tons Manual Uncoiler
  • Hydraulic Forming Cutter (Material: Cr12Mov with heat treatment)
  • Hydraulic System
  • PLC Computer Controlling System with touch Screen (Brand: Schneider)
  • Manual Pre-cutter OR Hydraulic Pre-cutter
  • Tools
  • Operation Manual

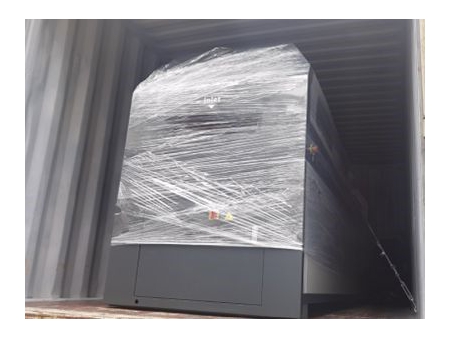

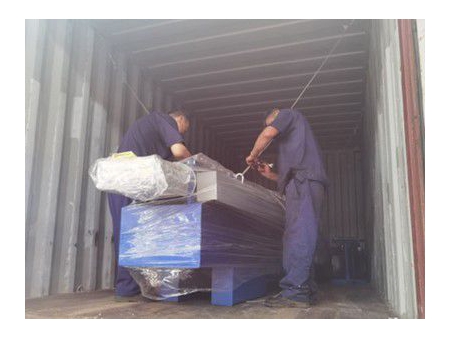

Transportation Package
