YX25-762 roof panel roll forming machine is capable of handling 0.4-0.8mm thick roof panel and wall panel with an effective cover width of 762mm. This machine comes with a production speed of 15m/min.

Samples
Profiles
Specifications
Model YX25-762
Dimension 6000*1500*1500mm
Motor Power 5.5kW
Hydraulic Power 2.2kW
Forming Steps 15steps
Forming Speed 10-15m/min
Voltage 380V/50HZ/3PH
Material Thickness 0.4-0.8mm
Rib Height of Roofing 25mm
Effective Cover Width 762mm
Feeding Material Width 914mm
Control System PLC Control
Details
  • Cutter is manufactured by Cr12 mold steel, with HRC58-60 heat treatment for high quality and long service life.

  • Roller is made of high quality 45# steel with CNC lathes.
    Hard chrome plating is available for long service life.
    Body frame is welded with 400# H bean.

  • PLC control system can be chosen from Schneider, Siemens, and Delta.

  • Hydraulic pre-cutter can be chosen for operation to save labor cost.

Main Accessories
  • Main Machine
  • 5 Tons Manual Uncoiler
  • Hydraulic Forming Cutter (Material:Cr12Mov with heat treatment)
  • Hydraulic System
  • PLC Computer Controlling System with touch Screen ( Brand: Schneider )
  • Manual Pre-cutter OR Hydraulic Pre-cutter
  • Tools
  • Operation Manual

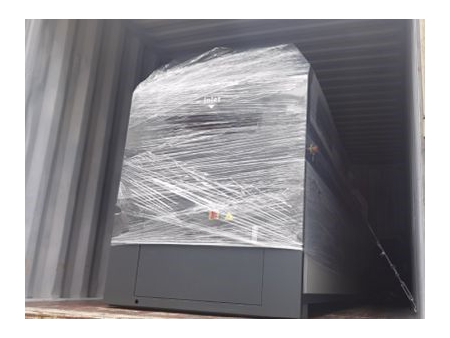

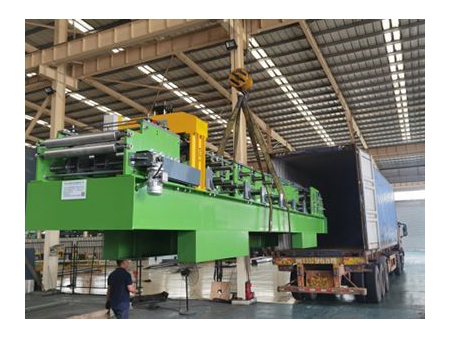

Transportation Package
