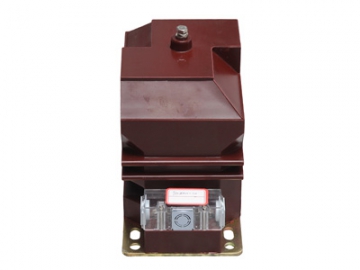

Medium Voltage Outdoor Voltage Transformer, JDZX10-10
Request a Quote
Technical Parameters
| Type | Rated transformation ratio(V) | Accuracy class and rated output COSφ=0.8(VA) | Thermal limiting output(VA) | Rated insulation level(kV) | ||||
| 0.2 | 0.5 | 1 | 3P | 3P 6P | ||||
| JDZX10-10 (REL 10) | 6000/√3/100/√3/100/3 | 15 | 30 | 60 | 50 | 50 | 200 | 7.2 /32/60 |
| 10000/√3/100/√3/100/3 | 15 | 30 | 60 | 50 | 50 | 200 | 12/42/75 | |
