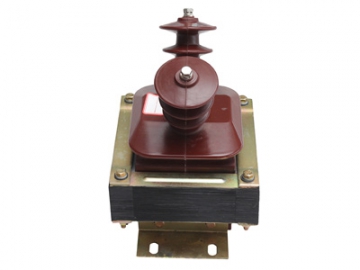

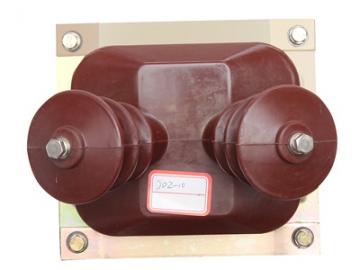

Medium Voltage Outdoor Voltage Transformer, JDZ/JDZJ-6/10
Request a Quote
Technical Parameters
| Type | Rated transformation ratio(V) | Accuracy class and rated output COSφ=0.8(VA) | Thermal limiting output(VA) | Rated insulation level(kV) | ||||
| 0.2 | 0.5 | 1 | 3 | 3P 6P | ||||
| JDZ-6(Q) | 3000/100 | 15 | 30 | 50 | 80 | 200 | 3.6/24/40 | |
| 6000/100 | 20 | 30 | 80 | 200 | 400 | 7.2/32/60 | ||
| JDZ-10(Q) | 10000/100 | 30 | 80 | 120 | 300 | 500 | 12/42/75 | |
| 10000/200 | ||||||||
| 11000/100 | ||||||||
| JDZJ-6(0) | 3000/√3/100/√3/100/3 | 15 | 30 | 50 | 80 | 100 | 200 | 3 . 6/24/40 |
| 6000/√3/100/√3/100/3 | 20 | 30 | 80 | 200 | 100 | 400 | 7.2/32/60 | |
| JDZJ-1O(Q) | 10000/√3/100/√3/100/3 | 20 | 50 | 80 | 200 | 100 | 400 | 12/42/75 |
| 11000/√3/100/√3/100/3 | ||||||||
