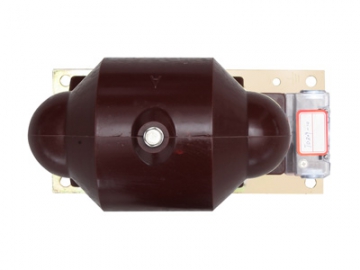

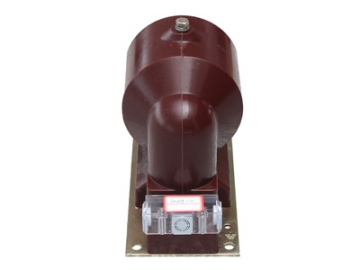

Medium Voltage Outdoor Voltage Transformer, JDZX9-6/10
Request a Quote
Technical Parameters
| Type | Rated transformation ratio(V) | Accuracy class and rated output COSφ=0.8(VA) | Thermal limiting output(VA) | Rated insulation level(kV) | ||||
| 0.2 | 0.5 | 1 | 3 | 3P 6P | ||||
| JDZX9-6 | 6000/√3/100/√3/100/3 | 15 | 30 | 100 | 100 | 100 | 400 | 7.2/32/60 |
| JDZX9-10 | 10000/√3/100/√3/100/3 | 25 | 50 | 180 | 100 | 100 | 400 | 12/42/75 |
