Combi Vibrating Screen

Combi Vibrating Screen
Combi Vibrating Screen
Request a Quote

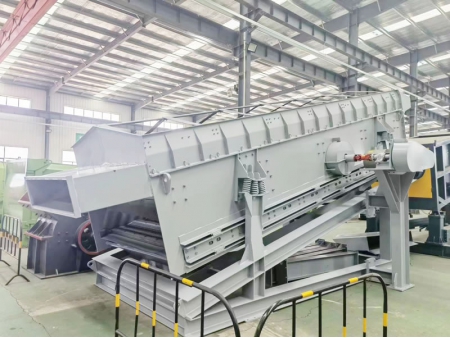

Combi vibrating screen(two-stage waste screen) performs two-stage screening in a single operation and consists of a frame and screens installed at an incline. Combining stepped screen plates with multi-level composite screening technology, it vibrates to separate materials of different types using primary and secondary screens. It offers high screening efficiency, adjustable speed, and anti-clogging features, making it ideal for processing construction waste and incinerator ash. Using the composite screen, materials are classified into particle sizes of 0-31.5mm, 31.5-100mm, and over 100mm.

Technical Specifications
Capacity 60t/h
Density 0.4-0.7t/m³
Screening hole size 31.5mm/100mm
Single layer screening plate material DILLIDUR-400V
Bottom screening mesh material Highly elastic, wear-resistant and corrosion-resistant polyurethane screen
Efficiency 90%
Power supply 380V/50Hz
Noise level ≤85dB
Machine weight 16.5T
