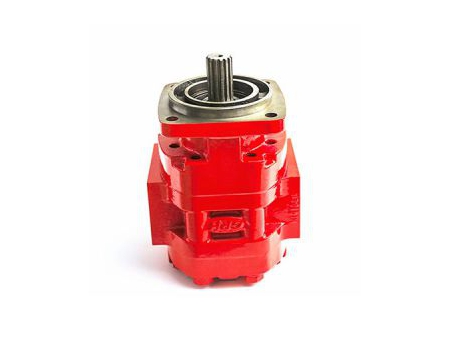

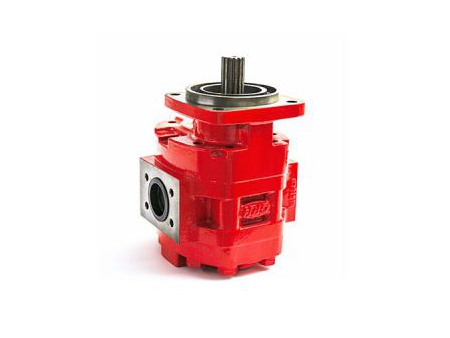

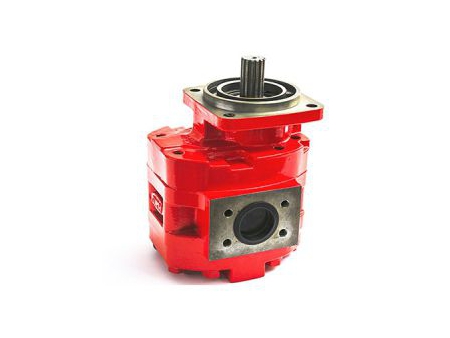

4PF | 66-199ml/r
Hydraulic Gear Pump
From the comprehensive range of ten gear pump series, the 4PF stands out with a displacement range tailored to fulfill the needs of substantial hydraulic operations, spanning from 66 to 199 ml/r. These pumps are engineered for scalability, functioning efficiently in both single and complex multi-unit systems.
Key features of the 4PF series include
- Displacement options that extend from 66 to 199 ml/r, offering solutions for high-volume hydraulic requirements.
- Advanced automatic axial clearance compensation to maintain high performance and resilience over time.
- Processed by imported CNC machining equipment, to ensure precision and quality.
- Steadfast quality and dependable performance define the 4PF series, reinforcing its role as a pivotal component in extensive hydraulic systems.

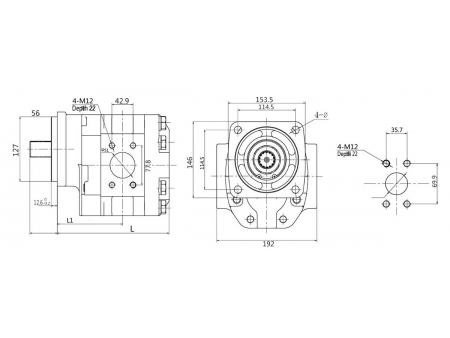

| Model | Displacement (ml/r) | Pressure(bar) | Speed (r/min) | L(mm) | LI(mm) | |||
| Rated | Peak | Rated | Max | Min | ||||
| 4PF66F161S68L | 66 | 210 | 250 | 1800 | 2200 | 600 | 197.3 | 121 |
| 4PF83F161S68L | 83 | 210 | 250 | 1800 | 2200 | 600 | 203.5 | 124.1 |
| 4PF91F161S68L | 91 | 210 | 250 | 1800 | 2200 | 600 | 207.3 | 126 |
| 4PF99F161S68L | 99 | 210 | 250 | 1800 | 2200 | 600 | 209.8 | 127.2 |
| 4PF116F161S68L | 116 | 210 | 250 | 1800 | 2200 | 600 | 217.3 | 130.9 |
| 4PF132F161S68L | 132 | 210 | 250 | 1800 | 2200 | 600 | 222.6 | 133.5 |
| 4PF145F161S68L | 145 | 210 | 250 | 1800 | 2200 | 600 | 227.8 | 136.1 |
| 4PF149F161S68L | 149 | 210 | 250 | 1800 | 2200 | 600 | 229.3 | 136.8 |
| 4PF166F161S68L | 166 | 210 | 250 | 1800 | 2200 | 600 | 235.3 | 139.8 |
| 4PF182F161S68L | 182 | 180 | 210 | 1800 | 2200 | 600 | 241.3 | 142.8 |
| 4PF199F161S68L | 199 | 180 | 210 | 1800 | 2200 | 600 | 248.3 | 146.3 |
The 4PF series gear pumps are crafted from cast iron, a material chosen for its ability to endure harsh environments and handle high pressure with ease. This series excels in engineering vehicles such as dump trucks and tipper trucks, where ruggedness and reliability are crucial. The cast iron construction of the 4PF series pumps allows them to perform reliably in the demanding conditions often encountered in the construction and engineering sectors.
