Horizontal Two Stage Permanent Magnet VSD Screw Compressor, R Series
Request a Quote
- Air Displacement (m³/min): 3.5～26.3
- Discharge Pressure (MPa/Bar): (0.7/7)/(0.8/8)/(1.0/10)
- Power (kW): 22~132 (Customization is available)
We offer a wide range of air compressors, post-processing equipment, comprehensive compressed air solutions, and technical support.
-

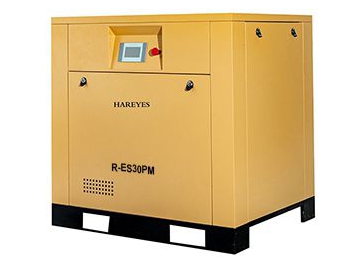

R-ES30PM Horizontal Two Stage Permanent Magnet VSD Screw Compressor 22kW/30HPAir Displacement @ Pressure
(M³/min @ MPa/Bar)Air Displacement @ Pressure
(CFM @ PSI)Power
( kW/HP)Dimensions Length*Width*Height
(mm)4.3/0.7/7.0 4.16/0.8/8.0 3.5/1.0/10 152/102 147/116 124/145 22/30 1400*950*1240 -
R-ES50PM Horizontal Two Stage Permanent Magnet VSD Screw Compressor 37kW/50HPAir Displacement @ Pressure
(M³/min @ MPa/Bar)Air Displacement @ Pressure
(CFM @ PSI)Power
( kW/HP)Dimensions Length*Width*Height
(mm)7.1/0.7/7.0 6.95/0.8/8.0 6.6/1.0/10 251/102 246/116 233/145 37/50 1740*1150*1600 -

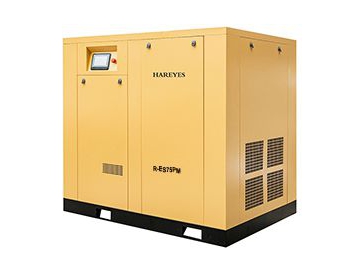

R-ES75PM Horizontal Two Stage Permanent Magnet VSD Screw Compressor 55kW/75HPAir Displacement @ Pressure
(M³/min @ MPa/Bar)Air Displacement @ Pressure
(CFM @ PSI)Power
( kW/HP)Dimensions Length*Width*Height
(mm)12.4/0.7/7.0 11.3/0.8/8.0 9.8/1.0/10 438/102 399/116 346/145 55/75 1800*1400*1740 -
R-ES100PM Horizontal Two Stage Permanent Magnet VSD Screw Compressor 75kW/100HPAir Displacement @ Pressure
(M³/min @ MPa/Bar)Air Displacement @ Pressure
(CFM @ PSI)Power
( kW/HP)Dimensions Length*Width*Height
(mm)15.5/0.7/7.0 14.4/0.8/8.0 12.5/1.0/10 548/102 509/116 442/145 75/100 1800*1400*1740 -

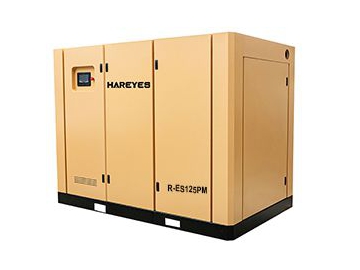

R-ES125PM Horizontal Two Stage Permanent Magnet VSD Screw Compressor 90kW/125HPAir Displacement @ Pressure
(M³/min @ MPa/Bar)Air Displacement @ Pressure
(CFM @ PSI)Power
( kW/HP)Dimensions Length*Width*Height
(mm)18.3/0.7/7.0 17.6/0.8/8.0 16.2/1.0/10 647/102 622/116 572/145 90/125 2540*1470*1840 -
R-ES150PM Horizontal Two Stage Permanent Magnet VSD Screw Compressor 110kW/150HPAir Displacement @ Pressure
(M³/min @ MPa/Bar)Air Displacement @ Pressure
(CFM @ PSI)Power
( kW/HP)Dimensions Length*Width*Height
(mm)22.5/0.7/7.0 21.6/0.8/8.0 19.8/1.0/10 795/102 763/116 699/145 110/150 2540*1470*1840 -
R-ES175PM Horizontal Two Stage Permanent Magnet VSD Screw Compressor 132kW/175HPAir Displacement @ Pressure
(M³/min @ MPa/Bar)Air Displacement @ Pressure
(CFM @ PSI)Power
( kW/HP)Dimensions Length*Width*Height
(mm)26.3/0.7/7.0 25.4/0.8/8.0 22.7/1.0/10 929/102 898/116 802/145 132/175 2540*1470*1840
| Model | | | | | | | | |
| Air Displacement @ Pressure (M³/min @ MPa/Bar) | 4.3/0.7/7.0 | 7.1/0.7/7.0 | 12.4/0.7/7.0 | 15.5/0.7/7.0 | 18.3/0.7/7.0 | 22.5/0.7/7.0 | 26.3/0.7/7.0 | |
| 4.16/0.8/8.0 | 6.95/0.8/8.0 | 11.3/0.8/8.0 | 14.4/0.8/8.0 | 17.6/0.8/8.0 | 21.6/0.8/8.0 | 25.4/0.8/8.0 | ||
| 3.5/1.0/10 | 6.6/1.0/10 | 9.8/1.0/10 | 12.5/1.0/10 | 16.2/1.0/10 | 19.8/1.0/10 | 22.7/1.0/10 | ||
| Air Displacement @ Pressure (CFM @ PSI) | 152/102 | 251/102 | 438/102 | 548/102 | 647/102 | 795/102 | 929/102 | |
| 147/116 | 246/116 | 399/116 | 509/116 | 622/116 | 763/116 | 898/116 | ||
| 124/145 | 233/145 | 346/145 | 442/145 | 572/145 | 699/145 | 802/145 | ||
| Cooling Method | Air cooling (water cooling available) | |||||||
| Discharge Temperature (℃) | ≤40 | |||||||
| Volume of Lubricant (L) | 18 | 32 | 54 | 72 | 90 | |||
| Compression Stage | Two-stage | |||||||
| Noise Level dB(A） | 70±2 | 75±2 | 78±2 | |||||
| Drive Method | Direct drive | |||||||
| Power ( kW/HP) | 22/30 | 37/50 | 55/75 | 75/100 | 90/125 | 110/150 | 132/175 | |
| Power Supply | 380V/50Hz (can be customized as per your voltage and frequency requirements) | |||||||
| Motor Protection Class | IP23 | |||||||
| Starting Mode | Variable frequency starting | |||||||
| Dimensions | Length (mm) | 1400 | 1740 | 1800 | 1800 | 2540 | 2540 | 2540 |
| Width (mm) | 950 | 1150 | 1400 | 1400 | 1470 | 1470 | 1470 | |
| Height (mm) | 1240 | 1600 | 1740 | 1740 | 1840 | 1840 | 1840 | |
| N.W. | kg | 430 | 760 | 1040 | 1156 | 1455 | 1750 | 1860 |
| Outlet Diameter (inch) | G1-1/2" | G2" | G2-1/2" | |||||
Note: We reserve the right to make design improvements without prior notice. Product specifications are subject to change, and the final specifications may vary depending on the actual machine.
Features
Direct Drive System
The compressor's main unit and motor employ direct drive, enhancing transmission efficiency, reducing mechanical losses, and eliminating air supply interruptions due to transmission failures.Efficient Cooling System
Utilizing an efficient cooling system, this compressor boosts cooling efficiency, ensuring ample cooling airflow and extending operational lifespan.Permanent Magnet Synchronous Motor
Equipped with a permanent magnet synchronous motor and phase sequence protection, our compressor prevents motor reversal, ensuring high-efficiency compressor operation.Intelligent Control
Our compressor features a fully intelligent control system with dynamic system status display and real-time monitoring of critical parameters.
Horizontal two-stage screw main unit with an optimized internal structure. It delivers a 15% increase in air volume compared to single-stage compressors of the same power.
We offer customizable air compressors in various voltage and frequency configurations to suit your specific requirements, such as 110V/single-phase/60Hz, 110V/three-phase/60Hz, 220V/three-phase/60Hz, 380V/three-phase/50Hz, 380V/three-phase/60Hz, 415V/three-phase/60Hz, 440V/three-phase/60Hz, 600V/three-phase/60Hz, and more.
