4MF | 66-199m/r

Request a Quote

View All: http://product-hydraulic.com/2-6-4mf.html

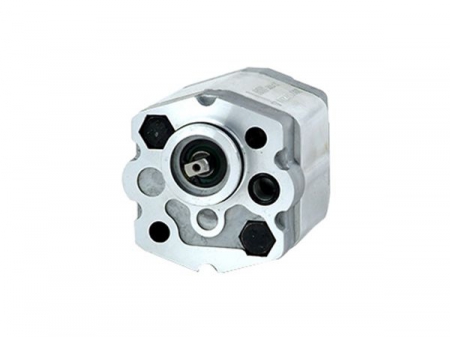

Hydraulic Gear Motor

Our 4MF series hydraulic gear motors are engineered for demanding applications requiring high torque and power. With a displacement range of 66-199ml/r, they are ideal for heavy-duty operations in sectors like mining, construction, and industrial manufacturing. These motors are built to deliver consistent performance with a focus on durability and efficiency.

Key Features

Wide displacement range of 66-199ml/r, accommodating a variety of industrial needs.
With their high torque output, they are ideal for applications requiring substantial force.
Made with high-grade materials to withstand harsh conditions.

Specifications

Model	Displacement (ml/r)	Pressure(bar)		Speed (r/min)			L(mm)	LI(mm)
Model	Displacement (ml/r)	Rated	Peak	Rated	Max	Min	L(mm)	LI(mm)
4PF66F161S68L	66	210	250	1800	2200	600	197.3	121
4PF83F161S68L	83	210	250	1800	2200	600	203.5	124.1
4PF91F161S68L	91	210	250	1800	2200	600	207.3	126
4PF99F161S68L	99	210	250	1800	2200	600	209.8	127.2
4PF116F161S68L	116	210	250	1800	2200	600	217.3	130.9
4PF132F161S68L	132	210	250	1800	2200	600	222.6	133.5
4PF145F161S68L	145	210	250	1800	2200	600	227.8	136.1
4PF149F161S68L	149	210	250	1800	2200	600	229.3	136.8
4PF166F161S68L	166	210	250	1800	2200	600	235.3	139.8
4PF182F161S68L	182	180	210	1800	2200	600	241.3	142.8
4PF199F161S68L	199	180	210	1800	2200	600	248.3	146.3
