Introduction

The SR-3000 combustible and toxic gas detector uses a catalytic sensor, electrochemical sensor or optical ionic sensor, and is an independent detector based on a highly integrated embedded industrial microprocessor. The software is optimized with instruction design and the hardware features a modularization design. The detector is user friendly, stable and reliable. It is easy to be installed and has a strong anti-interference ability.

Application

Metallurgy, chemical industry, petroleum, gas storage, environmental protection and other industries related to flammable, explosive and toxic gases.

Features
  • CAN bus protocol communication interface makes it easy to ad hoc a network.
  • Sensors with fault self-detection and identification which can be replaced on site.
  • The remote controller can be used to control the gas detector
  • The upper and low limit alarm
  • Stable and reliable, strong anti-interference ability and is easy to install.
Inquiry
Detection performance
  • Gas Types
    For further information of combustible gases, see "List of Common Flammable and Explosive Gases for SR-3000 Detector"
    For further information of toxic gases, see "List of Common Toxic Gases for SR-3000 Detector"
  • Accuracy: ±3% FS
  • Receptivity: <2%
  • Response time: <22s (Combustible gases); For toxic gases, see "List of Common Toxic Gases for SR-3000 Detector"
  • Electrical properties
    • Power supply: 24VDC±6v
    • Power: <2W
    • Output signal: LCD digital display, 3-wire/2-wire, 4-20mA, RS485 interface, 2 sets of relay output (normal open-point switch output capacity 5A/220VAC), Acoustic-optic alarming
    Mechanical properties
    • Body shell: ADC12 aluminum alloy
    • Sensor shell: 316 stainless steel
    • Weight: 1.5kg±0.1kg
    Certification
    • Explosion proof certification: Ex d ⅡC T6 Gb
    • Metrological authentication: CMC
    Work environment
    • Protection level: IP66
    • Range of temperature: -40°C -- 70°C (Combustible gases) -10°C-- 50°C (Toxic gases)
    • Range of humidity: 10—95%RH
    List of Common Flammable and Explosive Gases for SR-3000 Detector
    Name Molecule formula Relative density Combustion limit
    The low limit The upper limit
    Methane CH40.55 5 15
    Toluene C6H5CH23.2 1.2 7.1
    Methanol CH2OH 1.11 6.7 36
    Methyl formate HCOOCH22.07 5 23
    Ethyl formate HCOOCH2CH32.65 2.8 16
    Methyl ethyl ether CH3OCH2CH32.1 2 10.1
    Ethane CH3CH31.04 3 12.5
    Acetylene CH≡CH 0.9 2.5 100
    Ethanol CH3CH2OH 1.59 3.3 19
    Ethylbenzene CH3CH2C6H53.66 1 6.7
    Ethylene CH2=CH20.97 2.7 36
    Methyl acetate CH3COOCH32.56 3.1 16
    Ethyl acetate CH3COOCH2CH33.04 2.2 11
    N-butyl acetate CH3COOCH2CH2CH34.01 1.7 7.3
    Propane CH3CH2CH31.56 2.1 9.5
    Propanol CH3CH2CH3OH 2.07 2.1 13.5
    Propylene CH2=CHCH21.5 2 11.1
    Acetone (CH3)2CO 2 2.6 12.8
    Butane C4H102.05 1.9 8.5
    Butanone CH3CH2COCH32.48 1.8 10
    Butadiene CH2=CHCH=CH21.87 2 12
    Pentane C5H122.48 1.4 7.8
    Hexane CH3(CH2)4CH32.97 1.1 7.5
    Heptane C7H163.46 1.1 6.7
    Octane CH3(CH2)3CH33.93 1 6.5
    Carbon monoxide CO 0.97 12.5 74
    Ammonia NH30.59 15 33.6
    Hydrogen H20.07 4 75
    Benzene C6H62.7 1.3 7.1
    Isobutane (CH3)2CHCH32 1.8 8.4
    Isopropyl alcohol (CH3)2CHOH 2.07 2 12
    Cyclohexane CH2(CH2)4CH22.9 1.3 8
    Propylene oxide CH3CHCH2O 2 2.8 37
    Ethylene oxide CH2CH2O 1.52 3.6 100
    Two ethyl ether (CH3CH5)2O 2.55 1.9 36
    Dimethyl ether (CH3)2O 1.59 3.4 27
    Xylene C6H4(CH3)2 3.66 1 7
    Gasoline C4~C12 Hydrocarbon mixtures 0.73 1.3 7.1
    List of Common Toxic Gases for SR-3000 Detector
    Name Molecular formula Range (PPM) Response time (s)
    Oxygen O20-25 < 28
    Carbon monoxide CO 0-1000 < 30
    Hydrogen sulfide H2S 0-100 < 22
    Hydrogen H20-1000 < 50
    Ammonia NH30-1000 < 90
    Chlorine CL20-20 < 32
    Nitric oxide NO 0-500 < 32
    Nitrogen dioxide NO20-50 < 31
    Sulfur dioxide SO20-100 < 22
    Vinyl chloride C2H3CL 0-100 < 92
    Acrylonitrile C3H3N 0-200 < 166
    Methanol CH3OH 0-500 < 79
    Formaldehyde CH2O 0-500 < 76
    Ethylene oxide C2H4O 0-200 < 122
    Hydrogen chloride HCL 0-50 < 82
    Hydrogen cyanide HCN 0-30 < 94
    Hydrogen fluoride HF 0-10 < 94
    Application areas

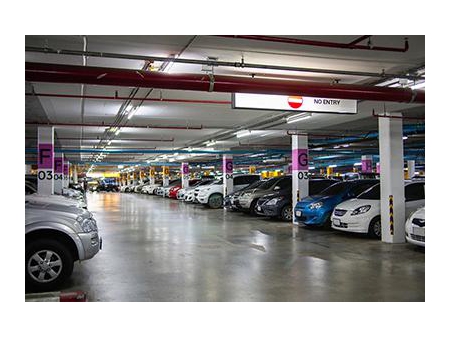

    • Air Conditioning and Ventilation Gas Detection

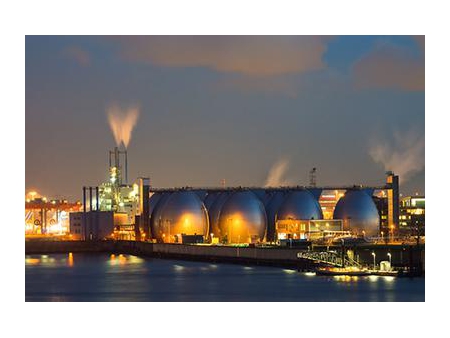

    • Biogas Plant Gas Analysis
