Pouch Machines

Vertical Form Fill Seal Machines with Multihead Weigher for Liquids and Viscous Products

Dosing System
Liquid Pump Filler
Bags Per Hour
300-3600
Bag Volume
2000 to 14000ml
Bag Size (Length × Width)
80-500mm × 60-350mm

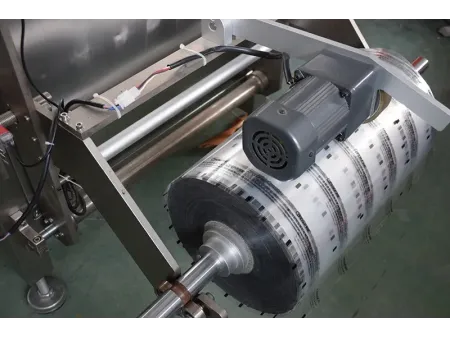

Film feeding system

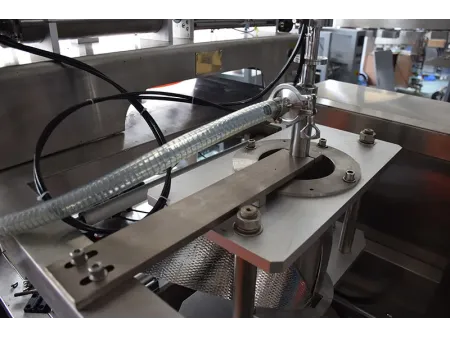

Liquid filling system

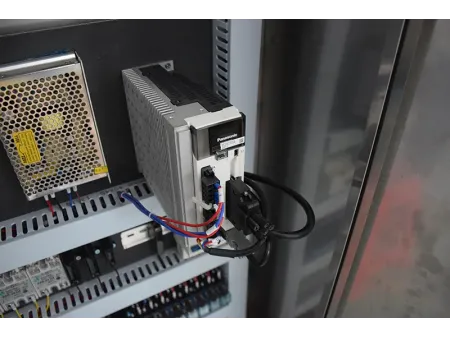

Electrical cabinet

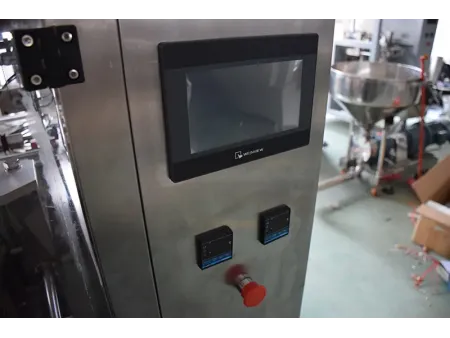

Control panel and switch

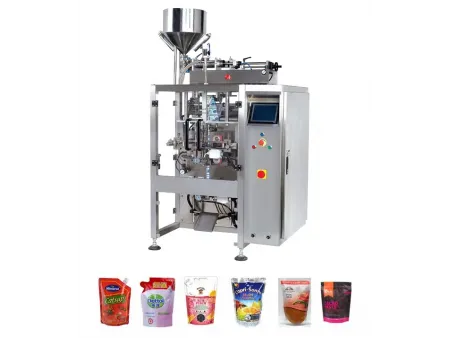

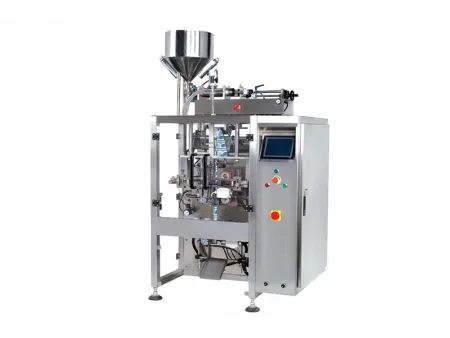

Pouch Liquid Packaging Machine
Pouch Paste Packaging Machine
Applications

Ideal for packaging standard, viscous, and high-viscosity liquid products, such as peanut butter, ketchup, shampoo, body wash, face cream, sauces, jams, condiments, milk, juice, and mayonnaise.

Configurations
  • VFFS Packaging Machine
  • Low Volume Liquid Pump (50-500ml)
  • Medium Volume Liquid Pump (100-1000ml)
  • High Volume Liquid Pump (500-5000ml)
  • Liquid Pump Filler
Features
  • Versatile Compatibility: Integrates with liquid or paste pumps for fully automated packaging of liquids and pastes with varying viscosities.
  • Automatic Supply Control: Features linked system control for efficient feeding, ensuring no packaging occurs without material, reducing waste.
  • Durable and Hygienic: Liquid pump components in contact with materials are made from 316 stainless steel, providing rust resistance and long-term reliability.

Designed for standard, viscous, and high-viscosity liquid materials, this fully automated packaging system offers smooth control for your production line. It features integrated supply management with an intelligent no-material, no-packaging detection system, ensuring efficiency and minimal waste.

Kinds of Pouches: 3-side, four edge-sealing bag, self-reliance bag, handbag, spout bags, zipper bag, compound bag, etc

Model ZV-420
Film Width Max.420mm
Bag Length 80-300mm
Bag Width 60-200mm
Film Roll Diameter Max.320mm
Packaging Speed 300-3600bags/hour
Bag Volume 2000ml
Film Thickness 0.04-0.12mm
Power Supply 220V, 50/60Hz, 3kW
Machine Dimensions (L×W×H) 1217×1015×1343mm
Optional Air Filling Device, Gusseting Device
Film Material BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc.
Model ZV-520
Film Width Max.520mm
Bag Length 80-350mm
Bag Width 100-250mm
Film Roll Diameter Max.320mm
Packaging Speed 300-3600bags/hour
Bag Volume 4000ml
Film Thickness 0.04-0.12mm
Power Supply 220V, 50/60Hz, 3kW
Machine Dimensions (L×W×H) 1488×1080×1490mm
Optional Air Filling Device, Gusseting Device
Film Material BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc.
Model ZV-620
Film Width 150-620mm
Bag Length 100-450mm
Bag Width 65-300mm
Film Roll Diameter Max.320mm
Packaging Speed 300-2700bags/hour
Bag Volume 8000ml
Film Thickness 0.04-0.12mm
Power Supply 220V, 50/60Hz, 3.2kW
Machine Dimensions (L×W×H) 1488×1180×1550mm
Optional Air Filling Device, Gusseting Device
Film Material BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc.
Model ZV-720
Film Width 150-720mm
Bag Length 100-500mm
Bag Width 65-350mm
Film Roll Diameter Max.320mm
Packaging Speed 300-2400bags/hour
Bag Volume 14000ml
Film Thickness 0.04-0.12mm
Power Supply 220V, 50/60Hz, 3.5kW
Machine Dimensions (L×W×H) 1780×1350×2050mm
Optional Air Filling Device, Gusseting Device
Film Material BOPP/CPP, BOPP/VMCPP, BOPP/PE, PET/VMPET/PE, PET/AL/PE, PET/PET etc.
