RG-35
- This linear actuator is recognized for compact and elegant design.
- The actuator, popular for its slim 35mm diameter, can handle loads up to 2300N, making it perfect for various applications.
- Available in stainless steel, offering a high protection level of IP67M, ensuring stable operation in harsh environments.
- The actuator is widely used in products such as motor boat, electric hospital bed, treatment chair, electric wheelchair, etc.
Applications

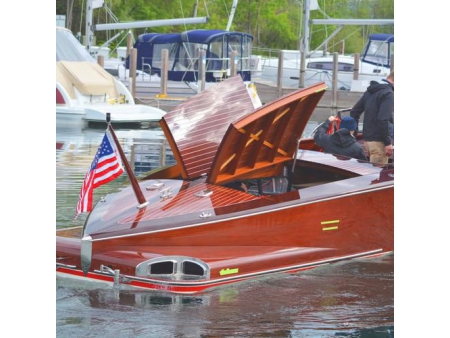

- Motor boat

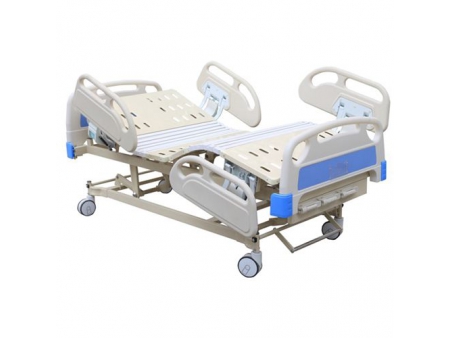

- Electric hospital bed

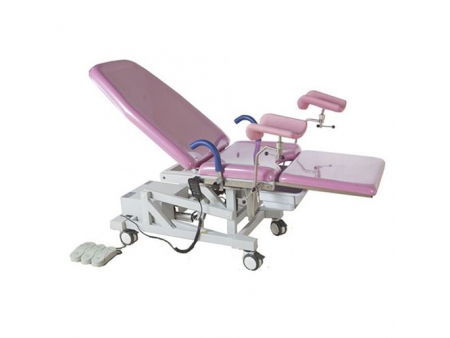

- Treatment chair

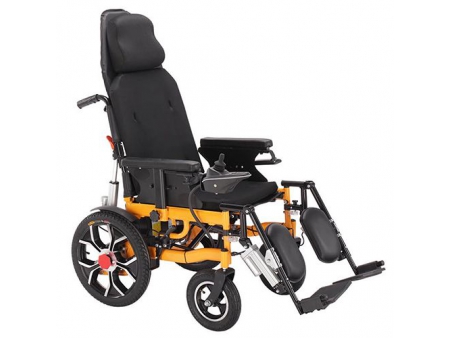

- Electric wheelchair
Specifications
| Voltage | 12V | 24V |
| No-load current | ≤0.7A | ≤0.35A |
| Load current | ≤3.8A | ≤1.8A |
| Maximum power | 50W | |
| Outer tube material | 6063 aluminum /316 stainless steel | |
| Ball screw material | T-shaped steel | |
| Expansion tube material | 316stainless steel | |
| Duty cycle (S2) | Work for 2 minutes and rest for 18 minutes | |
| Service life | ≥10000 cycles | |
| IP level | IP66/67M | |
| Operating temperature | -20℃~60℃ | |
| Noise level | 60dB | |
| Standard color | Black/Silver | |
| Certification | CE | |
Technical Data
| Maximum load (N) | 100 | 300 | 400 | 600 | 800 | 1200 | 1800 | 2300 | |
| Self-locking force (N) | 150 | 600 | 600 | 1600 | 1600 | 1800 | 3600 | 3450 | |
| Standard | No-load speed (mm/s) | 35 | 25 | 18 | 12 | 12 | 6.8 | 4.5 | 3.5 |
| Load speed (mm/s) | 30 | 17 | 14 | 9 | 8 | 5 | 3 | 2.5 | |
| Low noise | No-load speed (mm/s) | 25 | 25 | 16.5 | 13 | 8.5 | - | - | - |
| Load speed (mm/s) | 23 | 20 | 14 | 10.5 | 7 | - | - | - | |
| Stroke (mm) | 50 | 100 | 150 | 200 | 250 | 300 | 350 | 400 | |
| Aluminum type | Weight (kg) | 0.6 | 0.7 | 0.8 | 0.9 | - | 1.1 | 1.2 | 1.4 |
| Stainless steel type | Weight (kg) | 1.1 | 1.2 | 1.3 | 1.4 | 1.5 | 1.6 | 1.7 | 1.8 |
Dimensions
Minimum Installation Distance (stroke length)
When stroke ≤400mm
| Standard | With Hall sensor feedback | With overcurrent protection | ||||
| Normal/waterproof type | Silent model type | Normal/waterproof type | Silent model type | Normal/waterproof type | Silent model type | |
| ≤800 N | Stroke 178mm (121.5A) | Stroke 188mm (131.5A) | Stroke 200mm (143.5A) | Stroke 200mm (143.5A) | Stroke 200mm (143.5A) | Stroke 208mm (151.5A) |
| >800N | Stroke 188mm (131.5A) | - | Stroke 208mm (151.5A) | - | Stroke 208mm (151.5A) | - |
When stroke ＞400mm
| Standard | With Hall sensor feedback | With overcurrent protection | ||||
| Normal/waterproof type | Silent model type | Normal/waterproof type | Silent model type | Normal/waterproof type | Silent model type | |
| ≤800 N | Stroke 220mm (143.5A) | Stroke 228mm (151.5A) | Stroke 220mm (143.5A) | Stroke 220mm (151.5A) | Stroke 220mm (143.5A) | Stroke 228mm (151.5A) |
| >800N | Stroke 228mm (151.5A) | - | Stroke 228mm (151.5A) | - | Stroke 228mm (151.5A) | - |
What We Can Customize
- Wire length
- Stroke length
- Installation dimension
- Front and rear mounting joint
- Color and surface treatment
