InGaAs Coaxial Plug in Diode Laser Modules
(If customers would like to know more about the details, please click here to download the following file.)

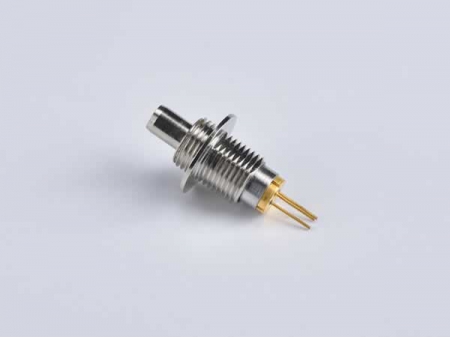

The 650nm red laser device is provided in a coaxial plug-in type package. It adopts the 635nm or 650nm red laser chip with an output power ranging from 1MW to 20MW. This device can be used as the fiber-optic indicator light, red laser pointer, and break point indicator. It also finds applications in the medical field.

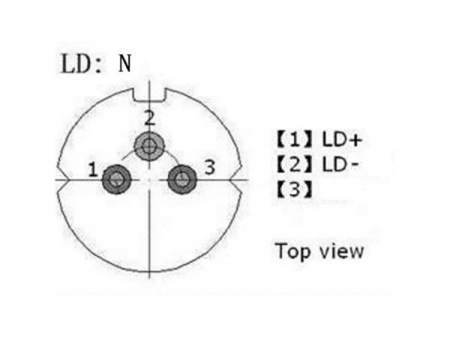

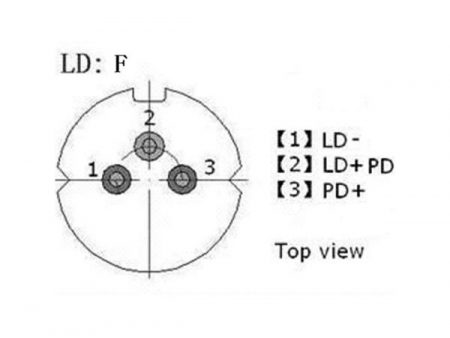

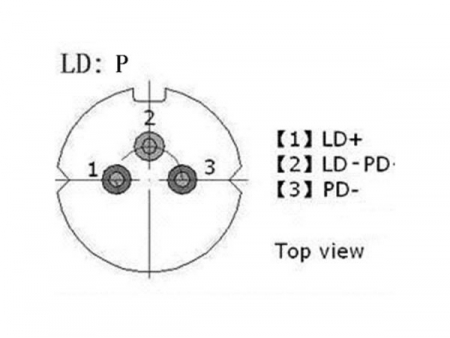

PIN Definition(If customers would like to know more about the details, please click here to download the followingfile.)

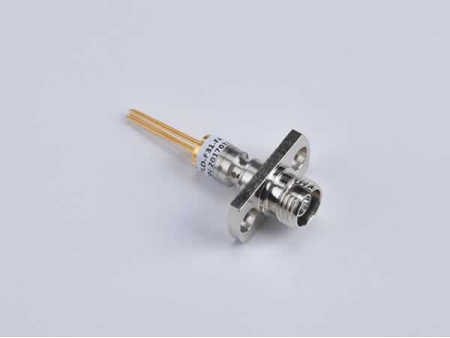

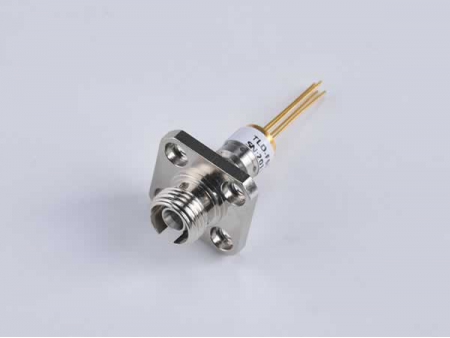

The 0.2-2MW 1310nm FP pigtailed laser diode module plug in type is provided in the coaxial plug-in package. It also adopts the Fabry–Pérot cavity, featuring low threshold and operating current. In addition, the device can be supplied with the SC, ST, or FC connector. It is commonly used in the handheld light source, desktop light source, optical multi-meter, and communication test equipment.
Optical & Electrical Characteristics| Parameter | Symbol | Min. | Typ. | Max. | Unit | Test Condition |
| Rated Power | Po | 0.2 | - | 2 | mW | Ith 20mA |
| Threshold Current | Ith | 3 | - | 12 | mA | CW |
| Forward Voltage Drop | Vop | - | 1.1 | 1.5 | V | CW, Ith 20mA |
| Cent Wavelength | λc | 1300 | 1310 | 1320 | nm | - |
| 1540 | 1550 | 1560 | ||||
| Spectrum Width(-3dB) | Δλ | - | 0.3 | 0.5 | nm | Ith 20mA |
| Bandwidth | Bw | 1.25 | 2.5 | - | GHz | RI=50Ω |
| Monitor Current | Im | 100 | 900 | uA | CW, Ith 20mA | |
| Dark Current of Monitor | Id | - | - | 100 | nA | CW, Ith 20mA |
| Optical Isolation | ISO | 30 | - | - | dB | 25℃ |

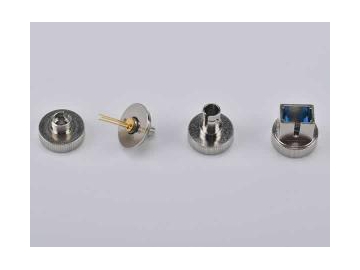

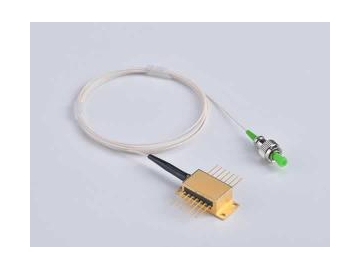

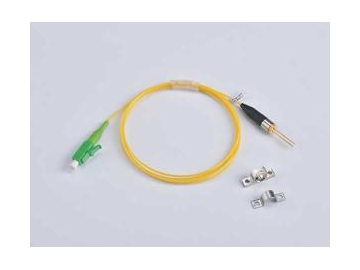

As a specialized InGaAs coaxial plug in diode laser modules (analog optical active component TOSA plug in) manufacturer in China, our company also offers plug in InGaAs coaxial photodetector diode modules, butterfly pigtailed laser diode modules, coaxial pigtail diode laser device, and more.
