Rotary injection molding machine for producing plastic shoe soles

Raw material:
natural rubber, neoprene synthetic rubber, oil-resistant rubber

Applications:

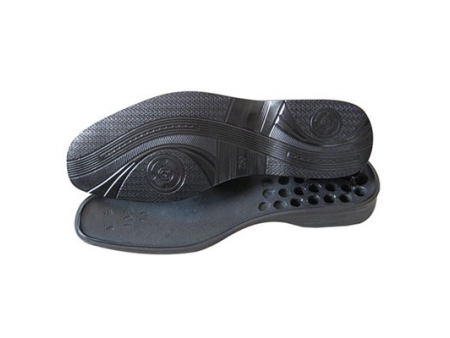

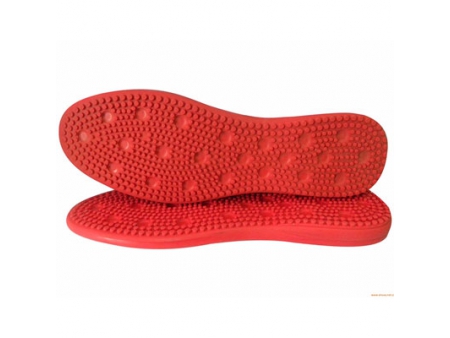

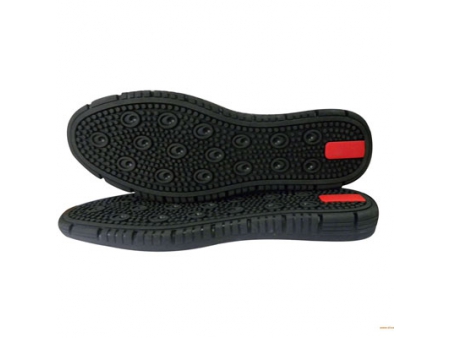

rubber products for the automatic industry, rubber soles, oil seal rings

JIC MACHINE provides rubber compression molding machines that are mainly used to produce rubber products, such as, wheels, oil seal rings and shoe soles.

  • The rubber compression molding machine can be operated on both sides to increase efficiency;
  • The sole making machine is highly automatic and it enables automatic mold loading and unloading.
Technical Specifications
Item Unit Specifications
Model 1506
Raw material RB
Heating method Electric heating, steam, conduction oil
Number of plates 2
Plate clearance mm 180
Clamping force T 150
Mold size mm 400*450
Mold height mm 70-150
Sliding stroke mm 760
Main motor power kW 15
Motor power of the slide plate kW 5.5
Machine dimensions mm 7630*2500*2000
Gross weight kg 15000
Features
  • The shoe making machine enables automatic mold loading and unloading;
  • The station enables two-side operation and there is an interlock device on both sides to ensure safety of use;
  • The mold is easy to install as it only needs fixing the bottom part of molds to the slide plate
  • The independent control of each station reduces electricity consumption as the operator can separately run the stations for different production and maintenance needs;
  • The industrial interface along with a PLC system enables easy and convenient operation;
  • The thermal insulation design is particularly used to prevent heat loss, reduce energy consumption and improve the working conditions;
  • The imported hydraulic system adopts the logic circuit design with logic valves to reduce energy consumption and improve working environment;
  • Exhaust time of the vulcanization process can be flexibly adjusted based on the size of molds;
  • One operator is able to handle operation of multiple stations, which reduces labor cost to a large extent.
