Shearing Machine
This product has been discontinued and removed from our shelves.

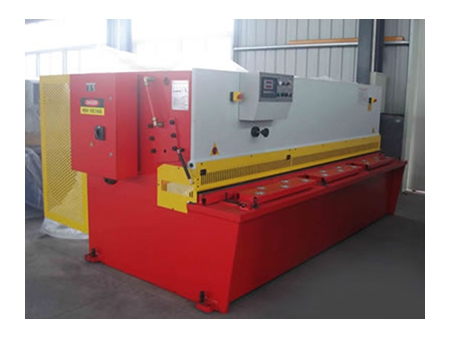

Characteristics of QC12Y series Hydraulic Pendulum Plate Shearing Machine
- QC12Y series hydraulic pendulum plate shearing machine is designed with welded-steel plate construction, hydraulic drive system and nitrogen gas spring.
- It has the features of elegant appearance, easy operation, high rigidity, reliable performance, sturdiness and durability, etc.
- Cutting edge clearance can be adjusted easily and quickly and the adjustment can be indicated on the indicating board.
- Our hydraulic pendulum plate shearing machine is equipped with lighting device which can facilitate shearing. 5. It utilizes stepless adjusting mode to control the stroke of top knife rest.
- Protective fence is adopted in the work area to ensure the safety of operators.
- Our hydraulic pendulum plate shearing machine is fitted with digital display unit to show the back gauge size and shearing times.

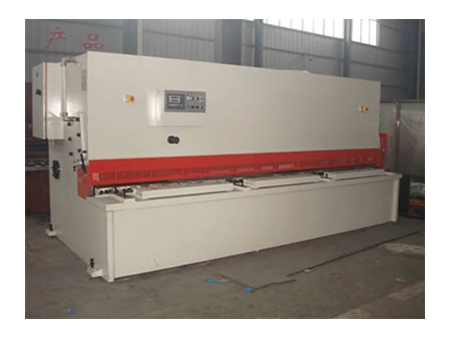

Characteristics of QC12Y series Numerical Control Hydraulic Pendulum Plate Shearing Machine
- QC12Y series numerical control hydraulic pendulum plate shearing machine is equipped with pendulous knife rest. The machine body is welded as a whole, so the machine is sturdy and durable.
- Our numerical control hydraulic pendulum plate shearing machine adopts hydraulic drive mode.
- It is designed with nitrogen gas cylinder for return stroke and utilizes stepless adjusting mode to control the stroke.
- The shearing machine can carry out single shearing and automatic continuous shearing.
- The gap between the edges of upper blade and lower blade can be adjusted easily and quickly with handle.
- Our numerical control hydraulic pendulum plate shearing machine is fitted with safety fence and electric interlock to ensure the safe operation.
- CNC system and position encoder constitute the closed loop control system which has the features of high response speed, high precision and good stability. This system can accurately ensure the precision of back gauge displacement. Meanwhile, numerical control system has precision compensatory function, automatic inspection function and some other additional functions.
Characteristics of QC11Y series Hydraulic Guillotine Shearing Machine
- QC11Y series hydraulic guillotine shearing machine is designed with all steel welded structure, so it has good rigidity and stability. It utilizes vibrating ageing and heat treatment process to remove internal stress.
- Our hydraulic guillotine shearing machine is equipped with advanced integrated type hydraulic system which has good reliability.
- It adopts three-point form rolling guide to eliminate the guide rail gap and improve shearing quality.
- Motorized back gauge can be finely adjusted by hand and the adjusting value can be shown on the digital display.
- The gap between blades can be adjusted with hand wheel easily and quickly.
- The four cutting edges of rectangular blades are all usable, so these blades have long service life. The shear angle can be adjusted to reduce the deformation of sheet materials.
- The top knife rest adopts inner-inclined structure to facilitate blanking and improve working precision.
- Our hydraulic guillotine shearing machine has nibbling shear function and is fitted with lighting device.
- Rear material holding device is also available and you can also choose other configurations.
Shearing Machine
Shearing machine is used to cut spirited hot ends, cold crops and scraps. It can be rotary shearing machine, scrap shearing machine, cold crop shearing machine, flying shearing machine and alligator shearing machine.
About our Shearing Machine
As a professional shearing machine manufacturer in China, Right Machinery Company can provide hydraulic pendulum plate shearing machines and hydraulic guillotine shearing machines.
Shearing machine is usually used to cut the blank of sheet materials through imposing shearing force on sheet materials with the help of movable upper blade and fixed lower blade.
We have obtained ISO9001:2000 certification and ISO9001:2008 certification, so you can feel secure in using our shearing machines.
In addition to hydraulic shearing machines, we also offer fertilizer equipment, bucket lifters, ball screw/ guiders, press brakes, etc. All of our products come with 12-month warranty. Within the warranty period, we can help install and debug the equipment, train your operators and provide maintenance service for you. The high quality of our products and our considerate service are highly approved by our customers in Singapore, Malaysia, India, Pakistan, Iran, Turkey, Egypt, Nigeria, Saudi Arabia and more.
Located in Nantong city in Jiangsu Province, we are near to highways and sea ports. This not only can help reduce your transportation cost, but also enables us to deliver your goods in time. In general, we can deliver the fertilizer equipment within 3 to 4 months after receipt your order and the rolling functional parts with 30 to 60 days after the receipt of your order.
Please contact us if you want to get more information about our shearing machines, fertilizer equipment, or other products. OEM service is also available, upon request.
Parameters of Hydraulic Pendulum Plate Shearing MachineSpecification | Shearing Thickness | Shearing Width | Shear Angle | Number of Stroke | Back Gauge Range | Main Motor Power |
mm | mm | (º) | min-1 | mm | kw | |
QC12Y-4×2500 | 4 | 2500 | 1º30' | 18 | 20~500 | 4 |
QC12Y-4×3200 | 4 | 3200 | 1º30' | 18 | 20~600 | 5.5 |
QC12Y-4×4000 | 4 | 4000 | 1º30' | 12 | 20~600 | 5.5 |
QC12Y-4×5000 | 4 | 5000 | 1º30' | 10 | 20~600 | 5.5 |
QC12Y-4×6000 | 4 | 6000 | 1º30' | 7 | 20~800 | 7.5 |
QC12Y-6×2500 | 6 | 2500 | 1º30' | 18 | 20~600 | 7.5 |
QC12Y-6×3200 | 6 | 3200 | 1º30' | 14 | 20~600 | 7.5 |
QC12Y-6×4000 | 6 | 4000 | 1º30' | 12 | 20~600 | 7.5 |
QC12Y-6×5000 | 6 | 5000 | 1º30' | 10 | 20~600 | 7.5 |
QC12Y-6×6000 | 6 | 6000 | 1º30' | 7 | 20~800 | 7.5 |
QC12Y-8×2500 | 8 | 2500 | 1º30' | 14 | 20~600 | 7.5 |
QC12Y-8×3200 | 8 | 3200 | 1º30' | 10 | 20~600 | 7.5 |
QC12Y-8×4000 | 8 | 4000 | 1º30' | 8 | 20~600 | 11 |
QC12Y-8×5000 | 8 | 5000 | 1º30' | 7 | 20~800 | 15 |
QC12Y-8×6000 | 8 | 6000 | 1º30' | 6 | 20~800 | 15 |
QC12Y-8×8000 | 8 | 8000 | 1º30' | 5 | 20~800 | 15 |
QC12Y-10×2000 | 10 | 2000 | 1º30' | 12 | 20~600 | 11 |
QC12Y-10×2500 | 10 | 2500 | 1º30' | 10 | 20~600 | 11 |
QC12Y-10×3200 | 10 | 3200 | 1º30' | 10 | 20~600 | 11 |
QC12Y-10×4000 | 10 | 4000 | 1º30' | 8 | 20~600 | 15 |
QC12Y-12×2000 | 12 | 2000 | 2º | 12 | 20~600 | 15 |
QC12Y-12×2500 | 12 | 2500 | 2º | 10 | 20~600 | 15 |
QC12Y-12×3200 | 12 | 3200 | 2º | 9 | 20~600 | 15 |
QC12Y-12×4000 | 12 | 4000 | 2º | 8 | 20~800 | 18.5 |
QC12Y-12×5000 | 12 | 5000 | 2º | 7 | 20~800 | 22 |
QC12Y-12×6000 | 12 | 6000 | 2º | 6 | 20~800 | 22 |
QC12Y-12×8000 | 12 | 8000 | 2º | 5 | 20~800 | 22 |
QC12Y-16×2500 | 16 | 2500 | 2º | 8 | 20~600 | 18.5 |
QC12Y-16×3200 | 16 | 3200 | 2º | 7 | 20~600 | 18.5 |
QC12Y-16×4000 | 16 | 4000 | 2º | 5 | 20~800 | 18.5 |
QC12Y-20×2000 | 20 | 2000 | 2º30' | 8 | 20~600 | 22 |
QC12Y-20×2500 | 20 | 2500 | 2º30' | 6 | 20~800 | 22 |
QC12Y-20×3200 | 20 | 3200 | 2º30' | 6 | 20~800 | 30 |
QC12Y-20×4000 | 20 | 4000 | 2º30' | 6 | 20~800 | 30 |
QC12Y-25×2000 | 25 | 2000 | 3º | 6 | 20~800 | 30 |
QC12Y-25×2500 | 25 | 2500 | 3º | 6 | 20~800 | 30 |
QC12Y-25×3200 | 25 | 3200 | 3º | 6 | 20~800 | 37 |
QC12Y-30×2500 | 30 | 2500 | 3º30' | 6 | 20~800 | 37 |
QC12Y-30×3200 | 30 | 3200 | 3º30' | 5 | 20~800 | 45 |
QC12Y-40×2500 | 40 | 2500 | 3º30' | 5 | 20~800 | 45 |
QC12Y-40×3200 | 40 | 3200 | 3º30' | 5 | 20~800 | 55 |
QC12Y-50×3000 | 50 | 3000 | 3º30' | 5 | 20~800 | 75 |
QC12Y-60×4000 | 60 | 4000 | 3º30' | 5 | 20~800 | 90 |
Specification | Shearing Thickness | Shearing Width | Number of Stroke | Back Gauge Range | Shear Angle | Throat Depth | Main Motor Power | Overall Dimensions |
mm | mm | min-1 | mm | (º) | mm | kw | mm(L×W×H) | |
4×2500 | 4 | 2500 | 25-45 | 600 | 0.5-1.5 | 100 | 5.5 | 3000×2000×1850 |
6×2500 | 6 | 2500 | 20-45 | 750 | 0.5-1.5 | 125 | 7.5 | 3030×2075×1920 |
6×3200 | 6 | 3200 | 16-45 | 750 | 0.5-1.5 | 125 | 7.5 | 3730×2075×1970 |
6×4000 | 6 | 4000 | 14-45 | 750 | 0.5-1.5 | 125 | 7.5 | 4530×2075×2080 |
6×5000 | 6 | 5000 | 11-40 | 750 | 0.5-1.5 | 125 | 7.5 | 5530×2075×2210 |
6×6000 | 6 | 6000 | 9-36 | 750 | 0.5-1.5 | 125 | 7.5 | 6530×2075×2520 |
7×7000 | 7 | 7000 | 7-28 | 750 | 0.5-1.5 | 125 | 7.5 | 7530×2075×2830 |
8×2500 | 8 | 2500 | 20-45 | 750 | 0.5-1.5 | 125 | 7.5 | 3040×2075×1920 |
8×3200 | 8 | 3200 | 16-45 | 750 | 0.5-1.5 | 125 | 7.5 | 3740×2075×1920 |
12×2500 | 12 | 2500 | 12-35 | 1000 | 0.5-2 | 125,300 | 15 | 3110×2575×2210 |
12×3200 | 12 | 3200 | 7-35 | 1000 | 0.5-2 | 125,300 | 15 | 3810×2575×2420 |
12×4000 | 12 | 4000 | 8-35 | 1000 | 0.5-2 | 125,300 | 30 | 4610×2575×2530 |
16×2500 | 16 | 2500 | 16-40 | 1000 | 0.5-2.5 | 125,300 | 22 | 3130×2655×2200 |
16×4000 | 16 | 4000 | 12-40 | 1000 | 0.5-2.5 | 125,300 | 30 | 4630×2655×2570 |
20×2500 | 20 | 2500 | 16-40 | 1000 | 0.5-2.5 | 125,300 | 30 | 3160×2855×2300 |
20×4000 | 20 | 4000 | 12-40 | 1000 | 0.5-2.5 | 125,300 | 30 | 4660×2855×2720 |
