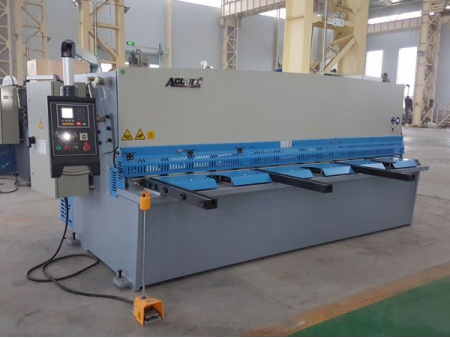

Shearing Machine
Request a Quote
| Standards | Thickness of panel | Width of panel | Number of travel | Angle of shear | A depth of larynx | Main motor power | Size |
| Unit | mm | mm | mm-1 | (°) | mm | KW | mm |
| 4×2500 | 4 | 2500 | 18-30 | 0.5-1.5 | 100 | 5.5 | 3000×2000×1850 |
| 6×2500 | 6 | 2500 | 15-25 | 0.5-1.5 | 125 | 7.5 | 3030×2075×1920 |
| 6×3200 | 6 | 3200 | 12-26 | 0.5-1.5 | 125 | 7.5 | 3730×2075×1970 |
| 6×4000 | 6 | 4000 | 12-25 | 0.5-1.5 | 125 | 7.5 | 4530×2075×2080 |
| 6×5000 | 6 | 5000 | 8-20 | 0.5-1.5 | 125 | 7.5 | 5530×2075×2210 |
| 6×6000 | 6 | 6000 | 6-18 | 0.5-1.5 | 125 | 7.5 | 6530×2075×2520 |
| 7×7000 | 7 | 7000 | 5-15 | 0.5-1.5 | 125 | 11 | 7530×2075×2830 |
| 8×2500 | 8 | 2500 | 10-22 | 0.5-1.5 | 125 | 7.5 | 3040×2075×1920 |
| 8×3200 | 8 | 3200 | 10-20 | 0.5-1.5 | 125 | 7.5 | 3745×2075×1920 |
| 12×2500 | 12 | 2500 | 8-20 | 0.5-2 | 125 | 15 | 3110×2575×2210 |
| 12×3200 | 12 | 3200 | 6-18 | 0.5-2 | 125 | 18.5 | 4100×2200×2500 |
| 12×4000 | 12 | 4000 | 6-15 | 0.5-2 | 125 | 22 | 4900×2200×2500 |
| 16×2500 | 16 | 2500 | 8-20 | 0.5-2.5 | 125 | 22 | 3130×2655×2200 |
| 16×4000 | 16 | 4000 | 5-15 | 0.5-2.5 | 125 | 30 | 4950×2200×2600 |
| 20×2500 | 20 | 2500 | 6-18 | 0.5-2.5 | 125 | 30 | 3160×2855×2300 |
| 20×4000 | 20 | 4000 | 5-15 | 0.5-2.5 | 125 | 37 | 5100×2300×2700 |
