Hydraulic CNC Shearing Machine
Request a Quote
The QC12K series of hydraulic CNC shearing machines are high performance metalworking machinery. The shearing equipment can adjust blade gap by CNC with an easy to use system that lets you make precise adjustments in order to get the perfect cut every time.
Features
- Estun E200S user-friendly controller
- Durable steel blades
- Front support arm and side gauge
- Hydraulic gap adjustment
- Laser guided cutting
- Angle gauge
- Easy installation and training
- Front curtain for finger protection
- Durable choice for precise cutting operations
Sheet Metal Cutting Solutions based on Your Needs
ACCURL CNC Shears are designed to meet all of your fabricating needs when fast and flexible cuts are necessary. Metal fabrication equipment such as this can increase your production output as well as improve the quality of your metal fabrications.
Delem DAC310 CNC System - Optional Controller
- User- friendly
- Monochrome 130 x75mm LCD Box Panel
- Cutting gap control
- Programmed material types
- Backgauge control and retract function
- Easy configuration and operation
- Rapid data input using an ergonomic keyboard with large keys.
Improved features
- Blade gap and cutting length are automatically adjusted based on material type and thickness
- Language selection
- Protected microprocessor
- Data recorded with internal SRAM memory
- Upgradable using flash memory (RS 232).
- Numerically programmable axis data.
- 16 input and output ports (24-32 options).
- mm/inch conversion
- EASYCUT page
Superior cutting settings
- Backgauge adjustment according to blade gap.
- Backgauge retraction feature.
- Sub-program and programming loop.
- Sequence repeat function.
- Auto cutting (Flying cut).
Specifications
| Model(DC/MS7) | QC12K-4 × 2500 | QC12K-4 × 3200 | QC12K-4 × 4000 | QC12K-6 × 2500 | QC12K-6 × 3200 | QC12K-6 × 4000 | QC12K-6 × 6000 | |
| Cutting Thickness | mm | 4 | 4 | 4 | 6 | 6 | 6 | 6 |
| Cutting Length | mm | 2500 | 3200 | 4000 | 2500 | 3200 | 4000 | 6000 |
| Cutting Angle | ° | 1 ° 30' | 1 ° 30' | 1 ° 30' | 1 ° 30' | 1 ° 30' | 1 ° 30' | 1 ° 30' |
| SPM | min-1 | ≥ 22 | ≥ 18 | ≥ 12 | ≥ 16 | ≥ 12 | ≥ 10 | ≥ 7 |
| Back Gauge | mm | 20-600 | 20-600 | 20-600 | 20-600 | 20-600 | 20-800 | 20-800 |
| Throat Depth | mm | 85 | 85 | 85 | 145 | 145 | 145 | 140 |
| Main Motor | kW | 5.5 | 5.5 | 5.5 | 7.5 | 7.5 | 7.5 | 11 |
| Net Weight | kg | 3460 | 4280 | 6600 | 5140 | 6220 | 8520 | 17000 |
| Outline Size (L × W × H) | mm | 3100 × 1430 × 1450 | 3800 × 1555 × 1500 | 4600 × 1705 × 1600 | 3150 × 1500 × 1600 | 3850 × 1600 × 1620 | 4650 × 1850 × 1700 | 6780 × 2450 × 2100 |
| Model(DC/MS7) | QC12K-8 × 2500 | QC12K-8 × 3200 | QC12K-8 × 4000 | QC12K-8 × 5000 | QC12K-8 × 6000 | QC12K-12 × 2500 | QC12K-12 × 3200 | |
| Cutting Thickness | mm | 8 | 8 | 8 | 8 | 8 | 12 | 12 |
| Cutting Length | mm | 2500 | 4000 | 3200 | 5000 | 6000 | 2500 | 3200 |
| Cutting Angle | ° | 1 ° 30' | 1 ° 30' | 1 ° 30' | 1 ° 30' | 1 ° 16' | 2 ° | 2 ° |
| SPM | min-1 | ≥ 12 | ≥ 10 | ≥ 10 | ≥ 8 | ≥ 6 | ≥ 10 | ≥ 9 |
| Back Gauge | mm | 20-600 | 20-600 | 20-600 | 20-800 | 20-800 | 20-800 | 20-800 |
| Throat Depth | mm | 145 | 145 | 145 | 300 | 300 | 300 | 300 |
| Main Motor | kW | 11 | 11 | 11 | 18.5 | 18.5 | 18.5 | 18.5 |
| Net Weight | kg | 5900 | 10200 | 7360 | 18000 | 21800 | 9000 | 10700 |
| Outline Size (L × W × H) | mm | 3180 × 1680 × 1700 | 3880 × 1830 × 1720 | 4680 × 1980 × 1780 | 5855 × 2260 × 2100 | 6880 × 2260 × 2100 | 3300 × 2030 × 1840 | 4000 × 2100 × 1940 |

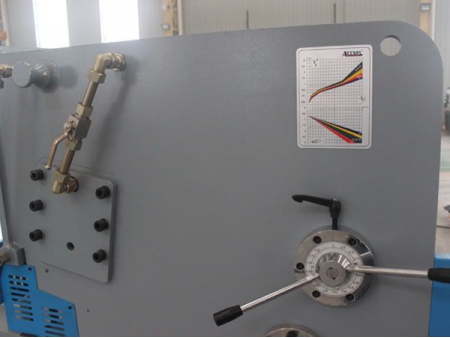

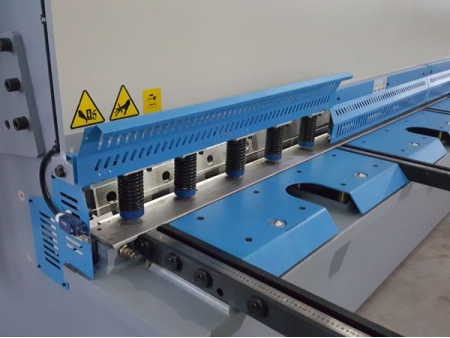

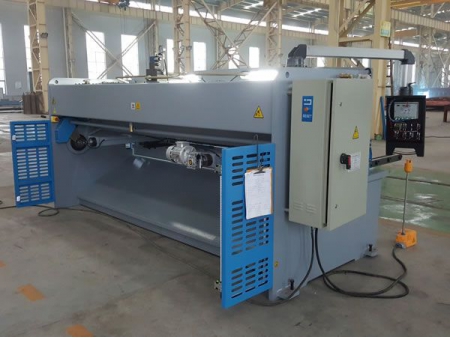

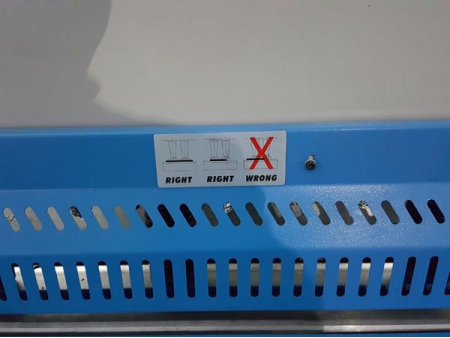

Detailed Pictures
