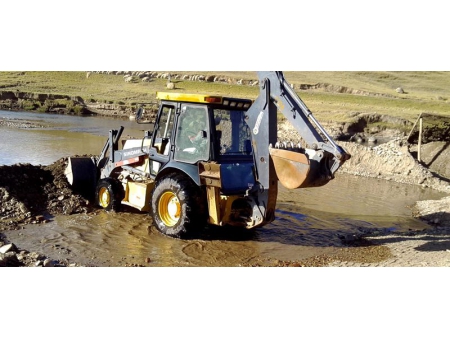

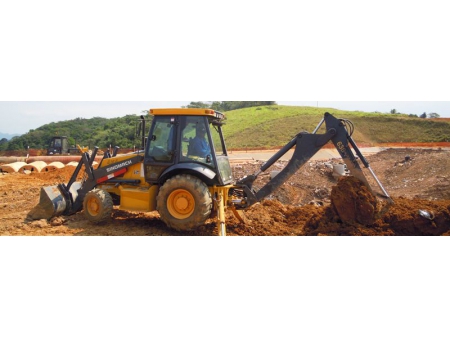

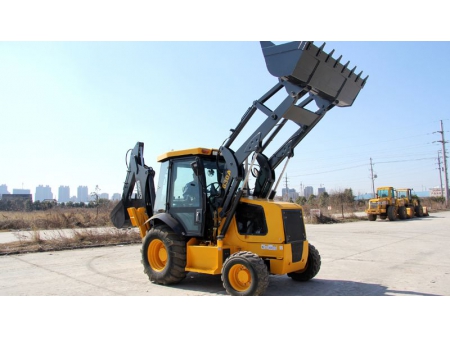

630 Backhoe Loader
Request a Quote
Features of Backhoe Loader 630:
- Equipped with reliable genuine Cummins engine
- 4 forward & 4 reverse synchromesh mechanical shift transmission
- Combined seal cylinder obtains high seal performance and more reliability
- Improved loader and backhoe performance
Consulting Products Information
- CARRARO wet type rear axle with multi-disc brake& CARRARO front axle
- New-type cab with more space, increases comfort and visibility
- With 2 wheel driving or 4 wheel driving for option
Specifications of Backhoe Loader 630:
| Model | 630 |
| Diesel Engine | Cummins 4BTA3.9-C110 |
| Cummins B4.5 | |
| Front Type | 12.5-16NHS-12PR(4WD)/11L-16F3-12PR(2WD) |
| Reort Type | Rear tire size 19.5L-24R4-12PR |
| Rated Power | 82/74kW |
| Rated Speed | 2200rpm |
| Rated Loading bucket capacity | 1m³ |
| Rated load | 1700kg |
| Max.dumping reach | 845mm |
| Max.dumping clearance | 2714mm |
| Max. loading breakout force | ＞60kN |
| Rated digging bucket capacity | 0.3m³ |
| Max. digging depth | 4405mm |
| Max. digging force | 50±10%kN |
| Max. digging radius | 5481mm |
| Max. dumping height | 3737mm |
| Hydraulic system | 110L |
| Fuel tank | 151L |
| Transmission | 18.5L |
