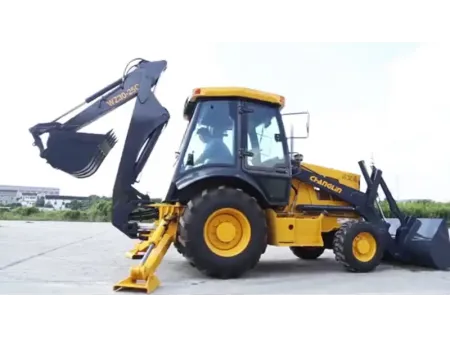

WZC20 Backhoe Loader

Request a Quote

View All: http://changlinglobal.com/6-1-backhoe-loader.html

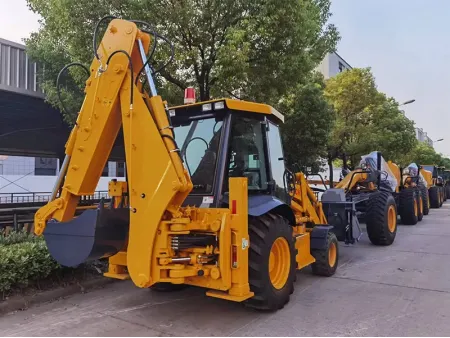

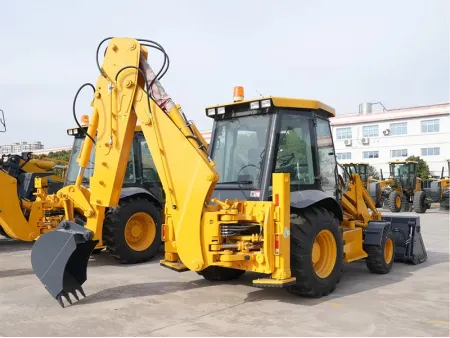

Designed with an H-shaped stabilizer frame, this backhoe loader features two parallel sets of support legs at the front and rear, connected by a transverse crossbar. This configuration enhances structural rigidity and overall stability, especially on flat or moderately uneven ground. The compact layout of the stabilizers minimizes the machine’s working footprint, making it ideal for urban road maintenance where space is limited and traffic disruption must be minimized. Its rigid frame ensures firm support even on hardened pavement surfaces, delivering reliable performance in municipal operations.

Length (with bucket on ground) 5835 mm
Operating weight 8000 kg
Rated bucket capacity 1.0 m³

Technical Specifications

Overall Dimensions

Length (with bucket on ground) 5835mm
Overall width (at stabilizer) 2240mm
Load bucket width 2313mm
Height (to the top of the cab) 2720mm
Height (to the top of the digging arm) 3548mm
Wheel base 2155.5mm
Rear wheel track width 1700mm
Front wheel track width 1880mm
Min. ground clearance 355mm for 2WD; 275mm for 4WD

Loading Parameters

Rated load 1700kg
Operating weight 8000kg
Rated bucket capacity 1.0m³
Max. dump clearance 2714mm
Dump reach 845mm
Max. lifting capability 3400kg
Min. turning radius Outside of bucket 5280mm for 2WD
5670mm for 4WD
Min. turning radius Center of front wheel 3795mm for 2WD
4380mm for 4WD
Max. load breakout force >60kN

Digging Parameters

Rated digging bucket capacity 0.2m³
Arm and Boom Standard Telescopic
Max. digging depth 4405mm 4370-5540mm
Max. digging radius 5390mm 5420-6525mm
Max. dumping height 3510mm 3570-4310mm
Central offset 550mm
Max. digging force >56.1 10％kN(bucket)
Max. drawing force 70kN (4WD)
