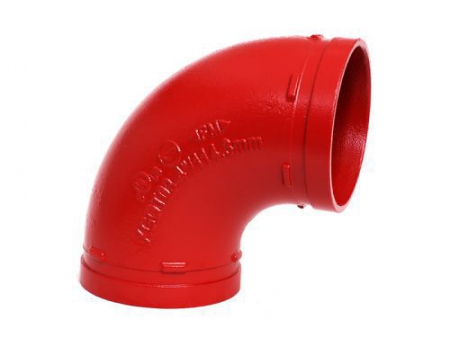

Grooved long radius 90° elbow is used for connecting two pipes with the same size to make the pipeline turn 90 degrees for changing in flow direction. This elbow also adapts sizes or components.

Recommended Applications

Grooved long radius 90° elbow is suitable for indoor heating systems, sewage treatment systems, oil and gas transmission pipeline systems, etc.

Key Specifications
  • Available sizes: 1 inch~12 inch |DN25~DN300
  • Working pressure: 300PSI/2.07MPa
  • Certificate: FM / UL /CE certified
  • Coating: epoxy /galvanized
  • Color: red/orange/white etc.
Specifications

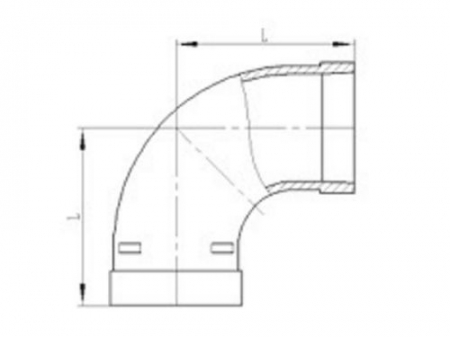

Nominal Size Pipe OD Dimensions
mm/in mm/in mm
25 / 1 33.7 / 1.327 57 / 2.24
32 / 1 1/4 42.4 / 1.669 60 / 2.36
40 / 1 1/2 48.3 / 1.9 60 / 2.36
50 / 2 60.3 / 2.375 70 / 2.76
65 / 2 1/2 73 / 2.875 76 / 2.99
65 / 2 1/2 76.1 / 3 76 / 2.99
80 / 3 88.9 / 3.5 80 / 3.15
100 / 4 108 / 4.25 102 / 4.02
100 / 4 114.3 / 4.5 96 / 3.78
125 / 5 133 / 5.25 121 / 4.76
125 / 5 139.7 / 5.5 121 / 4.76
125 / 5 141.3 / 5.563 121 / 4.76
150 / 6 159 / 6.25 140 / 5.51
150 / 6 165.1 / 6.5 122 / 4.8
150 / 6 168.3 / 6.625 140 / 5.51
200 / 8 219.1 / 8.625 150 / 5.91
250 / 10 273 / 10.75 215 / 8.46
300 / 12 323.9 / 12.75 245 / 9.65
