Metal Great Wall Panels

Request a Quote

Website: http://bltbuilding.com/5-10-concealed-fastener-metal-wall-panels.html

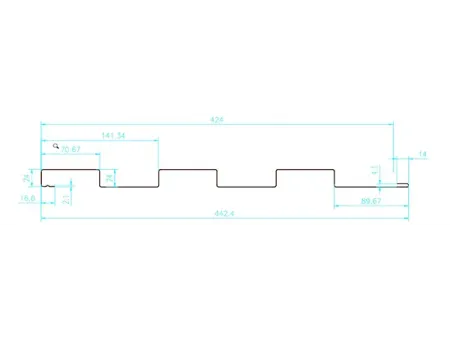

YX24-70.67-425

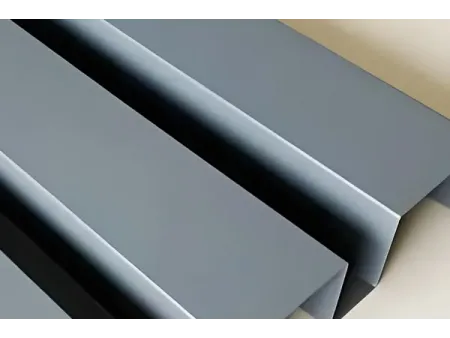

24mm depth×425mm width batten profile cladding sheets for facades or exterior walls of various types of buildings

Effective cover width: 425mm
Overall width of sheet: 600mm
Thickness: 0.4mm-1.0mm
Length: Customizable
Material: Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet

Batten profile cladding sheets combine strength with a lightweight build, which allows easier transport and installation without compromising reliability. The concealed fastening keeps the surface free of visible screws, giving the façade a clean and continuous look. The box-shaped ribs give the façade a defined, modern look and improve drainage when placed vertically. Made from corrosion-resistant alloy, the panels hold up well against weather and need very little maintenance, while the finish options allow architects to adapt them to different styles.

Applications

Suitable for industrial facilities, commercial buildings, hotels, offices, and exhibition halls; especially, for projects that require durability and a refined architectural style.

Specifications

Model	YX24-70.67-425
Effective cover width	425mm
Overall width of sheet	600mm
Thickness	0.4mm-1.0mm
Length	Customizable
Type of cladding	Concealed fastener wall panel
Installation	Horizontal installation, vertical installation
Material	Al-Mg-Mn alloy sheet, pre-painted steel sheet, stainless steel sheet, titanium zinc sheet
Metal sheet suppliers	Baosteel, BlueScope, Yieh Phui, Wah Tung, Alliance Steel, etc.
Color	Standard color custom color
Surface coating	PE/HDP/PVDF, etc.
Lifespan	At least 50 years
Applications	Architectural cladding for walls and roofs
Mounting accessories included	A full range of shear studs, self-tapping screws, clamps, etc.
Remarks	1. Professional installation guidance is available to ensure proper assembly 2. Other sizes or customized designs can be provided upon request

Features

The concealed fastening system keeps screws out of sight, giving façades a clean and continuous appearance.
A box-rib profile adds depth and definition to the surface, enhancing the overall architectural design.
When installed vertically, the ribbed structure channels water efficiently and improves weather protection.
Panels are produced with corrosion-resistant alloy materials that provide durability, fire resistance, and long service life.
The batten cladding sheets are lightweight, they’re easier to move and install, and with different finishes and colors available, architects can adapt them to a wide variety of design needs.
