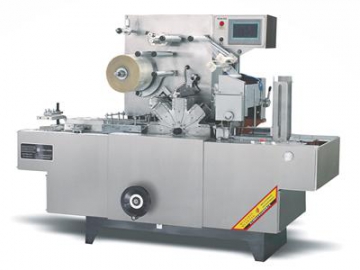

Overwrapping Machine, Type BT-400C-I
The BT-400C-I automatic packaging cellophane overwrapper uses environmentally friendly OPP or BOPP thin film for packaging hard cartons in a variety of specifications. It carries out organization, packing, heat sealing and counting of cartons. This is done while automatically applying tear tape with anti-counterfeit for easy opening that give the package an excellent moisture and pollution resistance, without sacrificing the easy to use structure.
Application:
The automatic packaging cellophane overwrapper is suitable for the wrapping of pharmaceutical products, health care products, daily cosmetics, cigarettes, tea leaves, food and other large-scale or middle-scale boxed items.
| Productivity | 12-35 packs/min |
| Packing dimensions range | (10-400)×(50-300)×(30-120)mm |
| Power supply | 220V 50Hz |
| Motor power | 0.75kw |
| Power during electric heating | 4kw |
| Dimensions | 2200×935×1960mm |
| Conveyor belt | 1800×500×150mm |
| Weight | 1000kg |
| Packing range | A single item or a bundle |
- The BT-400C-I automatic packaging cellophane overwrapper uses a cam to drive the connecting rod transmission mechanism. The cam is both reliable and durable.
- It uses a stepless variable frequency conversion technology, and is equipped with a fully automatic PLC control system, in order to achieve heat sealing, reshaping, automatic temperature control and automatic feeding.
- The touch screen displays a number of functions, including program settings, control operation, tracking display, final counting, emergency stop and more.
- It is equipped with a front feeding conveyor belt, which makes it easy to assemble the packing line using front end equipment.
- Within a designated range, multiple packing specifications in one machine can be set and adjusted, saving the customer money.
- The equipment features a dual transition between manual and automated control, which customers can choose from based on their needs.
WISELY offers a wide range of pharmaceutical machinery like capsule filling machines, tablet polishers, and pharma packaging machines. The company was founded in 1992 and is a member of the China Association for Pharmaceutical Equipment. We participate in continuous development and have many patents for technologies used in our capsule fillers. We provide customers with high quality pharmaceutical and medical equipment all over the world.
