Large Carton Cellophane Overwrapping Machine
Carton wrapping machine for packaging carton box with BOPP film

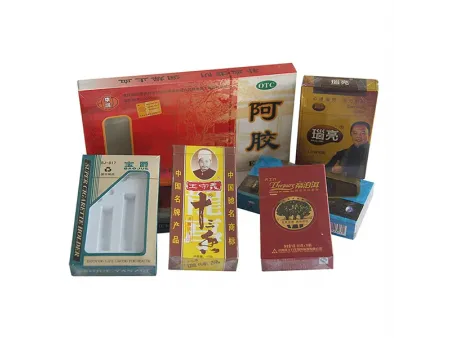

Designed for versatility and efficiency, the large carton cellophane overwrapping machine is an essential tool for businesses looking to improve their packaging process. The overwrapper wraps large carton boxes using BOPP film and can easily integrates with various production lines. It is perfect for both individual large box items and collective blister packs of smaller boxes, each enhanced with a gold easy-tear tape for added security and aesthetic appearance.
Ideal for industries requiring secure, efficient, and attractive packaging, our large carton overwrapping machine guarantees that products are well-protected and presented appealingly. From pharmaceuticals and cosmetics to food items, the overwrapping machine maintains high standards of quality and operation.
| Model | LQ-BTB-400 |
| Packing Material | BOPP film and gold tear tape |
| Packing Speed | 25-40 packs/min (depending on box size) |
| Max. Package Size | (L)300×(W)200×(H)100mm |
| Power Supply | 220V, 50Hz, 5.5kW |
| Weight | 800kg |
| Overall Dimensions | (L)2400×(W)1200×(H)1800mm |
- Changing molds is quick and easy, with no need to adjust worktop heights or disassemble discharge chains and hoppers. This reduces mold replacement time from four hours to just 30 minutes
- Innovative double safeguard mechanisms prevent damage to spare parts if the carton wrapping machine runs out of step, so there’s no need to stop the overwrapper, ensuring continuous operation

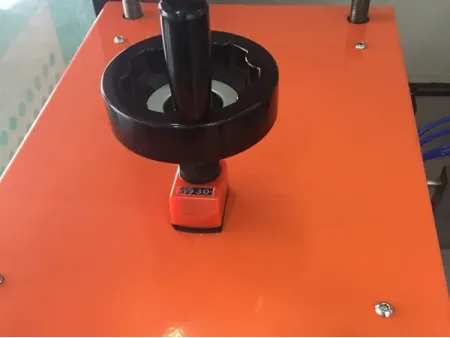

- The unilateral hand swing device prevents the wrapping equipment from shaking, while the hand wheel stays stationary during operation, enhancing operator safety.
- A servo motor and stable air pump ensure that the film falls smoothly and eliminates static interference, making the wrapping process efficient.
- The touch screen and high-quality imported electrical components provide an intuitive man-machine interface for easy programming, operation control, tracking display, box overload protection, and automatic stopping in case of failures.
- This carton overwrapper handles assembling, stacking, wrapping, sealing, and shaping of packages, providing a streamlined packaging solution.
- The platform and components that come into contact with the product are made from high-quality, non-toxic stainless steel (1Cr18Ni9Ti), meeting GMP standards for pharmaceutical production.
- Combining mechanical, electrical, pneumatic, and instrumentation technologies, this overwrapper offers a compact, attractive, and ultra-quiet packaging solution.
