Automatic Tube Filling & Sealing Machine
Automatic tube filler sealer machine integrating tube loading, dosing, and hermetic closing for filling viscous products into plastic/aluminum/laminated tubes
The automatic tube filling and sealing machine is suitable for various tube materials and sealing techniques. Integrated with auto tube feeding, precise filling and firm sealing, this tube filler and sealer provides professional sealing and protection for a wide range of products.
This automatic tube filling & sealing machine with internal heating is specifically engineered for plastic and composite tubes, utilizing advanced internal hot air heating technology to achieve firm and aesthetically pleasing professional seals.
The tube filling/sealing equipment integrates a complete automated workflow, encompassing automatic tube loading, precise filling, sealing, and date coding. Equipped with a PLC touch screen control system, it ensures convenient parameters adjustment and highly stable, efficient performance. The automatic filler and sealer is ideal for the cosmetic, pharmaceutical, and food industries, significantly enhancing both packaging quality and overall production capacity for the production line.
- Installed with internal hot air heating device to achieve firm seals and intact tube surface, ensuring the consistent and stable tube sealing quality via intelligent temperature control.
- High-precision ±0.2mm photoelectric detection automatically corrects tube orientation to ensure accurate artwork alignment.
- The automatic tube filling and sealing machine integrates drip-free filling, automatic coding and precise tube tail trimming into a single process, ensuring neat and standardized packaging.
| Filling Volume | 50-270ml/unit (Adjustable) |
| Filling Accuracy | ≦±1﹪ |
| Capacity | 2400-3000unit/hour, Adjustable |
| Tube Diameter | Φ25-50 mm |
| Tube Length | 50-200mm |
| Hopper Volume | 40L |
| Power | 380V/220V (Optional) |
| Air Pressure | 0.4-0.6 MPa |
| Equipped Motor Power | 1.1KW |
| Machine Power | 5kw |
| Inner Wind Motor Power | 0.37kw |
| Dimension | 1950×760×1850 (mm) |
| Weight | About 750 Kg |
- Automatic Tube Loading System
Is made by 304 stainless steel with coated surface to provide a robust structure and durable performance.
- Bi-Directional Trimming Cutter
Utilizes 304 stainless steel construction for tube end finishing, providing a smooth, clean cut without burrs.

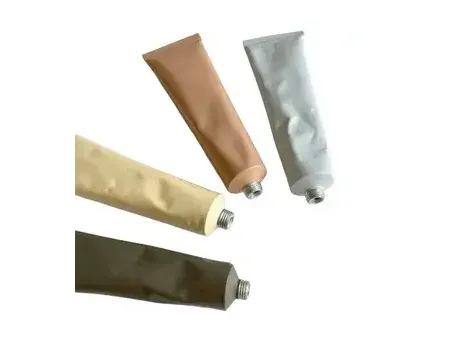

This aluminum tube filling and sealing machine is designed for aluminum tube packaging applications, integrating auto tube loading, precise filling, and firm sealing and auto coding. The photoelectric positioning and PLC touch screen control system enable high-accuracy control and stable production. The tube end sealing unit has optimized its design to better adapt to aluminum tubes and provide aesthetic and reliable sealing quality. The tube filler is constructed by stainless steel, complies with food and medical sanitary standards. Its filling precision is up to ±1% and production capacity is up to 1200~1800 pieces per hour, ideal for aluminum tube packaging in cosmetics, medicine and food industry.
- Multiple mechanical folding and pressing ensure a flat and secure tail seal, with options for double, triple, or quadruple folding.
- Equipped with multiple safety mechanisms: “No Tube, No Filling”, overload protection, photoelectric detection and safety door interlock (door-open stop)
- Featuring 304/316L stainless steel machine frame, can be easily integrated with tube feeding and mixing equipment for continuous production.
| Model | |
| Power Supply | 220V/ 380V double voltage |
| Power | 5KW |
| Filling Range | 0-500g |
| Applicable Tubes | Metal Tube, Aluminum Tube |
| Working capacity | 20-30pcs/minute (Tube size and folding method all have an effect.) |
| Weight | 380kg |
| Dimension | 1600*900*1800mm |
| HS code | 8422303090 |
- Efficient Turntable with 16 Working Stations
Integrates multiple tube end folding techniques to deliver faster, more flexible and more stable tube filling and sealing.
- Intelligent Photoelectric Detection
Allow for precise tube mark identification and ensure accurate tube tail positioning.
The ultrasonic tube filling machine employs the ultrasonic sealing technology to achieve secure and clean tube end seals without pre-heating, suitable for viscous products like lotion, cream and gel. The tube filler/sealer is equipped with PLC touch screen operation system facilitates easy changeover for tubes of different diameters. Stainless steel machine constructure conforms to GMP and CE standard. The filling and sealing equipment support customization of tube diameter, filling volume, and sealing strength, catering to both mass production and diversified requirements while ensuring consistent quality for every product.
- Ultrasonic sealing technique achieves fast, firm and flat tube end seals without pre-heating, while maintaining a defective rate lower than 1%.
- The ultrasonic filling machine utilizes a high-precision cam indexing mechanism with 10 synchronized stations, ensuring accurate positioning and stable operation.
| Model | |
| Sealing Type | ultrasonic sealing |
| Control | By PLC |
| Measurement Method | Pneumatic piston pump |
| Measurement Pump Range | 30-250ml; |
| Capacity | 20-25Tubes/min |
| Tube Size | Dia:16-50mm Height: Max.200mm |
| Total Power | 2600W |
| Voltage | 220V 60HZ 1P |
| Weight | 400Kg |
| Dimension | L1630*W1380*H1720mm |
| Contact Parts Material | Stainless steel 304 |
| Machine Material | Contact material: SS30All screws exposed: SS304 |
- 304/316 Stainless Steel Homogenizing Hopper
Features intelligent level control to ensure consistent material uniformity, resulting in highly precise and stable filling.
- Automatic Tube Sorting Hopper
Delivers precise orientation correction and stable, jam-free feeding to ensure continuous, high-efficiency operation.
- Discharge Station
Automatically ejects and reorients finished tubes for seamless integration with labeling and cartoning processes, enabling efficient and continuous tube packaging process
