RC-C Medical Imaging
Dental imaging system for detailed imaging of teeth
Portable Dental X-Ray Machine
Request a Quote

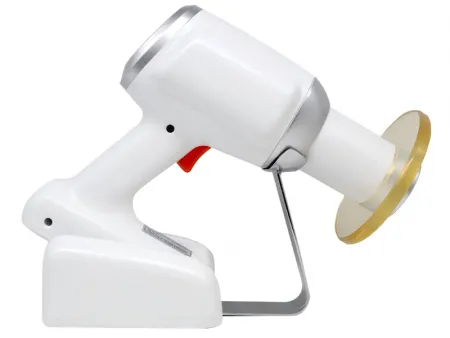

The handheld dental X-ray unit is a DC high-frequency portable X-ray machine designed for detailed dental imaging. With its compact size and lightweight design, it is easy to handle and transport while emitting minimal radiation.
A manual button on the outer shell ensures simple and convenient operation. All components are mounted on a central PC board, and its insulated vacuum and sealed structure provide enhanced durability and protection, making it a reliable choice for dental diagnostics.
Specifications
- Tube voltage: 60kV tube current: 2 mA
- Exposure time: 0.1-2s frequency: 30 kHz
- Tube focus: 0.3×0.3 mm
- The distance from skin to cone: 130 mm
- Battery: DC14.8V 6400 mAh
- Rated power: 60 VA
- Charger input voltage: AC 100 V - 240 V±10%
- Output power: DC 16.8 V
- Ambient temperature: 5-40ºC
- Relative humidity: Less than 75% RH

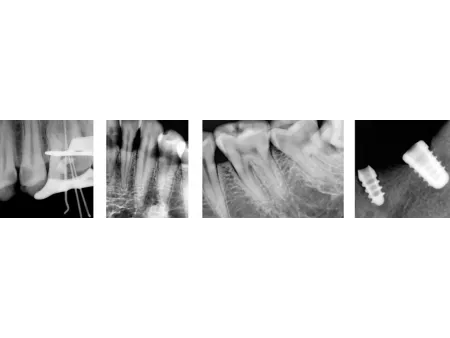

X-Ray Imaging
Applications
The portable dental X-ray machine is ideal for pre-treatment diagnostics, providing detailed imaging of internal structures and root depth, making it an essential tool for daily dental practice. It is particularly suited for dental implant procedures, ensuring accurate assessments before surgery. With a long-lasting battery, a full charge allows for approximately 500 exposures, and the battery supports 1,000 charge cycles over its lifetime. The system is also compatible with intraoral digital X-ray imaging systems, offering seamless integration into your dental workflow.

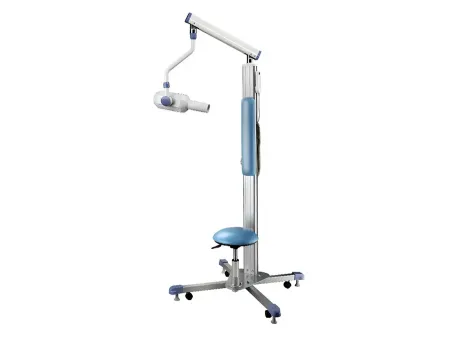

The mobile dental X-ray unit is designed for convenient and precise dental imaging, offering seamless mobility and easy operation. Equipped with an integrated chair, it provides optimal positioning for patient comfort and stability during imaging procedures. Its compact and ergonomic design makes it an excellent choice for dental clinics looking for flexibility and efficiency.
Specifications
- Focal Spot Size: 0.8 mm
- Anode Angle: 19 degrees
- Connection: Coaxial plug, also capable of horizontal rotation
- Tube Voltage: 70 kV
- Anode Current: 7 mA
- Duty Cycle: 1/60
- Inherent Filtration: ≥2.1 mm AL
- Half-Value Layer: 1.6 mm AL at 70 kVp
- Leakage Radiation: Less than 0.007 mGy/h at 1 meter distance

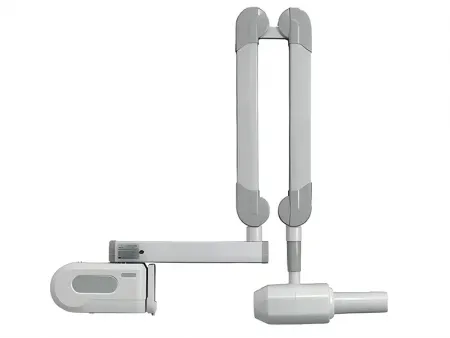

The wall-mounted dental X-ray unit is designed for fixed and space-saving installation, providing stable and high-quality imaging for dental diagnostics. Its wall-mounted structure ensures efficient positioning, making it an ideal choice for dental clinics looking for a reliable and easy-to-use imaging solution.
Specifications
- Rated Voltage: 70 kV
- Tube Current: 7 mA
- Focal Spot Size: 0.7 mm
- Power Supply: Supports 220V AC
- Radiation Leakage: < 0.007 mGy/h
- Circular Output Section: Focus-to-skin distance of 20 cm

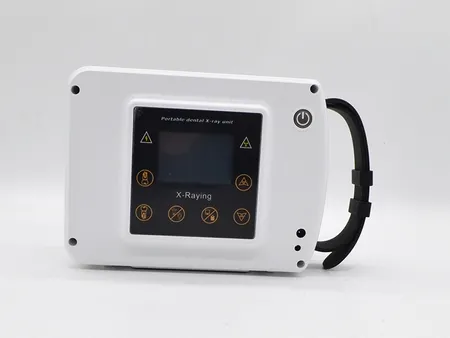

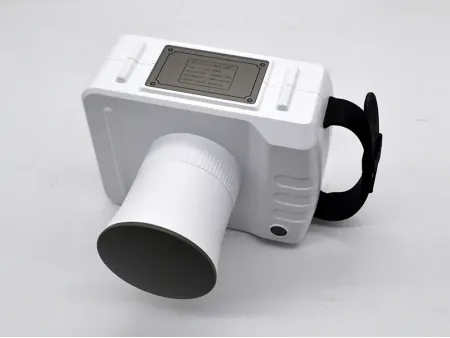

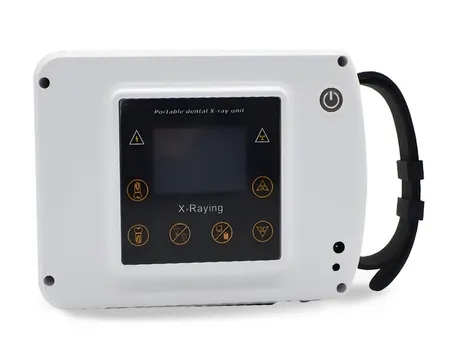

The handheld dental X-ray unit is a high-frequency device designed for portable and efficient dental imaging. With its compact size and lightweight design, it is easy to use and transport, while emitting minimal radiation for safer operation.
Delivering excellent image quality and portable storage, this unit saves space while ensuring high diagnostic accuracy. It operates on a high-frequency DC international power supply, providing stable and consistent performance.
All components are centrally installed on the PC board, offering shock resistance and durability. This handheld dental X-ray features insulated vacuum-sealed protection, enhancing safety and reliability in dental diagnostics.
Specifications
- Tube voltage: 60 kV
- Tube current: 2 mA
- Exposure time: 0.1-2.0 s
- Frequency: 30 kHz
- Rate power: 120 VA
- Distance from skin to cone: 150 mm
- Tube focus: 0.4×0.4 mm
- Battery: 1550 mAh
- Charger input voltage: AC 110 V-240 V
- Output voltage: DC 14.8 V-16.8 V
- Ambient temperature: 5℃ - 40℃
- Relative temperature: < 75% RH
- Net weight: 1.7 kg
- Gross weight: 4.0 kg
- Size (mm): 276×125×235
- Package size (mm): 420×185×350
Applications
This unit is primarily used for pre-treatment dental diagnostics, providing detailed insights into internal tissue structure and root depth. It is an essential tool for daily dental practice, particularly well-suited for dental implant procedures. Additionally, it can be easily connected to sensors, enhancing efficiency and convenience in clinical applications.

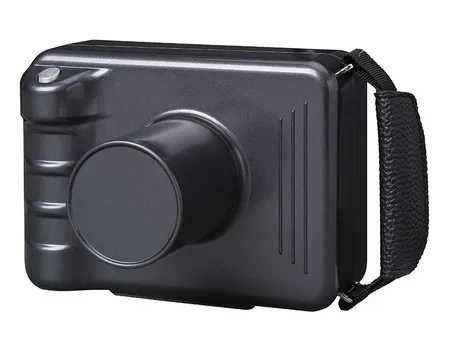

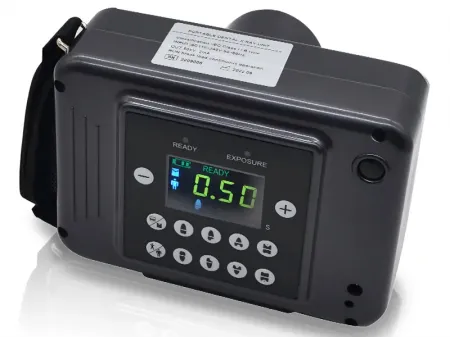

The handheld dental X-ray unit is a DC high-frequency portable X-ray device designed for compactness, lightweight handling, and minimal radiation exposure.
A manual button on the outer shell ensures simple and convenient operation. All components are centrally installed on the PC board, while the insulated vacuum-sealed structure provides enhanced durability and protection, making it a reliable choice for dental diagnostics.
Specifications
- Tube Voltage: 60 kV
- Tube Current: 2 mA
- Exposure Time: 0.1 – 2.0 s
- Frequency: 30 kHz
- Rated Power: 60 VA
- Distance from Skin to Cone: 130 mm
- Tube Focus: 0.4 × 0.4 mm
- Battery: DC 14.8V, 2200 mAh
- Output Voltage: DC 16.8 V
Applications
This handheld dental X-ray unit is ideal for pre-treatment dental diagnostics, providing detailed imaging of internal structures and root depth. As an essential tool for daily dental practice, it is particularly well-suited for dental implant procedures, ensuring accurate assessments before surgery.
With a long-lasting battery, a full charge allows for approximately 500 exposures, and the battery supports 1,000 charge cycles over its lifetime. It is also compatible with intraoral digital X-ray imaging systems, offering seamless integration into your dental workflow.
Looking for a portable dental X-ray system that offers convenience and precision? Contact us today to find the right solution for your clinic!
