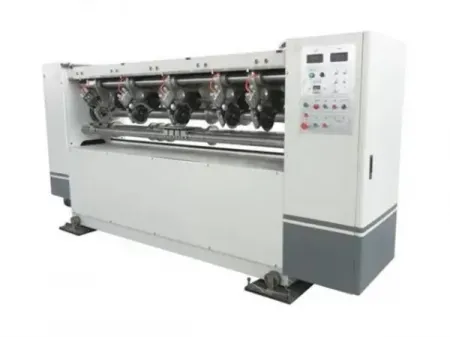

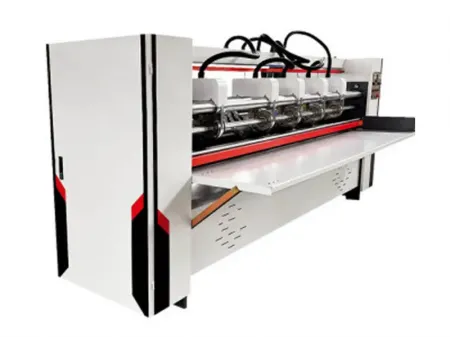

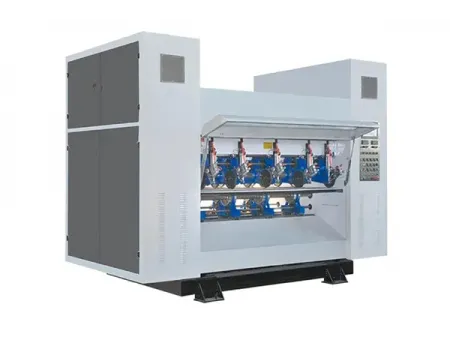

Blade Slitter Scorer
The blade slitter scorer features the process sequences such as sheet feeding, slitting, prepressing and creasing, and equipped with the lower paper roller, it can thus adapt to a variety of carton's demands of slitting and creasing.
The blade is self-adjusted and is controlled by electricity. The time can be set according to the production conditions, and semi-automatic and full automatic operation are optional.
The shield is lifted by the gas strut. After lifting the shield, the alarm lamp and the work light are turned on, lighting the work site at night.
Model | BFY-2000 |
Applicable cardboard width(mm) | 1980 |
Applicable cardboard speed(m/min) | 141 |
Number of paper dividers | 4 |
Min cutting width(mm) | 160 |
Min creasing width(mm) | 200 |
External diameter of the blade(mm ) | 260 |
Blade thickness(mm) | 1 |
Motor Power(kw) | 4 |
Machine Weight(kg) | 3000 |
Dimensions(mm) | 2890*1460*1500 |
Model | BFY-2500 |
Applicable cardboard width(mm) | 2450 |
Applicable cardboard speed(m/min) | 141 |
Number of paper dividers | 4 |
Min cutting width(mm) | 160 |
Min creasing width(mm) | 200 |
External diameter of the blade(mm) | 260 |
Blade thickness(mm) | 1 |
Motor Power(kw) | 4 |
Machine weight(kg) | 3500 |
Dimensions(mm) | 3310*1460*1530 |
Model | BFY-3000 |
Applicable cardboard width(mm) | 2950 |
Applicable cardboard speed(m/min) | 141 |
Number of paper dividers | 4 |
Min cutting width(mm) | 160 |
Min creasing width(mm) | 200 |
External diameter of the blade(mm) | 260 |
Blade thickness(mm) | 1 |
Motor Power(kw) | 5 |
Machine Weight(kg ) | 4000 |
Dimensions(mm) | 3810*1460*1530 |
Besides the corrugated carton making equipment, Jiufeng company also provide blade slitter scorer for carton machines, and as we provide complete corrugated cardboard box machine line, including corrugated cardboard printer, cardboard cutter, cardboard folder and gluer with plenty of experience since 1996, we are sure to offer customers high quality corrugated carton equipment and corrugated cardboard solutions for customers.
