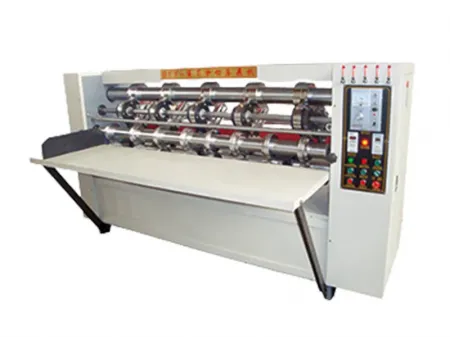

Thin Blade Slitter Scorer Machine
The thin blade slitter scorer machine, designed for standalone use, enhances precision and efficiency in cardboard processing. Unlike integrated models confined to corrugated production lines, this slitting scoring machine excels in delivering smooth and accurate slitting and scoring across various cardboard applications, ensuring high-quality results for packaging solutions.
Features
- Utilizes pre-creasing for feeding and dual rubber rollers for guiding, ensuring stable paperboard movement
- Equipped with high-quality tungsten steel blades that are sharp and durable, providing clean, burr-free cuts without impressions
- Features five-point scoring with synchronized distance adjustments, maintaining flat and easily bendable cardboard sheets
- Electric controls for lifting and correcting alignment make it easy to operate and suitable for diverse requirements
- Incorporates well-known Chinese or imported electrical components, guaranteeing reliable performance
| Model | |||||
| Machine dimensions (mm) | 2600×750× 1400 | 2900×750× 1400 | 3200×750× 1400 | 3400×800× 1400 | 3700×800× 1400 |
| Power (kW) | 4 | 4 | 4 | 4 | 5.5 |
| Max. slitting width (mm) | 1800 | 2100 | 2300 | 2500 | 2800 |
| Min. slitting width (mm) | 140 | 140 | |||
| Min. slitting length (mm) | 435 | 460 | |||
| Min. scoring width (mm) | 80 | 80 | |||
| Scoring height (mm) | 0-10 | 0-12 | |||
| Blade (mm) | ⌀200×122×1.2 | ⌀200×122×1.2 | |||
| Blade & scoring combination type | 4 slitting blades & 6 Scoring lines 5 slitting blades & 8 scoring lines | ||||
Features
- The slitter scorer uses pre-creasing for feeding and dual rubber rollers for guiding, ensuring stable paperboard movement throughout the process
- High-quality tungsten steel blades are used to provide sharp, durable cuts that are clean and burr-free
- Features a five-point scoring system with synchronized distance adjustments, maintaining flat and easily bendable cardboard sheets
- Equipped with electric controls for lifting and alignment correction, making operation simple and suitable for various requirements
- Uses reputable Chinese or imported electrical components, ensuring reliable and consistent performance
| Model | ||||
| Machine dimensions (mm) | 2600×750×1400 | 2900×750×1400 | 3100×750×1400 | |
| Power (kW) | 3.0 | 4.0 | 4.0 | |
| Max. slitting width (mm) | Inverse blade | 1900 | 2200 | 2300 |
| Positive blade | 1800 | 2100 | 2200 | |
| Min. slitting width (mm) | Inverse blade | 305 | 305 | 305 |
| Positive blade | 140 | 140 | 140 | |
| Min. slitting length (mm) | 435 | 435 | 435 | |
| Min. scoring width (mm) | Positive scoring | 30 | 30 | 30 |
| Inverse scoring | 80 | 80 | 80 | |
| Scoring height (mm) | 0-10 | 0-10 | 0-10 | |
| Blade (mm) | ⌀200×122×1.2 | ⌀200×122×1.2 | ⌀200×122×1.2 | |
| Blade & scoring combination type | 3 slitting blade & 4 scoring lines 4 slitting blade & 6 scoring lines 5 slitting blade & 8 scoring lines | |||

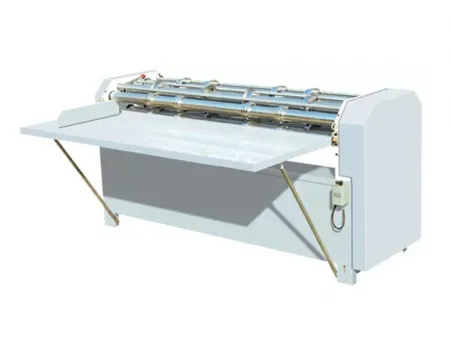

Designed to enhance the production process, this manual slitter scorer efficiently handles slitting and rewinding of corrugated boards. It's an essential tool for various industries such as packaging, printing, shoemaking, and electronics, ensuring high-quality results with minimal effort.
Independently performing slitting and rewinding, the slitter scorer features a high-quality seamless steel tubing shaft for exceptional wear resistance and longevity. Its versatile molds allow for three-time scoring and two-time pre-pressing, accommodating various grades of cardboard.
| Model | Sheet width (mm) | Sheet thickness (mm) | Speed (m/min) | Machine dimensions (L×W×H) (mm) | Weight (kg) |
| 1750 | 10 | 180 | 2200×700×1050 | 1100 | |
| 1950 | 10 | 180 | 2400×700×1050 | 1300 | |
| 2150 | 10 | 180 | 2600×700×1050 | 1500 | |
| 2450 | 10 | 180 | 2900×700×1050 | 1800 |
