Slitter Scorer
Slitting and scoring machine used in corrugator line for processing corrugated board

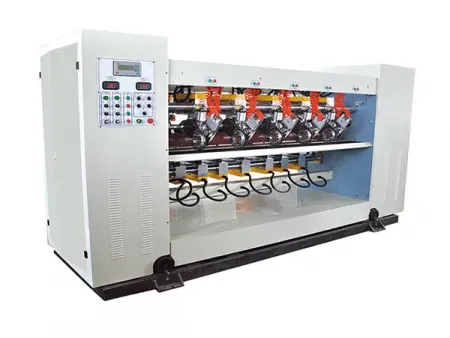

This thin blade slitter scorer is perfect for slitting and scoring corrugated boards of different dimensions. Its blade and scoring composed type comes in configurations such as three blades with four scorers, four blades with six scorers, and five blades with eight scorers.
Features
- Utilizes high-speed thin blades to achieve clean and smooth cuts on the corrugated board, enhancing the quality of the final product
- Equipped with an electric axial displacement system, it aligns the paper accurately during printing, preventing any misalignment and ensuring precision
- Features an automatic blade sharpening system that operates during production, allowing for continuous operation without stopping. The sharpening intervals and duration can be adjusted based on the material and trimming conditions, controlled pneumatically
- Manual adjustment for board specifications is straightforward and practical, making it easy for operators to use and enhancing overall efficiency
Specifications
Model | |||
Machine dimensions (mm) | 3200×1100×2200 | 3500×1100×2200 | 3800×1100×2200 |
Power (kW) | 5.5/7.6 | 5.5/7.6 | 5.5/7.6 |
Max. slitting width (mm) | 1800 | 2100 | 2300 |
Min. slitting width (mm) | 140 | ||
Min. scoring width (mm) | 80 | ||
Scoring height (mm) | 0-12 | ||
Blade (OD×ID×thickness) (mm) | ⌀200×⌀122×H 1.2 |

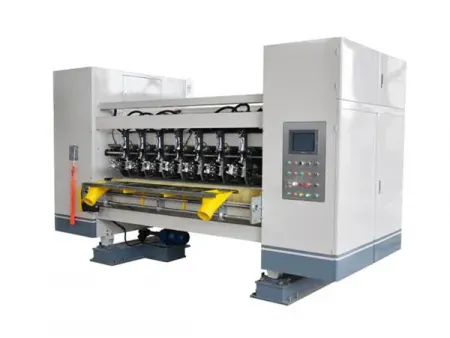

The lifting type slitter scorer is engineered to enhance the efficiency and quality of corrugated board production. This slitting scoring machine adjusts the height of the blade shafts to prevent paperboard from falling or piling up, ensuring smooth operation and high-quality cuts.
Features
- Uses high-quality tungsten steel blades that are sharp and durable, providing clean, precise cuts without creases or burrs
- Equipped with a five-point scoring system, which adjusts synchronously to ensure that the board remains flat and does not bend easily
- Features both automatic and manual blade sharpening options, allowing for continuous operation and improved efficiency
- Electric lifting and correction mechanisms make the slitter scorer easy to operate and suitable for various requirements
- The use of synchronous belt transmission reduces noise and ensures stable performance
- By using two identical machines in parallel, the switching time is minimized, thereby increasing overall production efficiency
- The production line can operate at speeds of up to 150 meters per minute, ensuring high throughput
Specifications
Model | ||||
Machine dimensions (mm) | 3200×1200×2200 | 3500×1200×2200 | 3700×1200×2200 | |
Power (kW) | 8.5 | 8.5 | 8.5 | |
Max. slitting width (mm) | Inverse blade | 1800 | 2100 | 2400 |
Positive blade | 1800 | 2100 | 2400 | |
Min. slitting width (mm) | Inverse blade | 140 | 140 | 140 |
Positive blade | 140 | 140 | 140 | |
Min. scoring width (mm) | Inverse scoring | 80 | 80 | 80 |
Positive scoring | 30 | 30 | 30 | |
Scoring height (mm) | 0-10 | 0-10 | 0-10 | |
Blade (OD×ID×thickness) (mm) | ⌀200×122×1.2 | ⌀200×122×1.2 | ⌀200×122×1.2 | |
Blade & scoring combination type | 3 slitting blade & 4 scoring lines 4 slitting blade & 6 scoring lines 5 slitting blade & 8 scoring lines |
This slitting scoring machine can switch orders within 3-8 seconds. Using two machines simultaneously allows for sequence changes without reducing speed.
Features
- The slitter scorer detects the production line's speed and adjusts its operation accordingly, ensuring smooth and consistent slitting and scoring
- Equipped with a high-quality industrial computer and PLC, forming the Hypnym-Hyponym computer control system for optimal performance
- Offers three scoring types: convex to convex, convex to concave, and convex to flat, with automatic adjustment of scoring gaps for clean, easy-to-fold lines
- Equipped with thin tungsten steel alloy blades that are sharp and long-lasting, capable of processing over 8 million meters of material
- Features a computer-controlled automatic blade sharpening system that can also be operated manually, allowing for continuous operation and increased efficiency
- Fitted with high-precision synchronous belts to ensure low noise and stable performance
- Capable of storing up to 999 orders, allowing for automatic or manual order changes without stopping production.
Specifications
Model | JLF-1800 |
Max. slitting width (mm) | 1800 |
Min. slitting width (mm) | 140 |
Min. scoring width (mm) | 135 |
Scoring height (mm) | 0-12 |
Design speed (m/min) | 250 |
Blade (OD×ID×thickness) (mm) | ⌀200×122×1.2 |
Blade & scoring combination type | 5 slitting blade & 8 scoring lines |
Power (kW) | 7.9 |
Machine dimensions (L×W×H) (mm) | 3500×1200×2000 |
