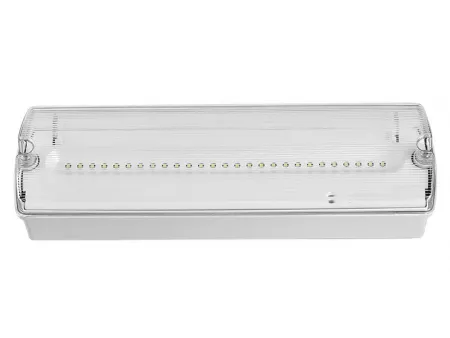

AD500 IP65 Waterproof LED Emergency Bulkhead
Request a Quote
Bulkhead Emergency Light
- This waterproof LED emergency bulkhead is built for locations that need reliable lighting in damp or wet conditions.
- It has a clear diffuser and a robust ABS housing that help protect the fixture from splashes or dust.
- Fitted with 27 SMD2835 LEDs, delivering bright, even light during power interruptions.
- Provides up to 3 hours of emergency operation to support safe evacuation.
- The diffuser surface can display self-adhesive markings to identify exits or escape routes.
- Complies with IEC60598-2-22 standards to ensure performance in emergency applications.
- IP65 rating makes it a suitable choice for indoor wet areas or sheltered outdoor spaces.
Specifications
| Model | AD500 | ||
| Mode of Operation | Maintained/Non-Maintained | ||
| Light Source | 27pcs×Powerful LED (SMD3528) | ||
| Battery | 3.6V 1.5Ah Ni-Cad battery | ||
| Voltage | 220-240V 50-60Hz | ||
| Power Consumption | 4W | ||
| Output Voltage | 5.2V | ||
| Output Power | 1.62W | ||
| Lumen Output | 130lm | ||
| Color temperature | 5000K/6000K/6500K | ||
| Duration Optios | 3 hours | ||
| Full Charge Time | Approx. 24hours | ||
| IP grade | IP65 | ||
| Certifications | CE, ROHS, IEC, BS, GS | ||
| Product Size | 352×110×67mm | ||
| Remarks | Maintained | ||
| Ordering and Packing Information | |||
| MOQ | 1000pcs | ||
| Lead Time | 35 days | ||
| Sample Delivery Time | 3~10 days | ||
| Packing | Color box | ||
| Carton Size (L×W×H) | 38.5×33.2×38.5cm | ||
| Carton CBM | 0.049m³ | ||
| Quantity per Carton | 12pcs | ||
| Gross Weight | 8.4kgs/ctn | ||
| Net Weight | 7.4kgs/ctn | ||
| Container Loading Quantity | 1×20' | 1×40' | 1×40' HQ |
| 6735pcs | 14082pcs | 16408pcs | |
