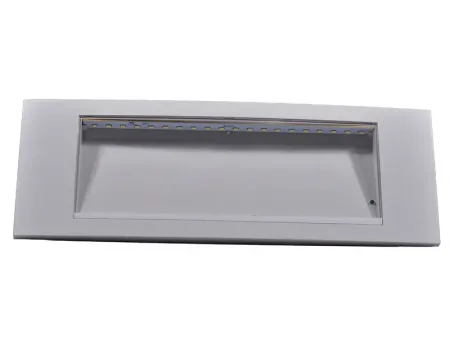

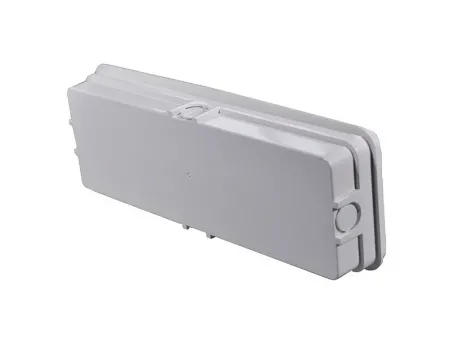

LE511 Slim LED Emergency Bulkhead
Request a Quote
Bulkhead Emergency Light
- This slim-profile LED emergency bulkhead is ideal for installations where space is limited.
- It combines an ABS base with a polycarbonate diffuser that provides reliable protection and consistent light output.
- The LED light source is positioned along the side of the housing to deliver even illumination across the surface.
- Offers up to 3 hours of emergency operation when the main power supply fails.

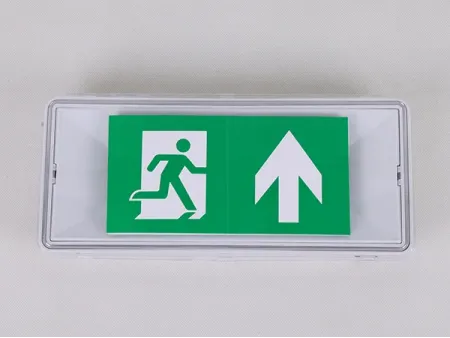

- The diffuser surface can be fitted with self-adhesive labels to mark escape routes or exit directions.
- Complies with IEC60598-2-22 standards and meets RoHS certification requirements.
- IP20 rating, suitable for indoor use in dry environments.
Specifications
| Model | LE511 | ||
| Mode of Operation | Maintained/Non-Maintained | ||
| Voltage | 220-240V 50-60Hz | ||
| Max. Power Consumption | 2.6W | ||
| Output Voltage | DC 5V±0.5V | ||
| Output Power | 0.7W | ||
| Lumen Output | 85lm | ||
| Battery | 3.6V 1000mAh Ni-Cad battery or 4V2.5AH sealed lead-acid battery | ||
| Max. Charge Current | 100mA | ||
| Max. Discharge Current | 280mA | ||
| Charging Time | 24H | ||
| Discharging Time | 3H | ||
| Lamp | SMD2835 LED×20pcs | ||
| Certifications | CE, ROHS, IEC, BS, GS | ||
| Product Size | 292×102×53mm | ||
| Remarks | Optional with recessed box | ||
| Ordering and Packing Information | |||
| MOQ | 1000pcs | ||
| Lead Time | 35 days | ||
| Sample Delivery Time | 3~10 days | ||
| Packing | Color box | ||
| Carton Size (L×W×H) | 38×32×25.5cm | ||
| Carton CBM | 0.031m³ | ||
| Quantity per Carton | 12pcs | ||
| Gross Weight | 7.6kgs/ctn | ||
| Net Weight | 7kgs/ctn | ||
| Container Loading Quantity | 1×20' | 1×40' | 1×40' HQ |
| 10645pcs | 22258pcs | 25935pcs | |
